Visual Manager User Interface
97 Network Storage Router M2402 User Guide
■ Node WWN Hi (hexadecimal)
■ Node WWN Lo (hexadecimal)
■ Map Name
Viewing and Changing Fibre Channel Map Information
To view or change current Fibre Channel map host information:
1. In the Mapping Menu screen, select the desired FC module and port.
2. Click Edit/View in the Map section of the screen.
The FC Map dialog box is displayed. Current map information is shown at the
top of the dialog box.
3. Enter the new settings and then click the appropriate action button.

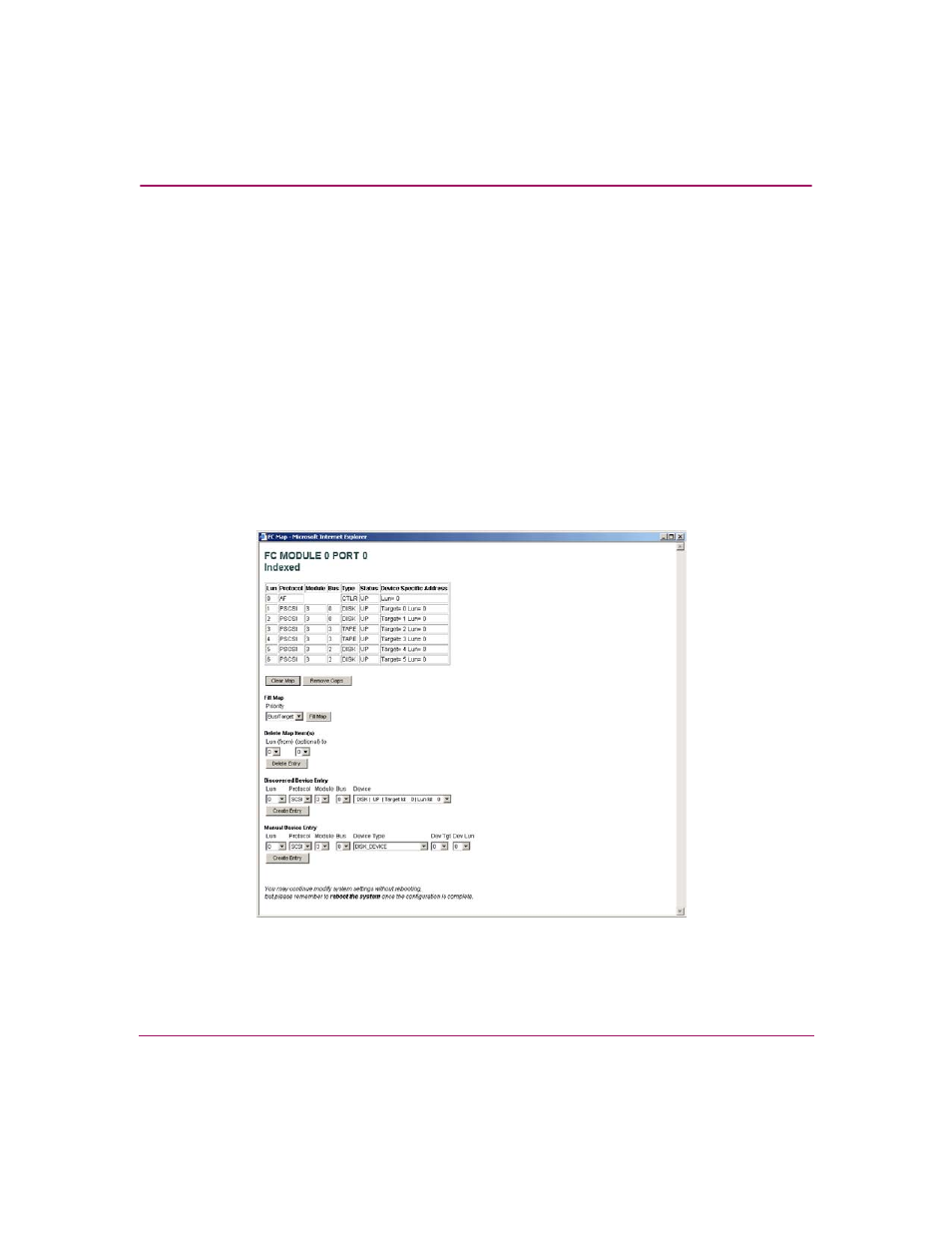

Figure 52 is an example of the Fibre Channel Map dialog box.
Figure 52: Fibre Channel Map dialog box
