Visual Manager User Interface
87 Network Storage Router M2402 User Guide
SCSI Module Configuration
When a SCSI module is selected in the Modules Menu, the SCSI Module Bus
Configuration Settings screen is displayed.
The SCSI Module Bus Configuration Settings screen is used to view and modify
SCSI module settings. The information for SCSI bus 0 is automatically displayed.
To change settings for a different SCSI bus, select the desired bus of the SCSI
module on the menu bar or on the router image (see
Figure 46 ).

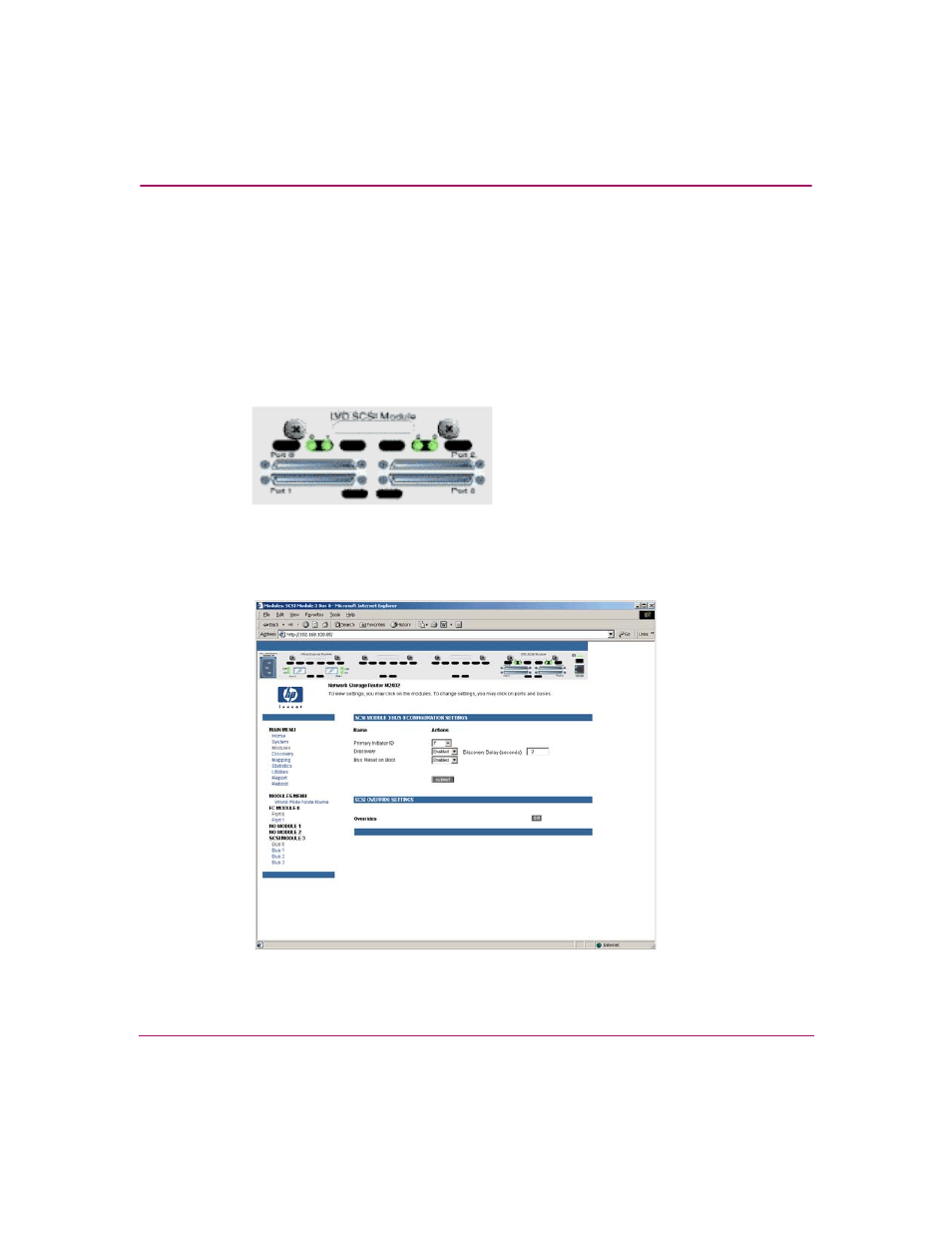

Figure 46: SCSI module image
After a bus on the SCSI module is selected, the SCSI Module Bus Configuration
Settings screen is displayed for that bus (see
Figure 47 ).
Figure 47: SCSI Module Bus Configuration Settings screen
