Serial/Telnet User Interface

171

Network Storage Router M2402 User Guide

Viewing Fibre Channel Link Information

To see link statistics for the Fibre Channel module:

1. In the Fibre Channel Status Menu, select Display Fibre Channel Link

Status (1).

The following page is displayed.

See

Table 4

for a list of term definitions.

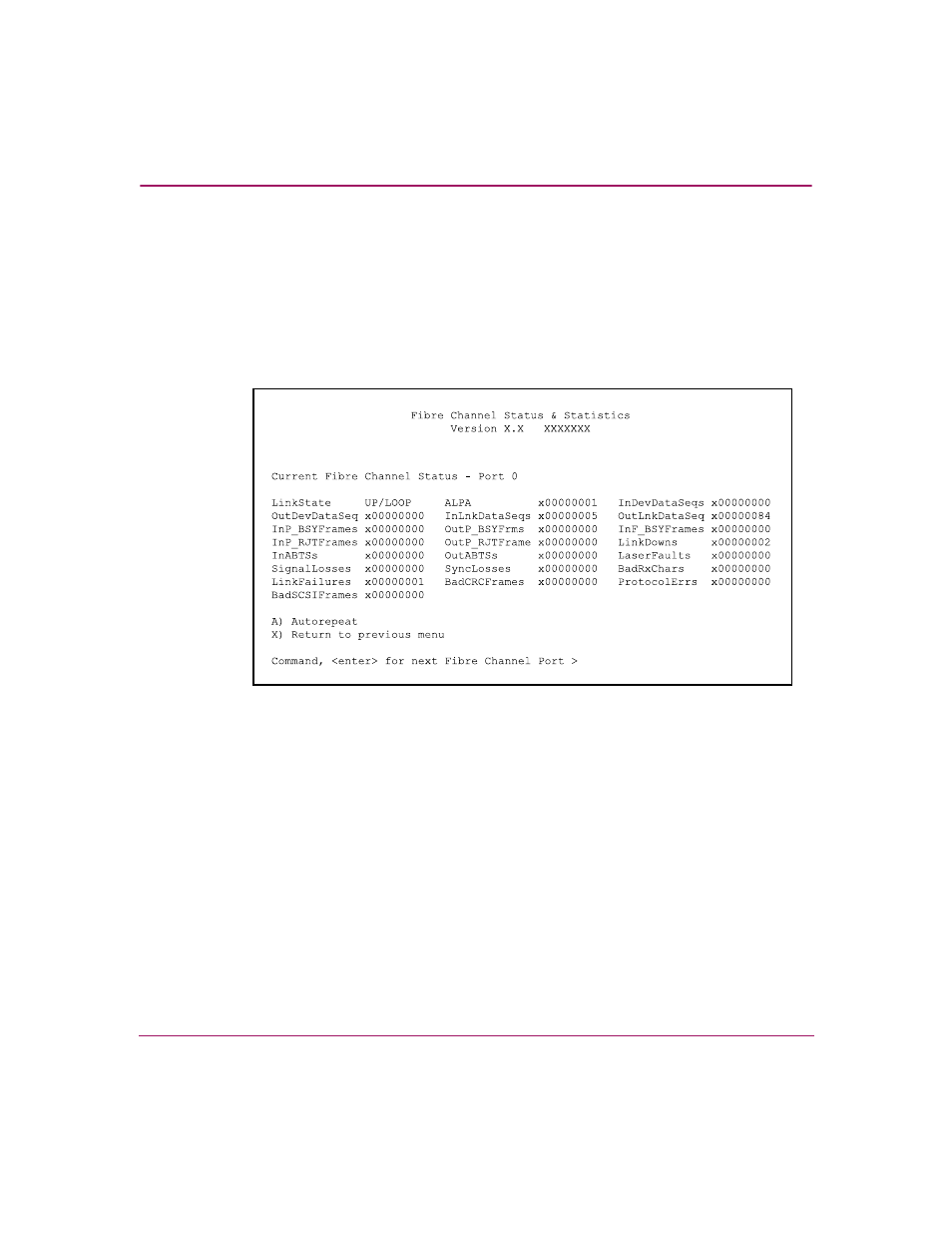

Figure 106: Fibre Channel Link Status screen

2. To view link information for the next Fibre Channel port on this module,

press Enter.

3. To refresh the screen display, select Autorepeat A).
