Page 32
Installation
38
Network Storage Router M2402 User Guide

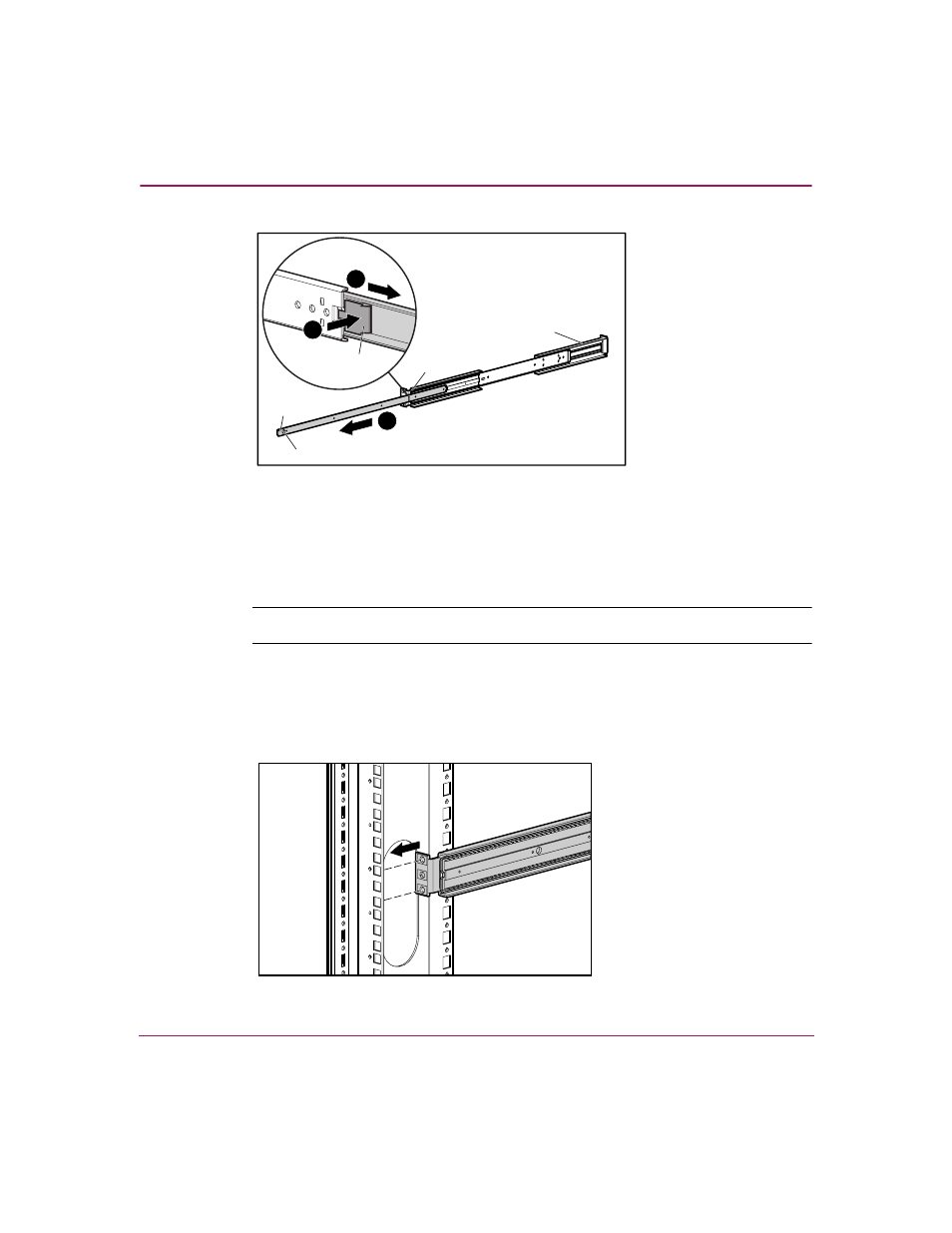

Figure 14: Separating the inner and outer rails
d. Repeat Step 3 to separate the other set of rails.
4. Attach the front-end and back-end of each outer-rail assembly to the rack.
a.
Determine the location in the rack for the router.
Note:
The size of the router and its rail assembly is 1U.
b.
Align the three screw-holes on the front-end of the outer-rail assembly
with the equally spaced holes on the front of the rack. All three holes must
be aligned exactly. If the holes do not exactly match up, the outer-rail
assembly is not positioned correctly on the rack (see
).
Figure 15: Aligning the bracket face with the rack
1
Circular Grasping Hole
View From
Opposite Side
Spring Latch
Front of Inner
Rail
Front of Outer
Rail
Extension
Bracket
2
3
