Visual Manager User Interface
93 Network Storage Router M2402 User Guide
Mapping Menu
Accessed from the Main Menu, the Mapping Menu is used to view and modify
host and map information for a FC port or SCSI bus. Maps and hosts may be
added, edited, or deleted.
The initial screen display lists all available hosts and the assigned map for the
selected FC port or SCSI bus.

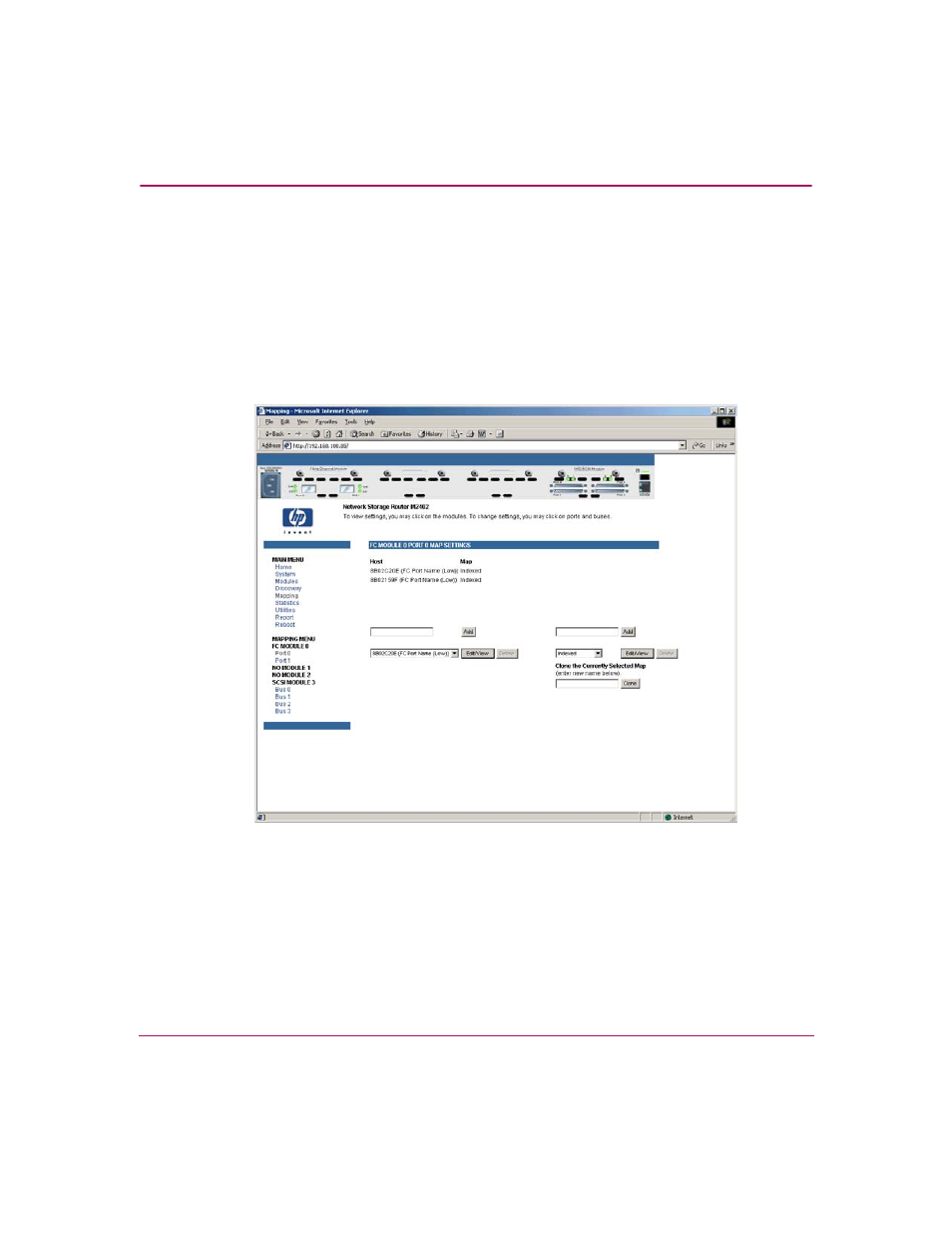

Figure 50 is an example of the initial Mapping screen.
Figure 50: Mapping screen
To view or change map settings of a specific module:
1. Select one of the module and port/bus from the menu bar on the left side of
the screen or from the router image at the top of the screen.
2. After a FC port or SCSI bus has been selected, specific mapping information
is displayed, including the name of the port, the selected host, and the
assigned map.
