Figure 23: fibre channel ports – HP Network Storage Router m2402 User Manual
Page 41
Installation
47
Network Storage Router M2402 User Guide
To connect the router to a FC storage area network (SAN):
1. Locate the FC ports on the back of the router (see

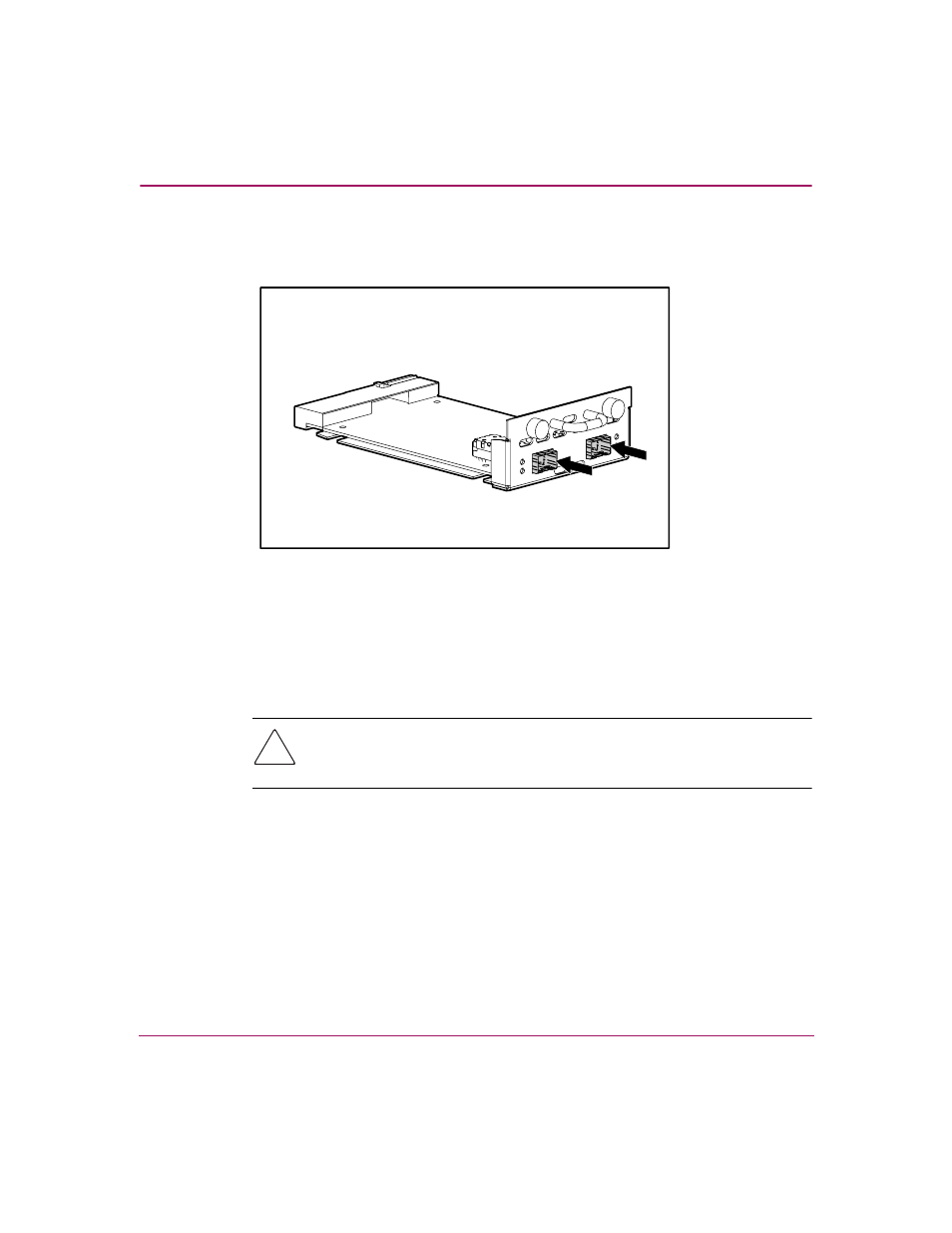

Figure 23: Fibre Channel ports
2. Remove the rubber protective inserts from the Small Form Factor Pluggables
(SFP).
3. With the router powered off, connect the router to the FC environment, using
the appropriate cabling. The FC optical connectors on the router are keyed for
proper orientation.
Caution:
The router has been qualified with a specific set of SFPs. Using an
SFP that has not been qualified by HP may cause the router to operate
improperly. See the Laser Safety section of this manual for more information.
