Visual Manager User Interface
85
Network Storage Router M2402 User Guide
■
Default Map (default: indexed) sets the current mapping mode for the
selected port.
The current map can be set to:
— Indexed (default)
— Auto-assigned contains all the SCSI devices that are attached to the
router.
— SCC
For more information about mapping modes, see
, “Addressing
Methods and Table Structures.”
For information on changing map settings, see “
■
Performance Mode (default: 1 Gb/s) toggles between 1 Gb/s and 2 Gb/s.
■
Force FCP Response Code toggles between Off and On for support of
HP-specific HBA #223180-B21 and #120186-001.
Override Settings enhance interoperability with some storage devices that require
special consideration during setup of the router configuration menus.
Caution:
If these configuration settings are incorrectly set, processing
difficulties may occur. Before changing these settings, evaluate the need for the
change and verify the desired setting. HP recommends backing up the router
configuration to an external file before making changes to this setting.
is an example of an Override Settings dialog box.

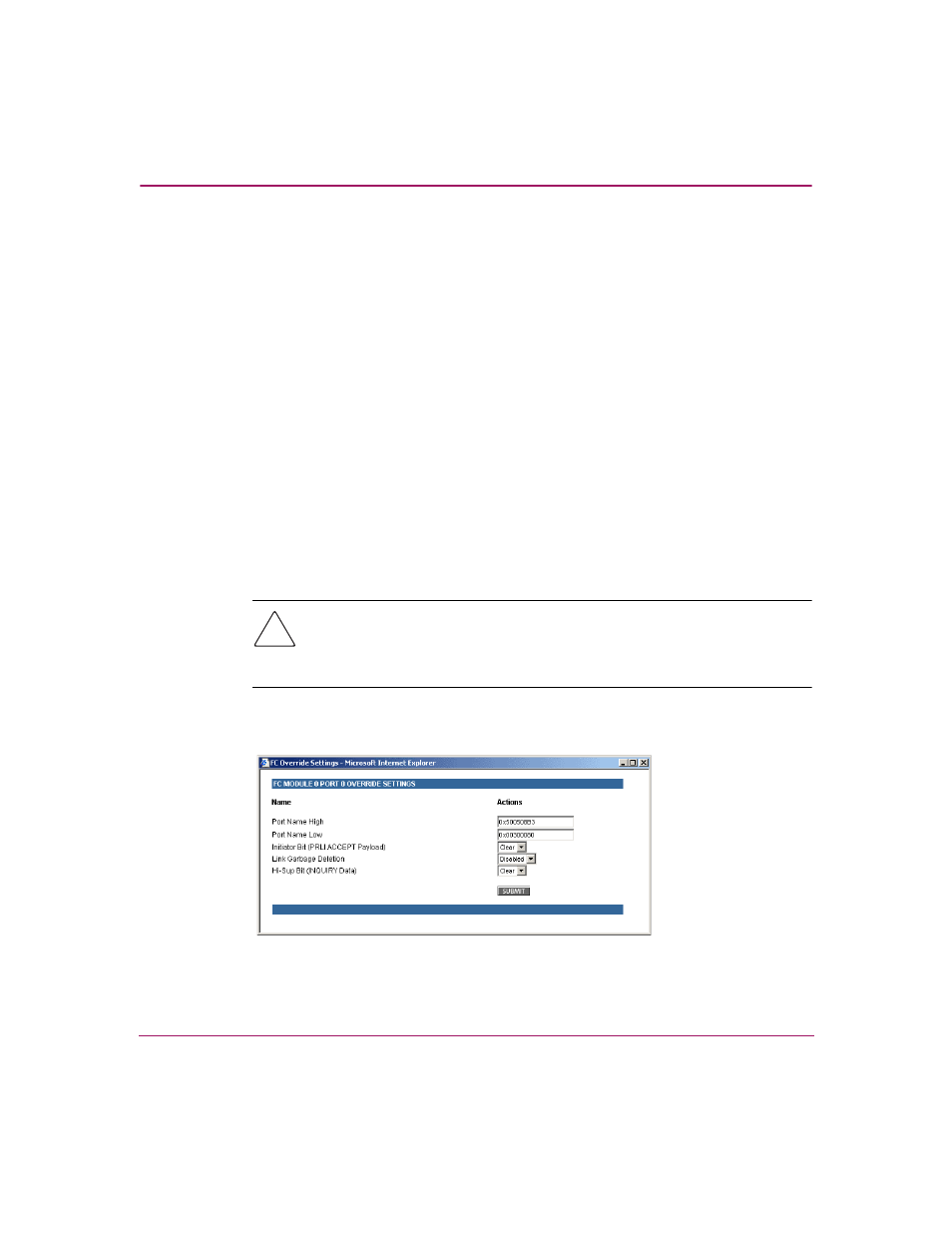

Figure 45: Override Settings dialog box
