Serial/Telnet User Interface
166 Network Storage Router M2402 User Guide
System Utility Menu
Accessed from the router main menu, the System Utility Menu is primarily used
to view system information.
To access the System Utilities Menu, in the router Main Menu, select System
Utilities (2).

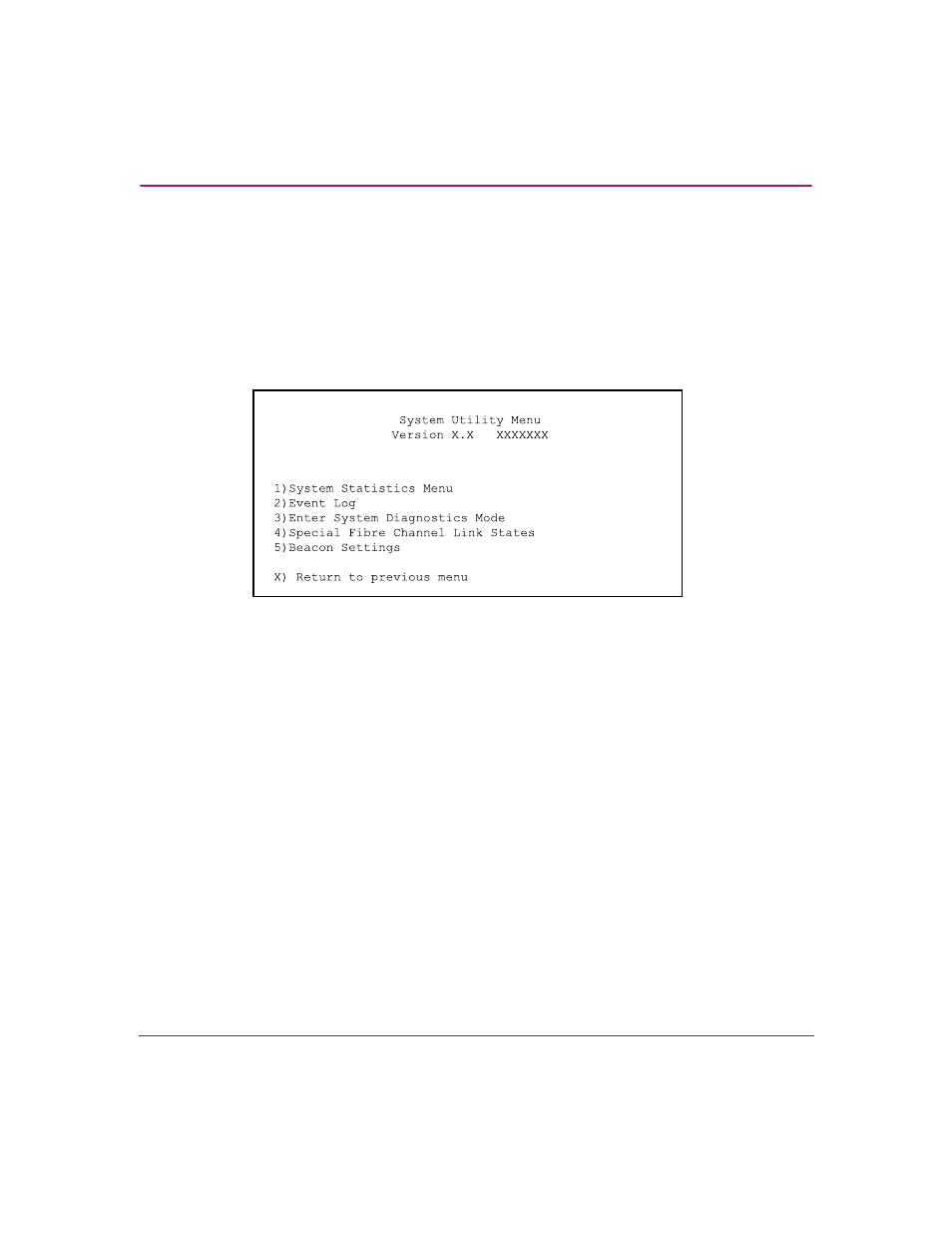

Figure 101 is an illustration of the System Utility Menu.
Figure 101: System utilities
System Utility Menu options:
■ System Statistics Menu (1) displays a variety of system status information.
■ Event Log (2) displays the system Event Log.
■ Enter System Diagnostics Mode (3) performs Ethernet, SCSI, and Fibre
Channel connection tests.
■ Special Fibre Channel Link States (4) (This option is a special diagnostic
utility used only by authorized service technicians.)
■ Beacon Settings (5) enables or disables the Beacon LED signal.
Each System Utility Menu option is discussed in a separate section.
