KROHNE OPTIMASS with MFC 300 EN - Manual (Page 58)

58

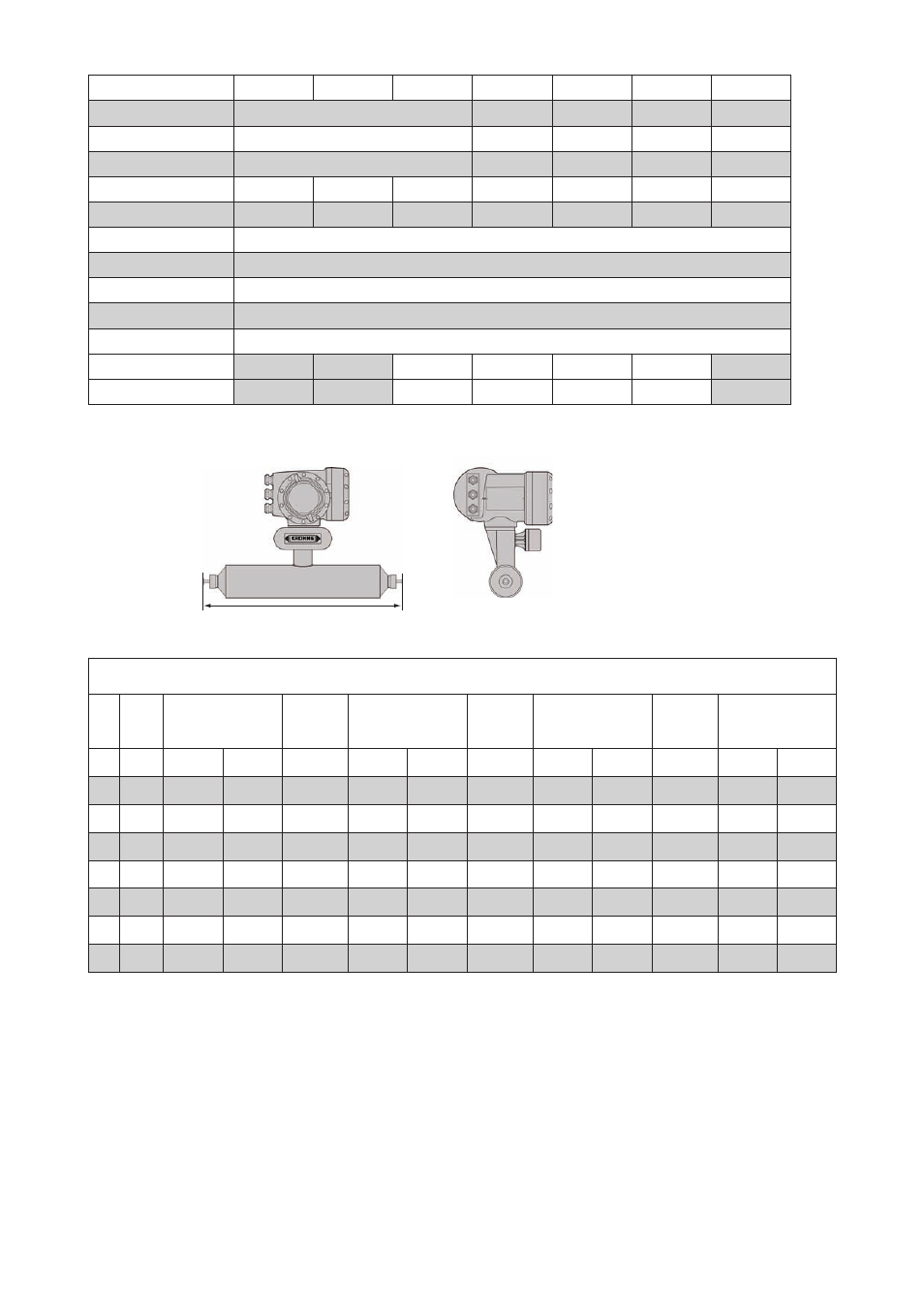

Hygienic versions
D
Imperial (inches) S/T 06 S/T/H 10 S/T/H 15 S/T/H 25 S/T/H 40 S/T/H 50 S/T/H 80
A 4 4.5 6.7 8.7 10.8
B1 12.2 12.5 13.6 14.6 15.6
B2 9.1 ±0.08 9.3 ±0.08 10.4 ±0.08 11.4 ±0.08 12.5 ±0.16
D (std flange) 16.5 ±0.08 20.1 ±0.08 21.6 ±0.08 27.6 ±0.08 36.4 ±0.08 43.3 ±0.08 57.5 ±0.16
D (ASME flange 600 lbs) 16.9 ±0.08 20.4 ±0.08 21.9 ±0.08 27.9 ±0.08 36.7 ±0.08 43.7 ±0.08 57.8 ±0.08
E 6.3
F 2.4
G 3.9
H 4.9
I 5.4
Tantalum A15 A25 A40 A50
D (std flange) 25 ±0.08 31.5 ±0.08 42.3 ±0.08 50.4 ±0.08
Hygienic connections: all welded versions
Tri-
Clover
D
Tri-Clamp
DIN 32676
D
Tri-Clamp
ISO 2852
D
Tongue &
groove DIN
11864
D
mm inches mm inches mm inches mm inches
06 ½” 480 ±2 18.9 ±0.08 DN10 484 ±2 19 ±0.08 - - - - - -
10 ½” 558 ±2 22 ±0.08 DN10 564 ±2 22.2 ±0.08 - - - DN10 528 ±2 20.8 ±0.08
15 ¾" 596 ±2 23.5 ±0.08 DN15 602 ±2 23.7 ±0.08 - - - DN15 566 ±2 22.3 ±0.08
25 1½” 816 ±2 32.1 ±0.08 DN25 761 ±2 30 ±0.08 1½” 816 ±2 32.2 ±0.08 DN25 718 ±2 28.3 ±0.08
40 2” 1043 ±2 41 ±0.08 DN40 986 ±2 38.8 ±0.08 2” 1043 ±2 41.1 ±0.08 DN40 948 ±2 37.3 ±0.08
50 3” 1305 ±2 51.4 ±0.08 DN50 1168 ±2 46 ±0.08 3” 1305 ±2 51.4 ±0.08 DN50 1124 ±2 44.3 ±0.08
80 4” 1527 ±2 49.5 ±0.08 DN80 1584 ±2 62.4 ±0.08 4” 1527 ±2 60.1 ±0.08 DN80 1538 ±2 60.5 ±0.08
