GETTING STARTED
17
17
17
17

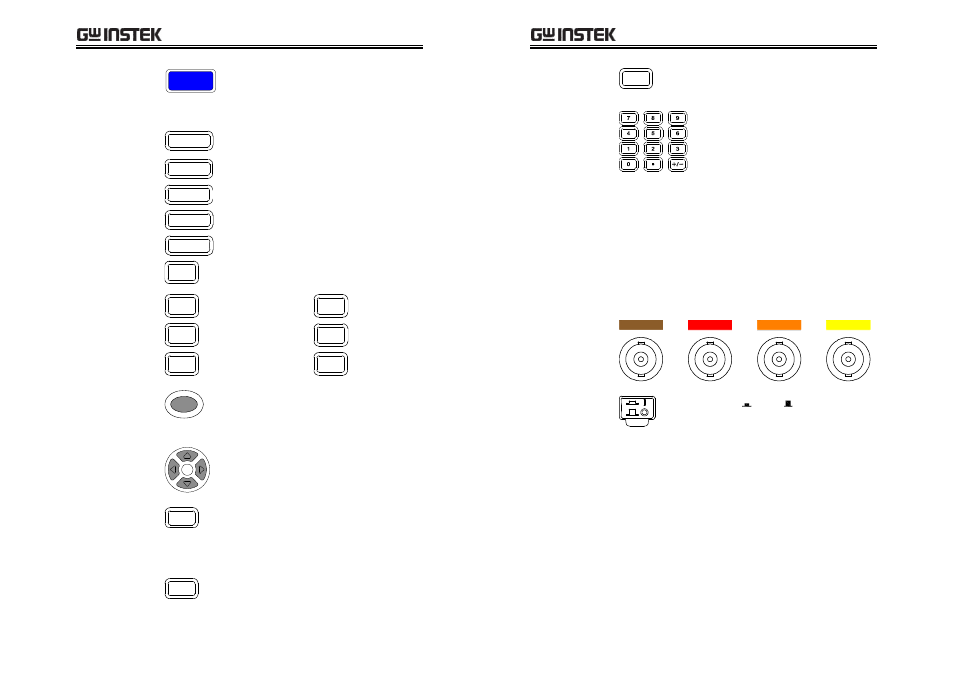

Calibration key
Calibration
Enters the calibration mode. See
page123 for calibration details.
Unit keys
Enters unit when editing values.
D/Q
Dissipation factor or Quality factor
V/A
Voltage or Ampere
H
Henry (for Inductance)
F
Farad (for Capacitance)
Ω
Ohm (for Resistance, Impedance)
S
Siemens (for Susceptance,
Admittance)
k
Kilo (10
3
)
M
Mega (10
6
)
p
Pico (10
–12
)
n
Nano (10
-9
)
µ
Micro (10
–6
)
m
Milli (10
–3
)
Trigger key
Trig
Manually triggers measurement.
Available only in Single
measurement mode (page55).
Arrow keys
Selects menu items or parameters.
The Up/Down and Left/Right keys
are used in pairs.
Code key
Code
Enters system codes for changing
drive Voltage/Current display
(page57) or frequency adjustment
resolution (page53).
Clear key
Clear
Clears all previous entries when
editing values.
LCR-8000G Series User Manual
18
18
18
18
Enter key
Enter
Confirms the entered value or
selection.
Numerical keys
Enters numeric values.
Measurement
terminals
Accepts measurement fixture. For connection
details, see page24.
LFORCE
Current return
LSENSE
Low potential
HSENSE
High potential
HFORCE
Current output
L
FORCE
L
SENSE
H
SENSE
H
FORCE
Power switch
Turns On or Off the main
power. For power up sequence, see
page22.
