PASS-FAIL MODE
63 63 63 63

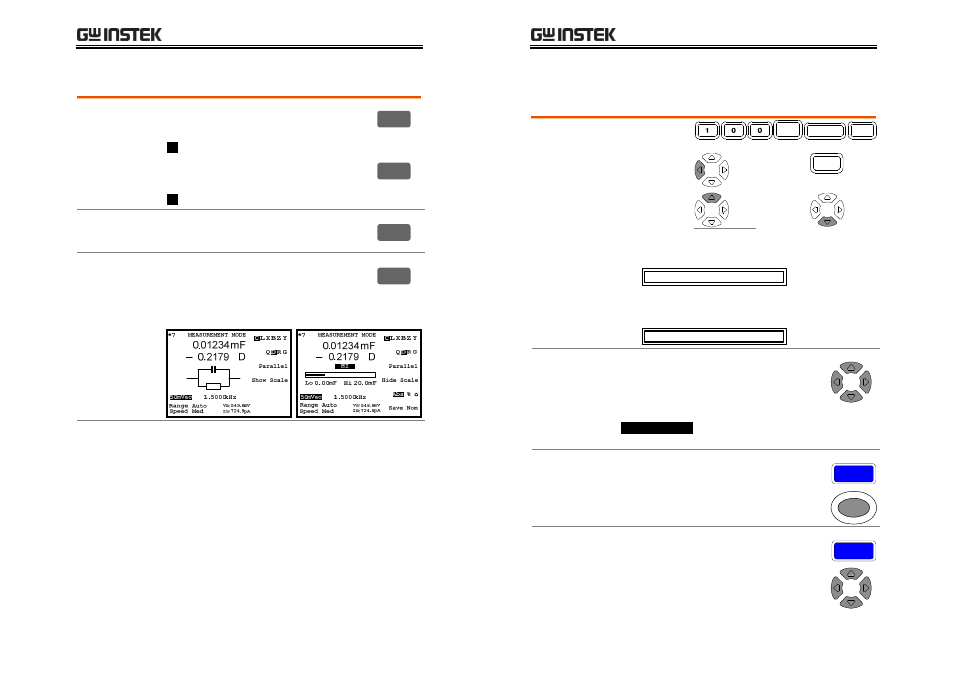

Select test item and scale (Pass/Fail test)
Test item To select the first measurement item,
press F1 repeatedly.
C L X B Z Y
F 1
To select the second measurement item,
press F2 repeatedly.
Q D R G
F 2
Circuit model To select the circuit model, series or
parallel, press F3 repeatedly. F 3
Scale Press F4 (Show/Hide scale) to select
scale (Pass/Fail test). F 4
Normal Pass/Fail test
Normal mode For Normal (basic) mode details, see page36.
LCR-8000G Series User Manual
64 64 64 64
Set parameters
For more detailed descriptions, see Basic measurement, page47.
How to edit Example
100mV
m V/A Enter
Backspace All clear
Clear
Increase Decrease
When the entered value does not fit in the
range, the nearest available value is selected.
Nearest Available
When the wrong unit (such as Ω) is entered,
the value is cancelled.
Unit Mismatched
Measurement
range (to Auto) Press the Left/Right key repeatedly to
move the cursor to Range position, and
use the Up/Down key to select Auto (if
necessary).
Speed Slow
Range Auto
Single mode Press the Sing/Rep key repeatedly to
select Single (manual trigger). To trigger
measurement, press the Trigger key.
Sing/Rep
Trig
Repetitive mode Press the Sing/Rep key repeatedly to
select Rep (automatic trigger). Press the
Left/Right key repeatedly to move the
cursor to Speed, and use the Up/Down
key to select the update rate.
Sing/Rep
