GETTING STARTED
15 15 15 15
Model Comparison
Major Model Differences
Model LCR-8101G LCR-8105G LCR-8110G
Measurement
Frequency 20Hz~1MHz 20Hz~5MHz 20Hz~10MHz
Drive Signal Level
AC
20Hz~1MHz:
0.01V~2Vrms 20Hz~≤3MHz:
0.01V~2Vrms
>3MHz~5MHz:
0.01V~1Vrms
20Hz~≤3MHz:
0.01V~2Vrms
>3MHz~10MHz:
0.01V~1Vrms
DC 0.01V~2V
Drive Signal Short
Circuit Current
AC
20Hz~1MHz:
100uA~20mA
rms 20Hz~≤3MHz:
100uA~20mA
rms
>3MHz~5MHz:
100uA~10mA
rms
20Hz~≤3MHz:
100uA~20mA
rms
>3MHz~10MHz:
100uA~10mA
rms
DC 100uA~20mA
Drive Signal
Accuracy (open
circuit)
AC
20Hz~1MHz:
± 2% ± 5mV 20Hz~≤1MHz:
± 2% ± 5mV
>1MHz~5MHz:
± 5% ± 10mV
20Hz~≤1MHz:
± 2% ± 5mV
>1MHz~10MHz:
± 5% ± 10mV
DC ± 2% ± 5mV
LCR-8000G Series User Manual
16 16 16 16

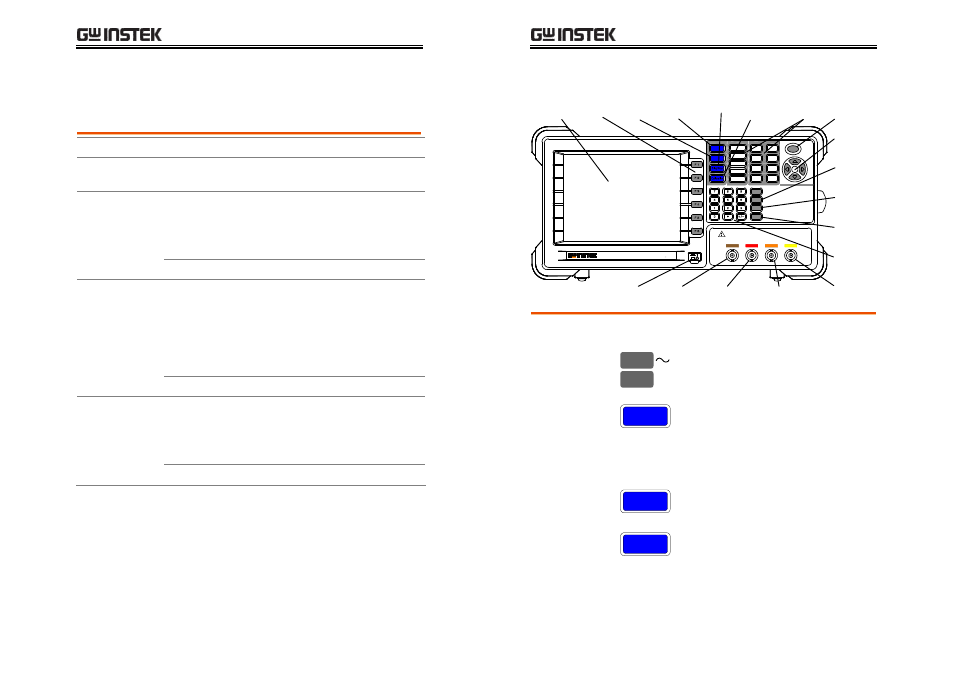

Front Panel Overview
LCR-8101G DC , 20 1M Hz Precision LCR Meter
Menu
H
F
Ω
M
m
∝
Trig
k
S D / Q
V / A
p
n
DISCHARGE TEST DEVICE BEFORE CONNECTING
L FORCE L SENSE H SENSE H FORCE
Code
Clear
Enter
Local
Main
Display Function
Keys Local
Key Menu
Key
Single/
Repetitive
Key
Calibration
Key Unit
Keys Trigger
Key
Arrow
Keys
Code
Key
Clear
Key
Enter
Key
Current
Out High
Potential Low
Potential Current
Return
Numerical
Keys
Power
Switch
Main display 320 by 240, DST LCD display.
Function keys F 1
F 6
Assigned to the menu on the right
side of the display.
Local key
Local
When the instrument is under
remote control mode, sets the
instrument back into local panel
operation. For remote control
details, see page107.
Menu key
Menu
Shows the main menu on the
display.
Single/Repetitive
key
Sing/Rep
Selects Single measurement mode
(manual triggering) or Repetitive
measurement mode (automatic
triggering). See page55 for details.
