PASS-FAIL MODE
59 59 59 59
Multi-step
configuration
Overview ......................................................................70
Configure beep setting ................................................72
Configure the Average .................................................73
Enter multi-step mode.................................................74
Create new program ....................................................74
Edit program step ........................................................76
Copy (duplicate) program step ...................................79
Delete program step....................................................79
Multi-step run Run program ...................................................... 80
Multi-step file
operation Save program ..................................................... 83
Recall (load) existing program............................ 85
Delete existing program ..................................... 86
LCR-8000G Series User Manual
60 60 60 60
Single-Step Test Configuration

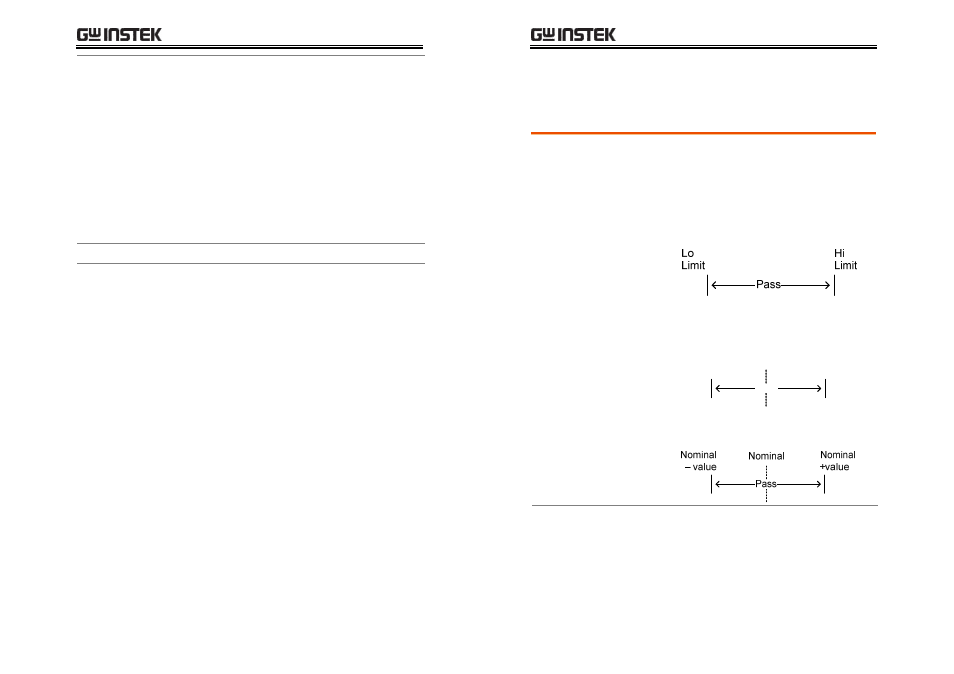

Overview
Background / test
type Pass/Fail test checks whether the measurement
result sits between the Hi(high) and Lo(low) limit.
Three methods are available: absolute limit,
percentage and delta limit.
Absolute
limit The Hi and Lo limit are defined by
absolute values.
Percentage
limit The Hi and Lo limit are defined by the
distance (percentage) from the
Nominal value.
Nominal
– ##%
Pass
Nominal Nominal
+ ##%
Delta limit The Hi and Lo limit are defined by the
difference from the nominal value.
C S Series capacitance X Reactance Test item
C P Parallel
capacitance
B Susceptance
L S Series inductance Z Impedance
L P Parallel inductance Y Admittance
R S Series resistance R DC DC Resistance
