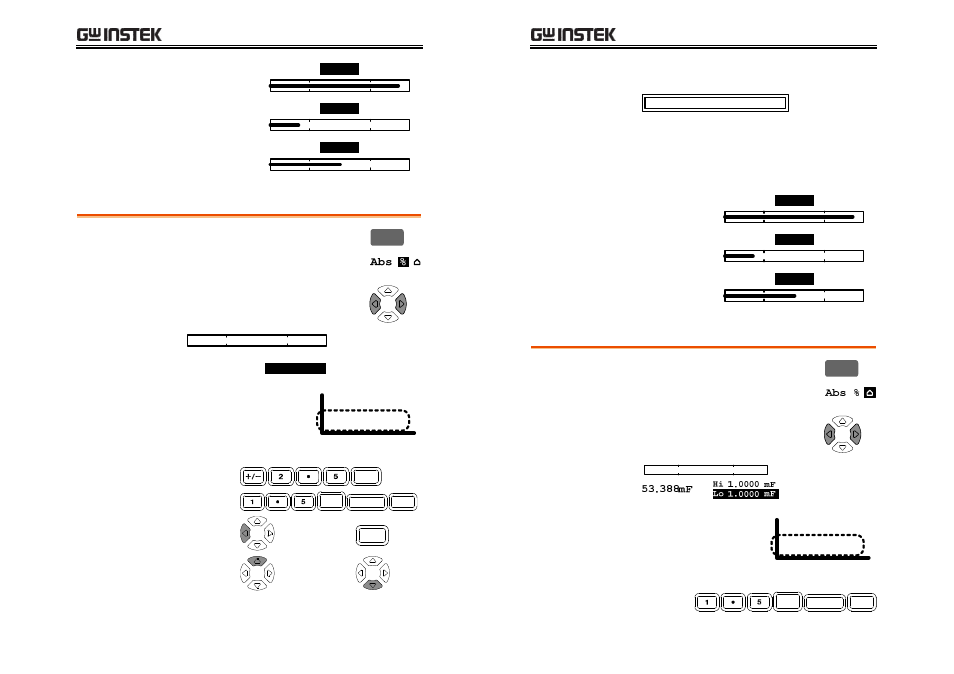

PASS-FAIL MODE
67 67 67 67
Result > Hi HI
Result < Lo LO
Lo < Result < Hi
(Pass) PASS
Run in Percentage mode
1. Press F5 to select Percentage
measurement.
F 5
2. Use the Left/Right key to move the
cursor to Hi/Lo value or nominal
value for editing.
Hi
Lo
+1.00%
–1.00%
100.00mD
3. Use the numerical keys
and unit keys to enter the
value. The editing value
appears at the bottom left
corner of the display.
Range
Speed Med Auto
Lo Lim: 1.5_
–2.50%
Enter
1.5kH
Enter H k
Backspace All clear
Clear
Increase Decrease
LCR-8000G Series User Manual
68 68 68 68
Hi and Lo values are automatically swapped if
necessary
Hi and Lo Swapped
4. The display updates the Hi/Lo result
immediately. The result is pass if the bar stays
in the central area. The buzzer sounds
accordingly.
Result > Hi HI
Result < Lo LO
Lo < Result < Hi
(Pass) PASS
Run in Delta mode
1. Press F5 to select Delta
measurement.
F 5
2. Use the Left/Right key to move the
cursor to Hi/Lo value or nominal
value for editing.
3. Use the numerical keys
and unit keys to enter the
value. The editing value
appears at the bottom left
corner of the display.
Range
Speed Med Auto
Lo Lim: 1.5_
1.5mF
Enter F m
