BASIC MEASUREMENT
51
51
51
51

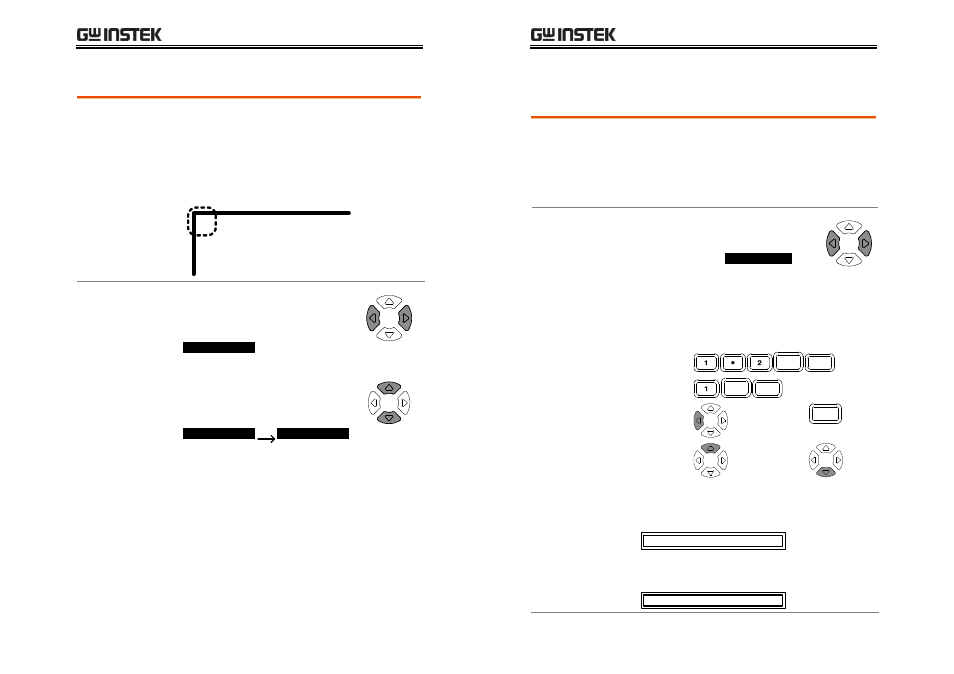

Set measurement range to Auto
Background
The measurement range is an internal parameter
defining the search range for each measurement
item. Make sure the Auto setting is always
selected, to obtain the best measurement accuracy.
The active range appears at the top left corner of
the display.
MEASUREMENT MODE
0.01234
0.2179
nS
D
*7
–
Panel operation
1. Press the Left/Right key
repeatedly to move the cursor to
Range position.
Speed Slow
Range Auto
2. If the range is NOT set to Auto,
press the Up/Down key
repeatedly to set it back to Auto.
Speed Slow
Range 5
Speed Slow
Range Auto
LCR-8000G Series User Manual
52
52
52
52
Set measurement frequency
*This setting does not apply to Rdc measurement.
Background
The measurement frequency, together with the
measurement voltage, defines the electrical
condition of each measurement item. Make sure
the appropriate frequency is selected, according to
the component characteristics.
Panel operation 1. Press the Left/Right key repeatedly
to move the cursor to Frequency.
2.00
195.00 kHz
Vac
2. Enter the frequency using the numerical keys.
Range
20Hz ~ 1MHz (LCR-8101G)
20Hz ~5MHz (LCR-8105G)
20Hz ~10MHz (LCR-8110G)
1.2kHz
k
Enter
1MHz
M
Enter
Backspace
All clear
Clear
Increase
Decrease
When the entered value does not fit in the
range, the LCR-8000G automatically selects the
nearest value.
Nearest Available
When the wrong unit (such as Ω) is entered,
the value is cancelled.
Unit Mismatched
