PASS-FAIL MODE
71 71 71 71
Parameters No. of step Maximum 30 for each program
No. of program Maximum 64
Drive Voltage
(1mV step) 10mV ~ 2V (DC or AC≤3 MHz)
10mV ~ 1V (AC>3 MHz)
Frequency 20Hz ~ 1MHz (LCR-8101G)
20Hz ~ 5MHz (LCR-8105G)
20Hz ~ 10MHz (LCR-8110G)
Bias Reserved item: internal use only
Speed Max, Fast, Med, Slow
Hi / Lo Limit Follows the measurement range
Delay 0 ~ 9999ms, 1ms step
Single trigger Program runs when the Trigger
key or F1 (Start) is pressed.
Automatic
trigger Program runs when the LCR-
8000G detects the DUT.
LCR-8000G Series User Manual
72 72 72 72

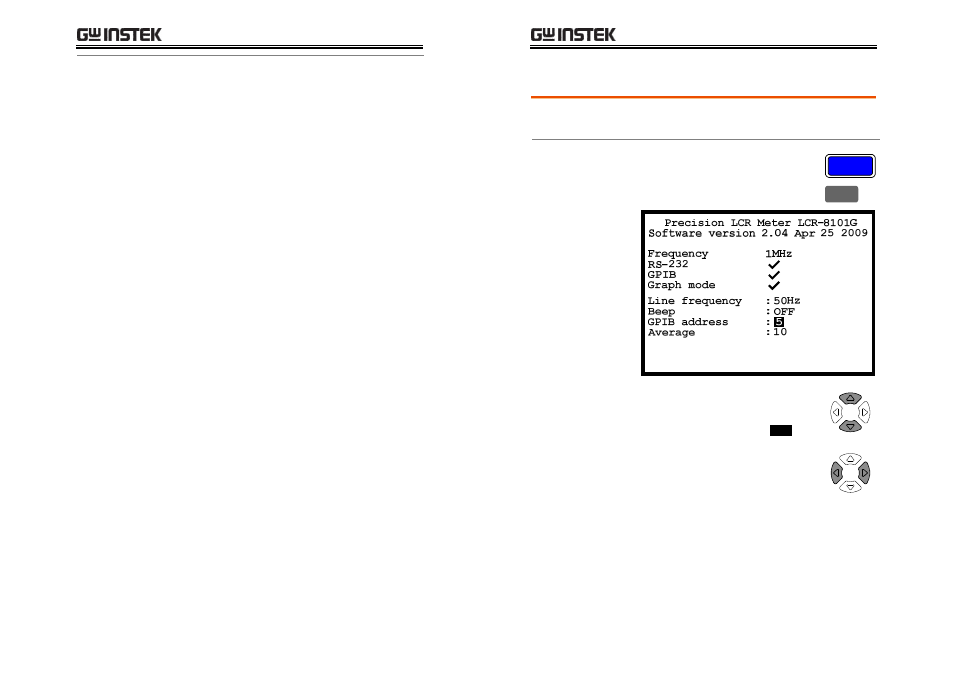

Configure beep setting
Background The beep sounds when the pass/fail test result
matches the setting: failed or passed.
Panel operation 1. Press the Menu key, then F5
(System). The system configuration
appears.
Menu
F 5
2. Press the Up/Down key and move
the cursor to Beep.
Beep : OFF
3. Press the Left/Right key to select the
beep setting, Off, Pass, or Fail.
Off Beep is turned Off
Pass Beeps when the test result is pass
Fail Beeps when the test result is fail
