GETTING STARTED
21 21 21 21

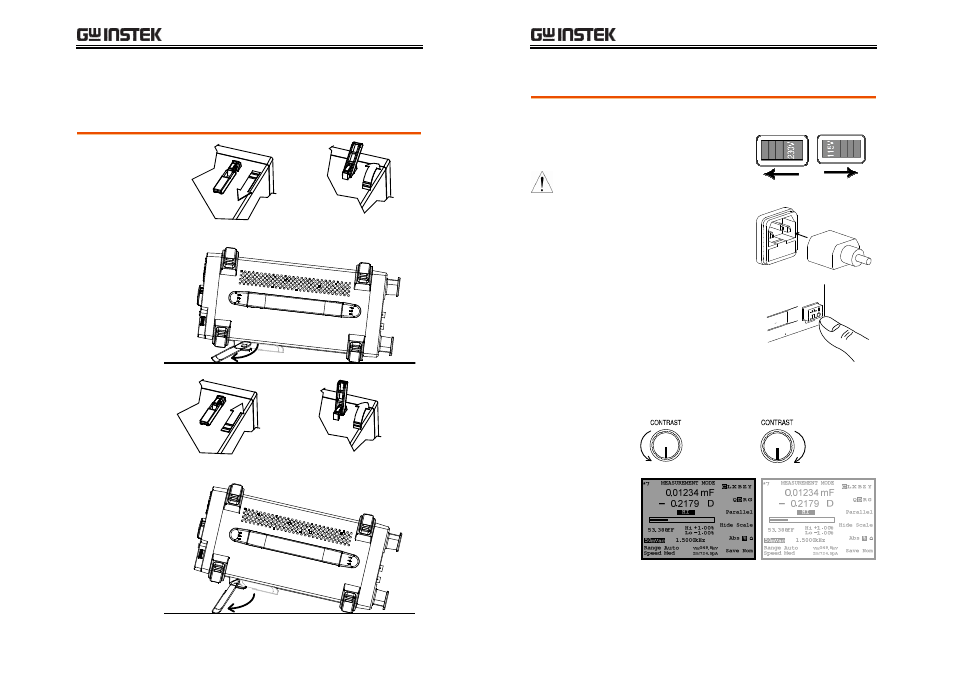

Tilt Stand & Power Up
Tilt stand
Low angle
High angle
LCR-8000G Series User Manual
22 22 22 22
Power up
Panel operation
1. Set the rear panel
Voltage selector to the
correct position
according to the AC
mains voltage.
230V 115V
2. Connect the power
cord to the socket.
3. Turn On the power
switch. The display
becomes active in 2~3
seconds.
DC , 20 1M Hz
Prec ision LCR Me ter
4. Use the contrast knob on the rear panel to
adjust the LCD display brightness.
Counter-
clockwise:
Dark Clockwise:
Light
