BASIC MEASUREMENT
49 49 49 49

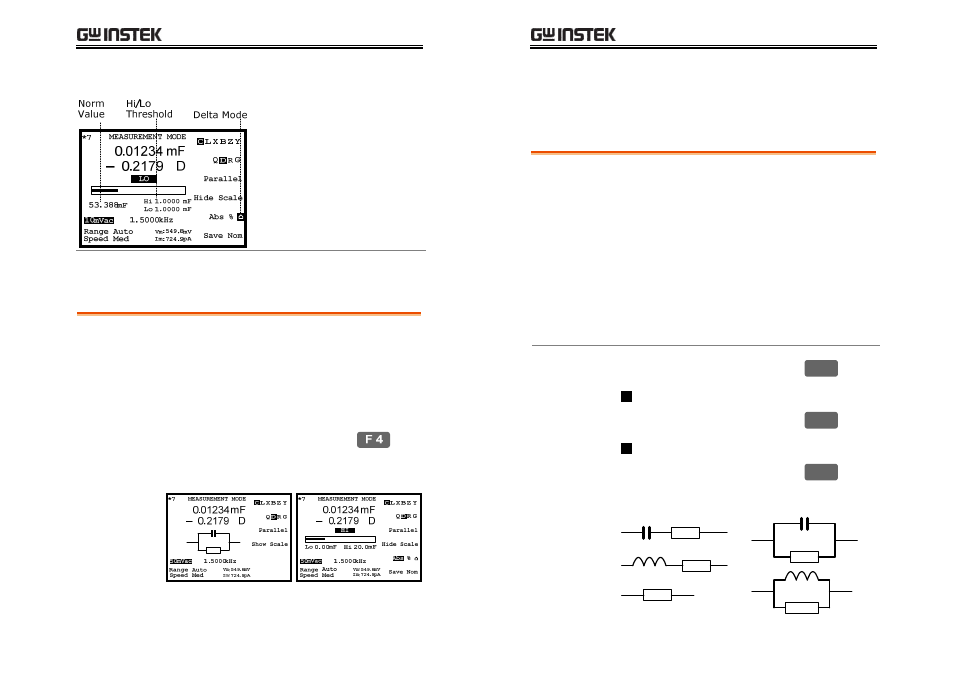

Delta mode (Pass/Fail test)
For Pass/Fail test details, see page58.
Show circuit model or scale (pass/fail)
Background The center of the display can be filled with the
diagram of equivalent circuit model, or the
measurement scale with Pass/Fail test result. This
selects not only the diagram/scale but also
whether running the Pass/Fail test or just
measuring the value.
Panel operation Press F4 (Show/Hide scale) to view
the circuit model or scale.
Normal Pass/Fail test
Pass/Fail test For Pass/Fail test details, see page58.
LCR-8000G Series User Manual
50 50 50 50
Parameter Configuration
Select measurement item
*This is not necessary for Rdc measurement.
Measurement
combination The following list shows the available combination
of the first and second measurement items.
Capacitance (C) Series C-Q, C-D, C-R
Parallel C-Q, C-D, C-R, C-G
Inductance (L) Series L-Q, L-D, L-R
Parallel L-Q, L-D, L-R, L-G
Reactance (X) Series X-Q, X-D, X-R
Susceptance (B) Parallel B-Q, B-D, B-R, B-G
Impedance (Z) Z-Angle
Admittance (Y) Y-Angle
Panel operation To select the first measurement
item, press F1 repeatedly.
C L X B Z Y
F 1
To select the second measurement
item, press F2 repeatedly.
Q D R G
F 2
To select the circuit model, series or
parallel, press F3 repeatedly. F 3
Series Parallel
