Press OK to proceed. The user event which has been set up will be
shown as an envelope right beside the measurement point, to which
it belongs.
To display a user event set the cursor at the envelope.
A user event can be updated or deleted by pressing the right mouse
button while placing the cursor on the envelope and selecting either
Update UserEvent or Delete UserEvent.
4.2.2.9 Printing the graphical window(Gas view)
The graphical window can be output to a printer by right-clicking with
the mouse button anywhere inside the graphical window to get the
print-menu.

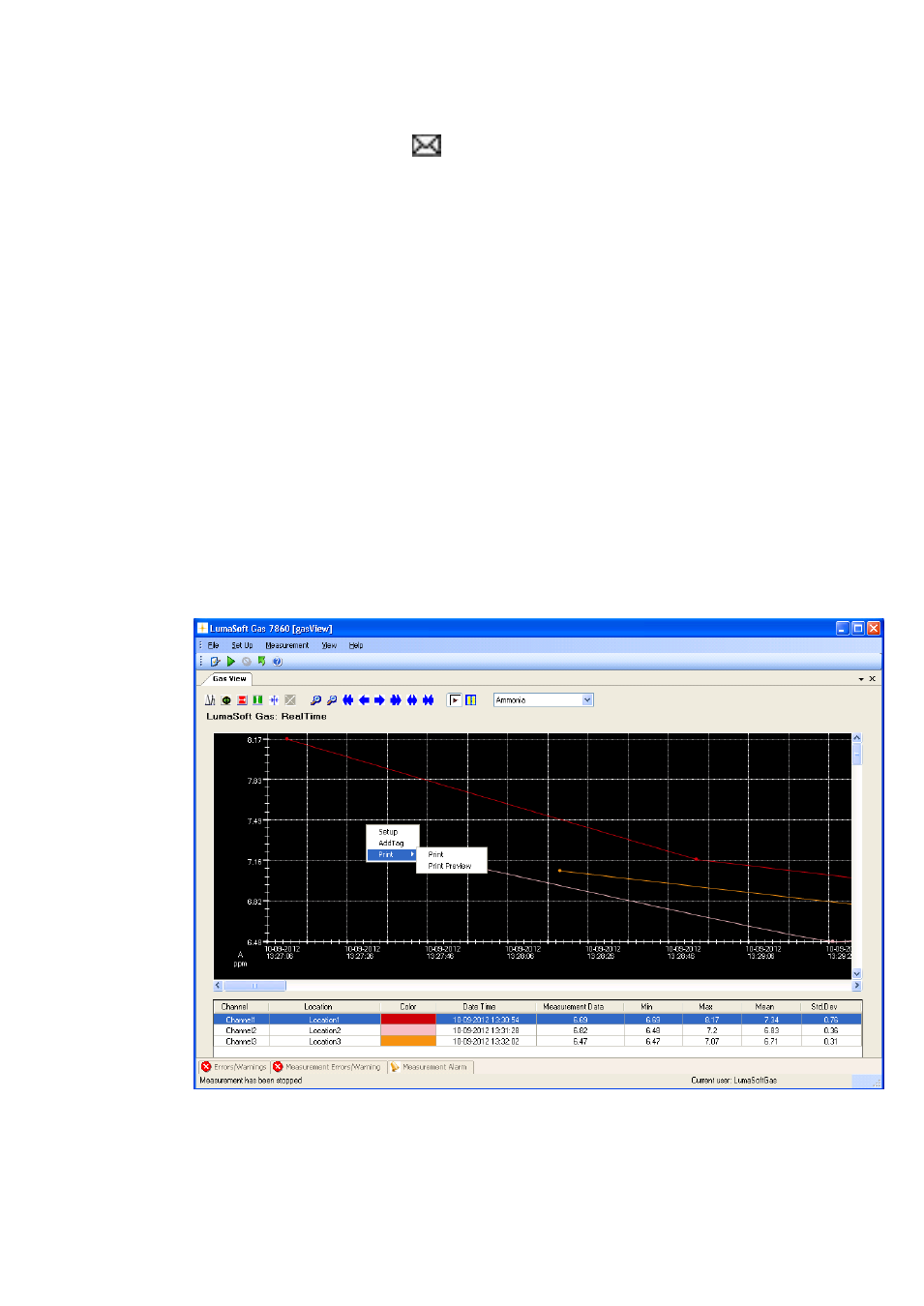

Select either Print or Print Preview, see Figure 4.58.
The Print option will make a printer output and the Print Preview will
make a screen view of the printout.
Figure 4.58 Printing the Graphical window(Gas view)
