Units
In the Unit column the unit in which each gas will be displayed in the
graphical window can be selected.

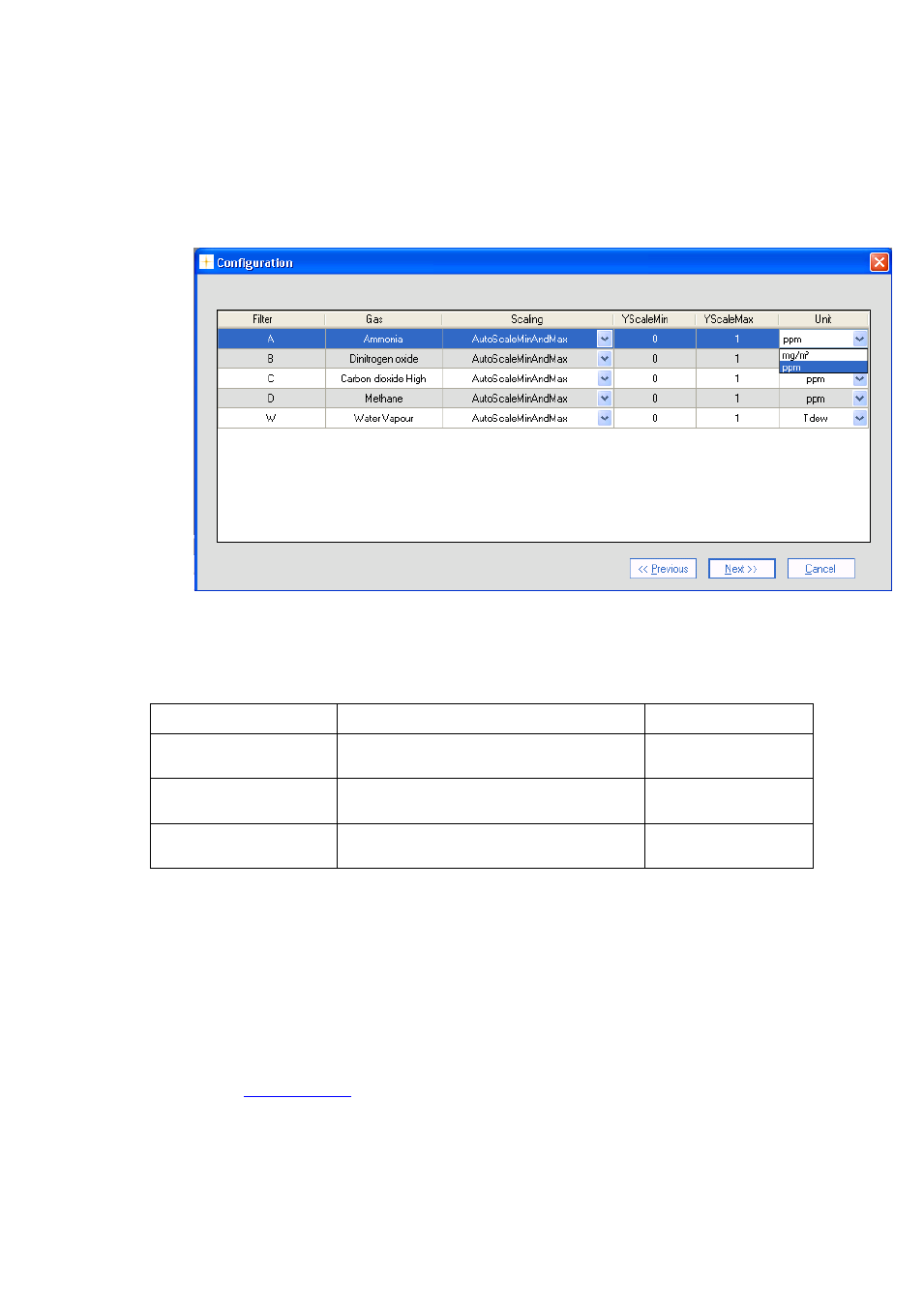

Figure 4.45 Select the unit in which the gas concentrations will be
displayed
Table 4.4 shows the possible parameter units and their default settings.
Parameters Units Default Unit
Humidity mg/m 3 , ppm, Tdew, kPa Tdew
Pressure mbar, mmHg, kPa kPa
Gas Concentrations mg/m 3 , ppm ppm
Table 4.4 The possible parameter units with defaults
When all the settings has been adjusted press Next to proceed.
4.2.2.5 Configuration of the Graph Window (Gas view)
In this configuration window the trend properties are configured. The
trend can be given a title by entering a name in the Graph Title field.
(See Figure 4.46 ).
