LumaSense Technologies LumaSoft Gas Multi Point 7860 - Manual (Page 52)

Chapter 4
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 52 of 194

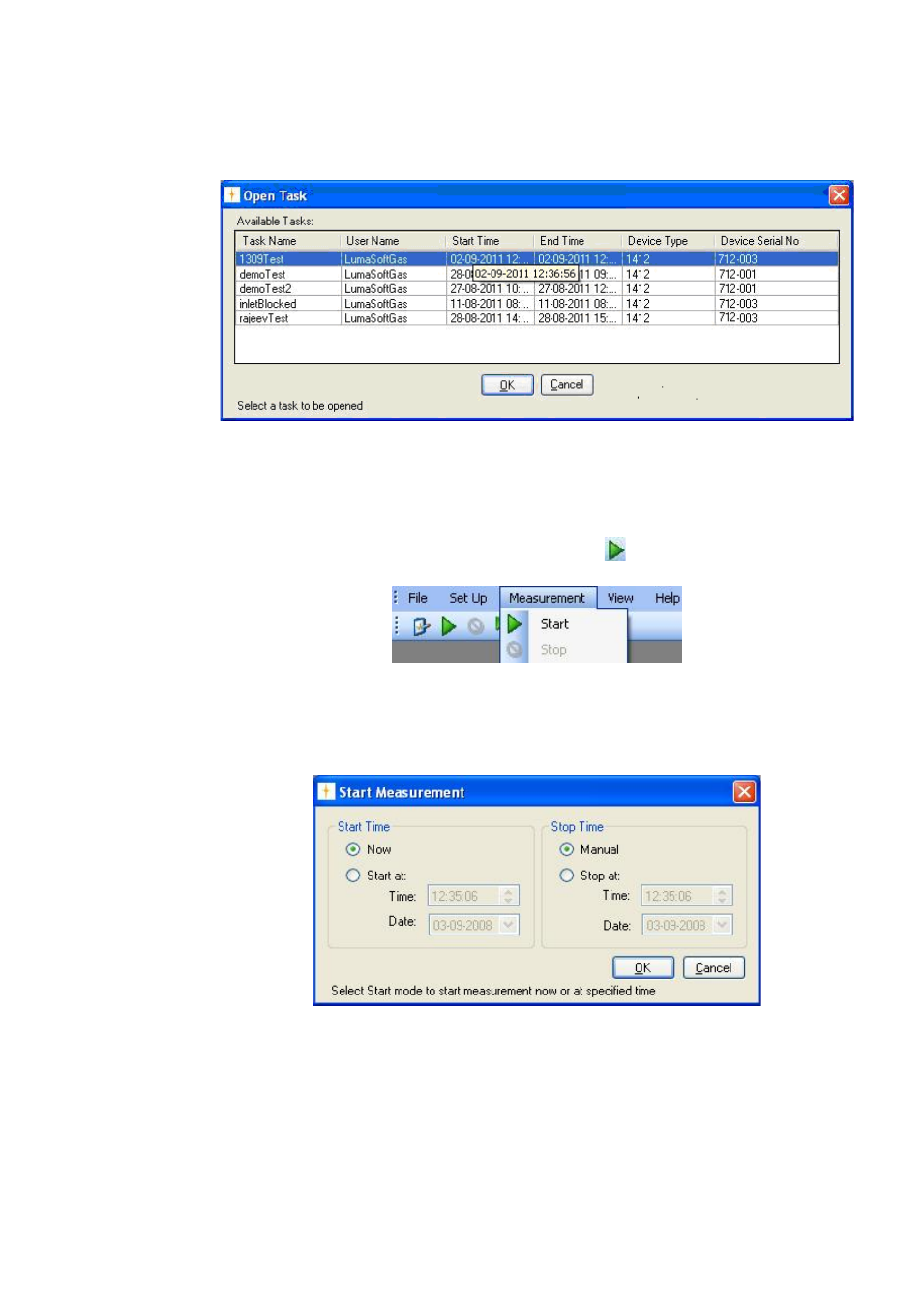

Select an existing task to open, see Figure 4.2.
Figure 4.2 Select which task to open
4.1.1 Start Measurement
To start the measurement, select Measurement and Start, see Figure
4.3, or press the icon with the green arrow in the task bar.
Figure 4.3 Measurement pull-down: Start
The measurement can be started immediately (Now option) or at a
specific starting time by using the option: Start at, see Figure 4.4.
Figure 4.4 Start and stop measurement task
The measurement can be stopped manually (Manual option) or at a
fixed time using the Stop at option. (See Figure 4.4)
A measurement task can be stopped and then restarted at your
convenience.
