Chapter 6
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 142 of 194
Warning and Errors occurring during the operation of the LumaSoft Gas
application will be shown in 2 windows at the bottom of the application.
How to enable the view of these 2 Warning and Error windows is
described in Section 4.6 .
The Warnings and errors occurring during measurement will appear in
the Measurement Errors/Warnings window, see Figure 6.1.

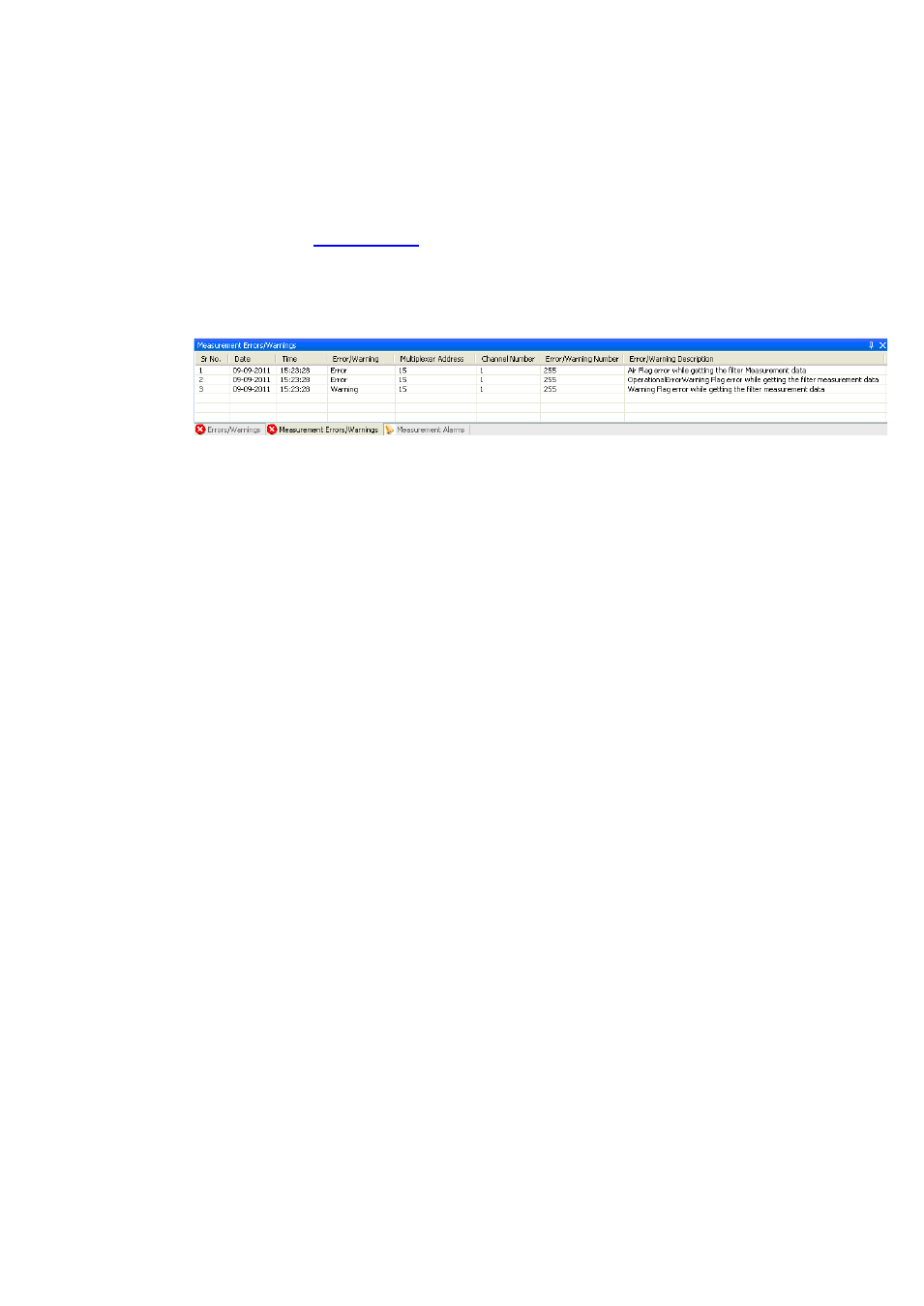

Figure 6.1 Measurement Errors/Warnings window
The Warnings and Errors shown in the Measurement
Errors/Warnings window originates either from the Monitor or the
Multiplexer.
6.1 Monitor Error/Warnings
The Warnings and Errors which originates from the Gas Monitor is
described in chapter 17 in the manual “BE6025 Instruction Manual,
1412i Photoacoustic Gas Monitor”.
Warning/errors originating from the Monitor will be given the
Error/Warning Number 255, as shown in Figure 6.1.
6.2 Multiplexer (Multipoint sampler) Error/Warnings
The warnings and errors which originates from the Multiplexer is
described in Section 3.7.4 and 3.7.5 in the manual “BE1285 User
Manual for 1309 Multipoint Sampler” and in Section 3.9.4 and 3.9.5
in the manual “BE1085 User Manual for 1303 Multipoint Sampler
and Doser”.
The Error/Warning Number will show the Warning flag value and
Error flag value as specified in the above 1309/1303 multipoint sampler
manuals.
