Scroll
If a measurement is running over a longer period of time, these icons
can be used to scroll the x axis forth or
and back or .
Expand/Compress
These two icons can be used to expand and compress the x-axis. This
function can be used to get a better visibility of measurement points
lying very close to each other.
Start/Pause measurement
These two icons allow the user to start
and pause the display of
new measurements points at any time.
Select Gas
This select field box enables switching between the gasses, allowing
viewing all obtained measurement data for a specific gas, see Figure
4.55.

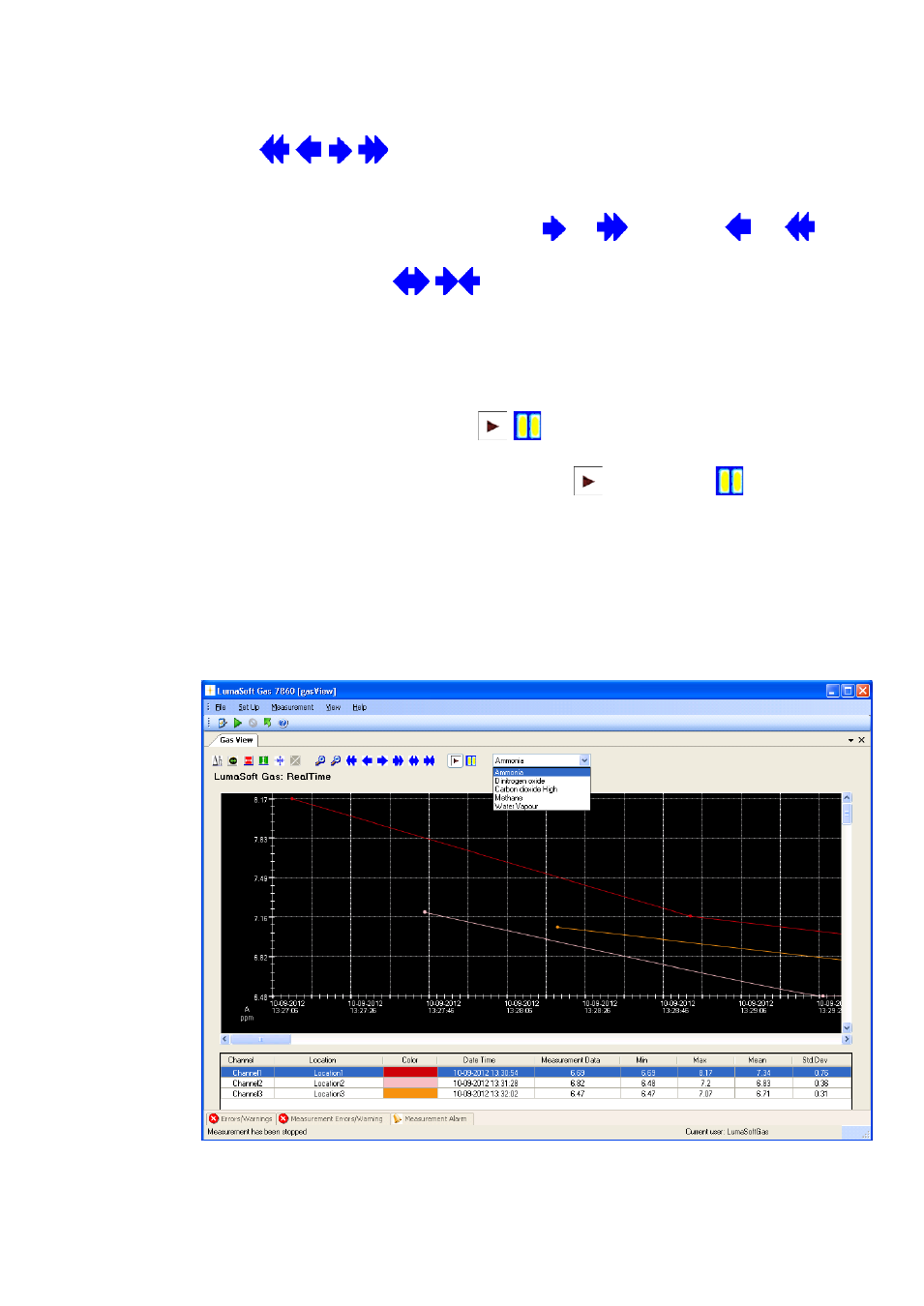

Figure 4.55 Select a gas in the select field box
