Chapter 3
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 37 of 194
3.2 Measurement set-up
The set up of a new measurement task is carried out in five steps.
3.2.1 Configuration
First step is System Configuration Setup, select Configuration in the
Set Up pull down menu (Figure 3.15) or select the icon from the task
bar.

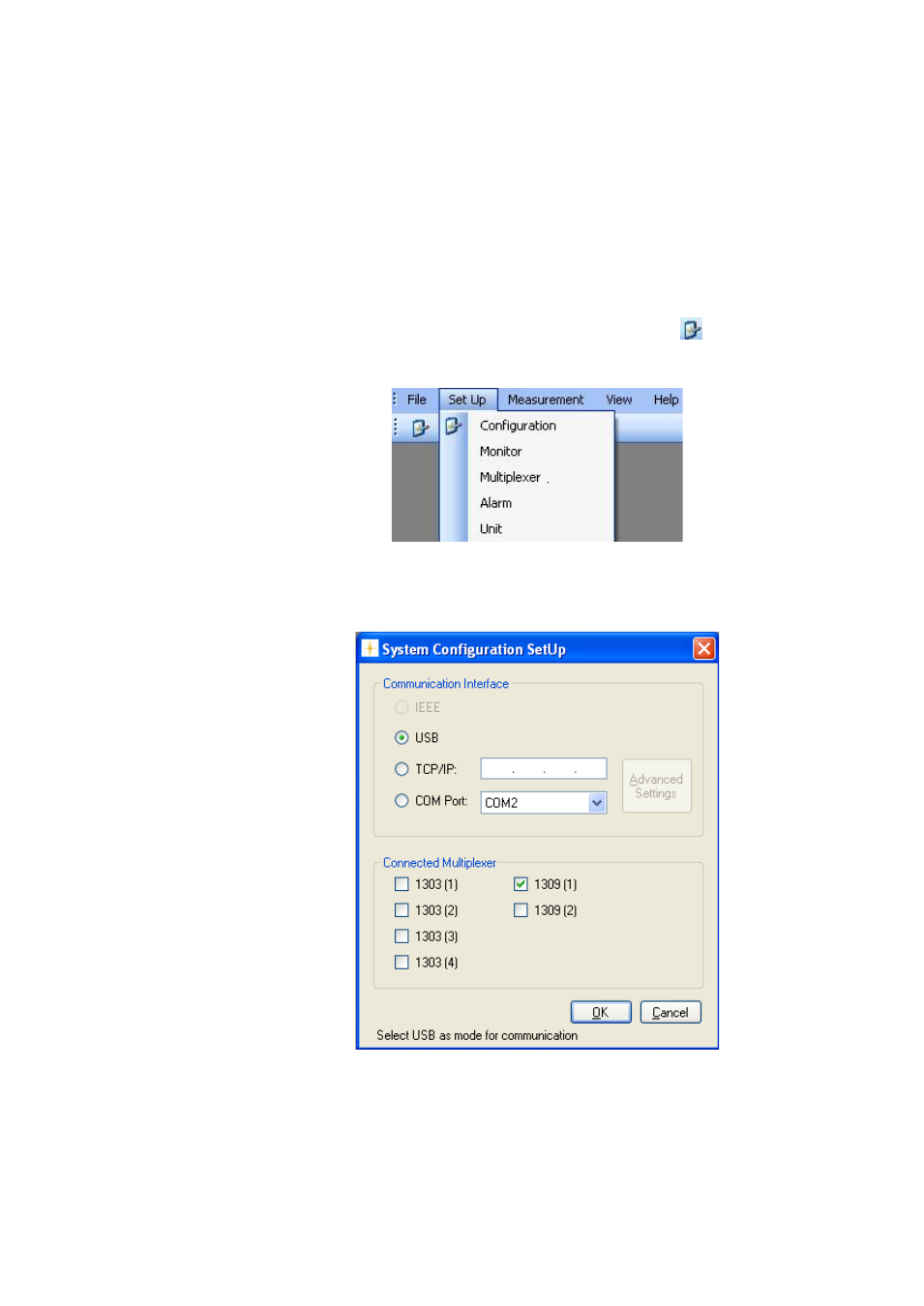

Figure 3.15 Set-up pull-down: Configuration
The following System Configuration Set Up window will appear.
Figure 3.16 System Configuration SetUp
Then make check marks if any multiplexers (1303, 1309) are connected
to the Monitor. A maximum of four 1303 or two 1309 can be connected.
After finishing the set up, press OK.
