PointStyle
It is possible to change the style of the plotted measuring points to
Square or Circle using the field selection in the Point Style column.

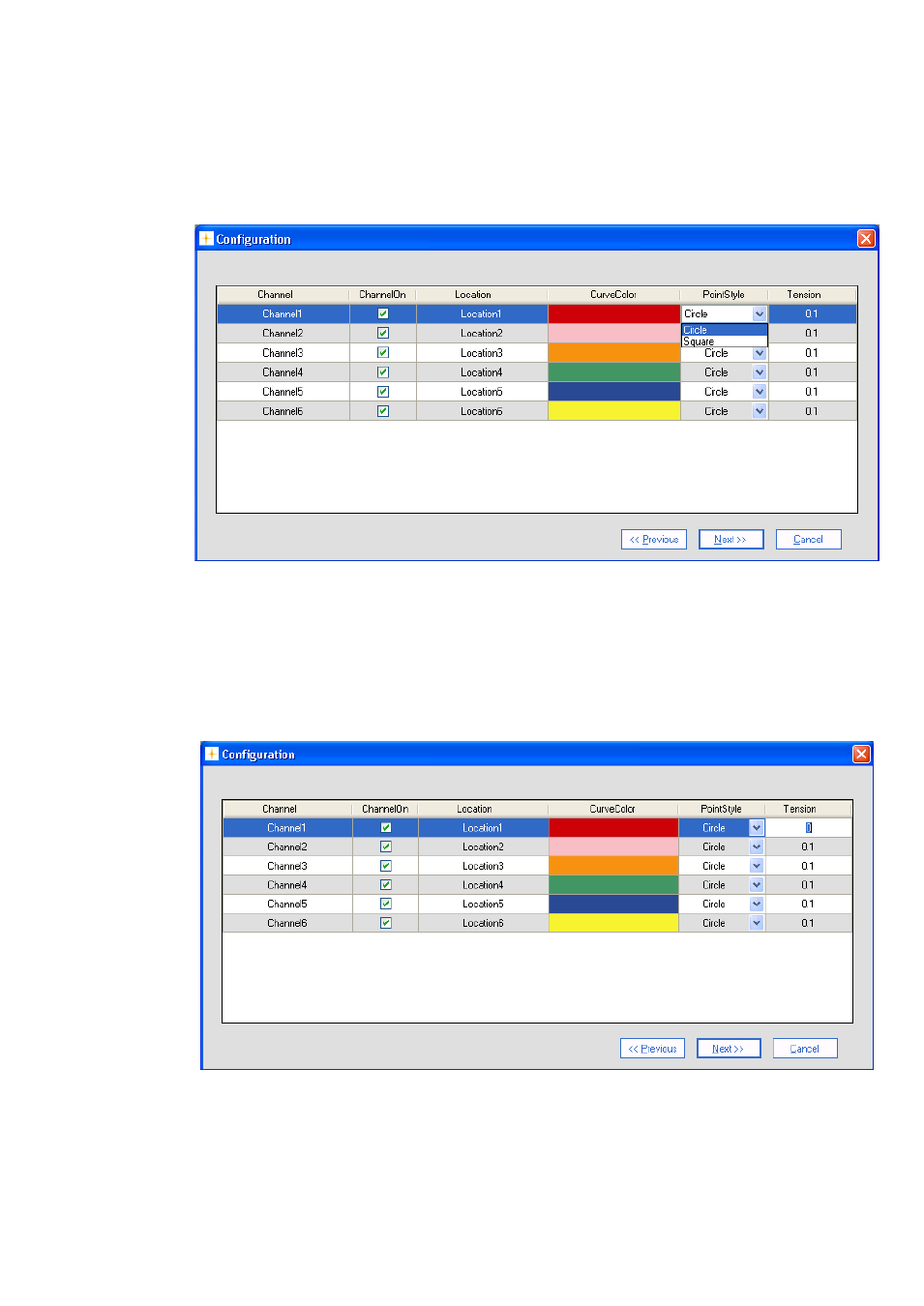

Figure 4.42 Change the style of the measurement points
Tension
By adjusting the Tension it is defined how soft/hard the lines between
the measuring points should be. If the tension is set to 0 the points are
connected by straight lines.
Figure 4.43 Define how hard/soft the lines between measurement points
should be
When all the settings has been adjusted press Next to proceed.
