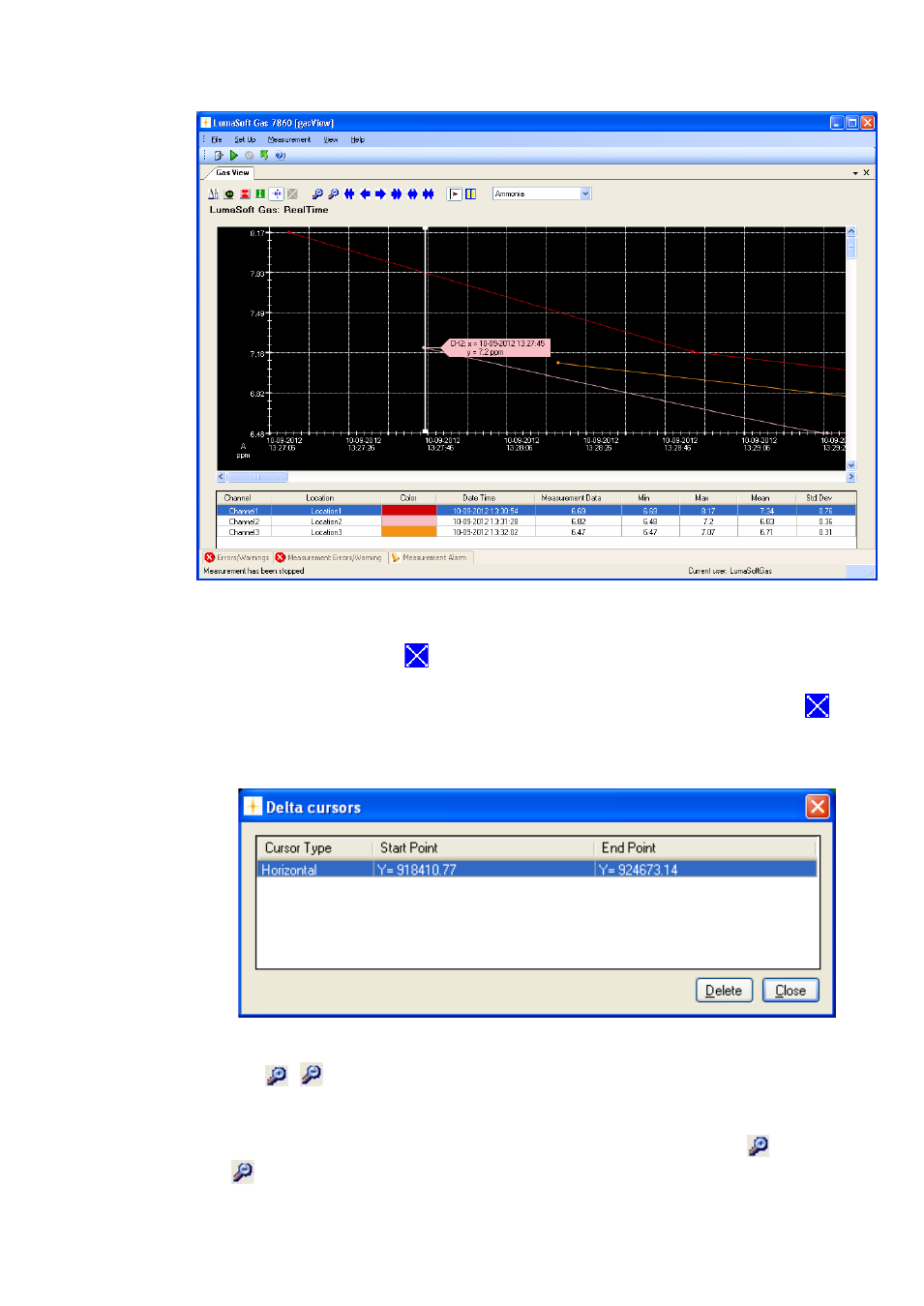

Figure 4.53 Drag the cursor to the measurement point to view the
measurement data
Delete Delta Cursor
A X or Y Delta Cursor can be deleted by pressing this icon . The
window below will appear and the desired cursor can be selected and
deleted by pressing Delete, see Figure 4.54.
Figure 4.54 Select the cursor which should be deleted and press Delete
Zoom
This function enables the user to zoom in and out on areas of particular
interest on the graph by using the two icons: Zoom In and Zoom
Out .
