The following window will appear.

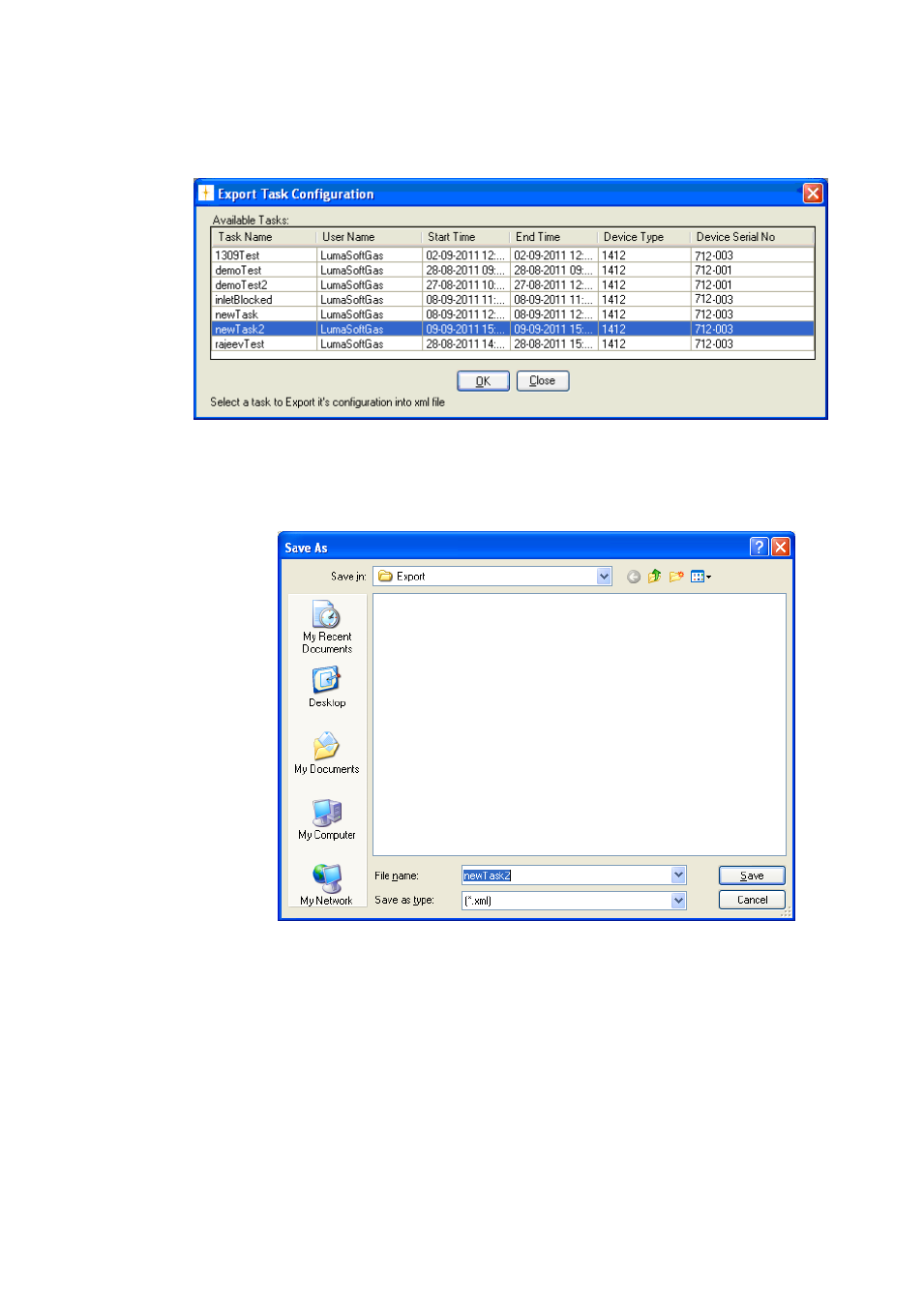

Figure 5.14 Select a task to export its configuration
Select the task for which the configuration is to be exported to a xml-
file. Press OK to proceed. (See Figure 5.14)
Figure 5.15 Type in a filename for the xml task configuration file
Search for a folder where the xml task configuration should be stored,
and type in a name for the task configuration file in the field: File
Name. (See Figure 5.15)
The default file name for the xml configuration file is the name of the
task that is having its configuration exported.
Press the Save soft-key to save the xml task configuration file. (See
Figure 5.15)
