LumaSense Technologies LumaSoft Gas Multi Point 7860 - Manual (Page 38)

Chapter 3
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 38 of 194
3.2.2 Monitor Setup
Set up of the Monitor is done by selecting Monitor in the Set Up pull
down menu. (Figure 3.17)

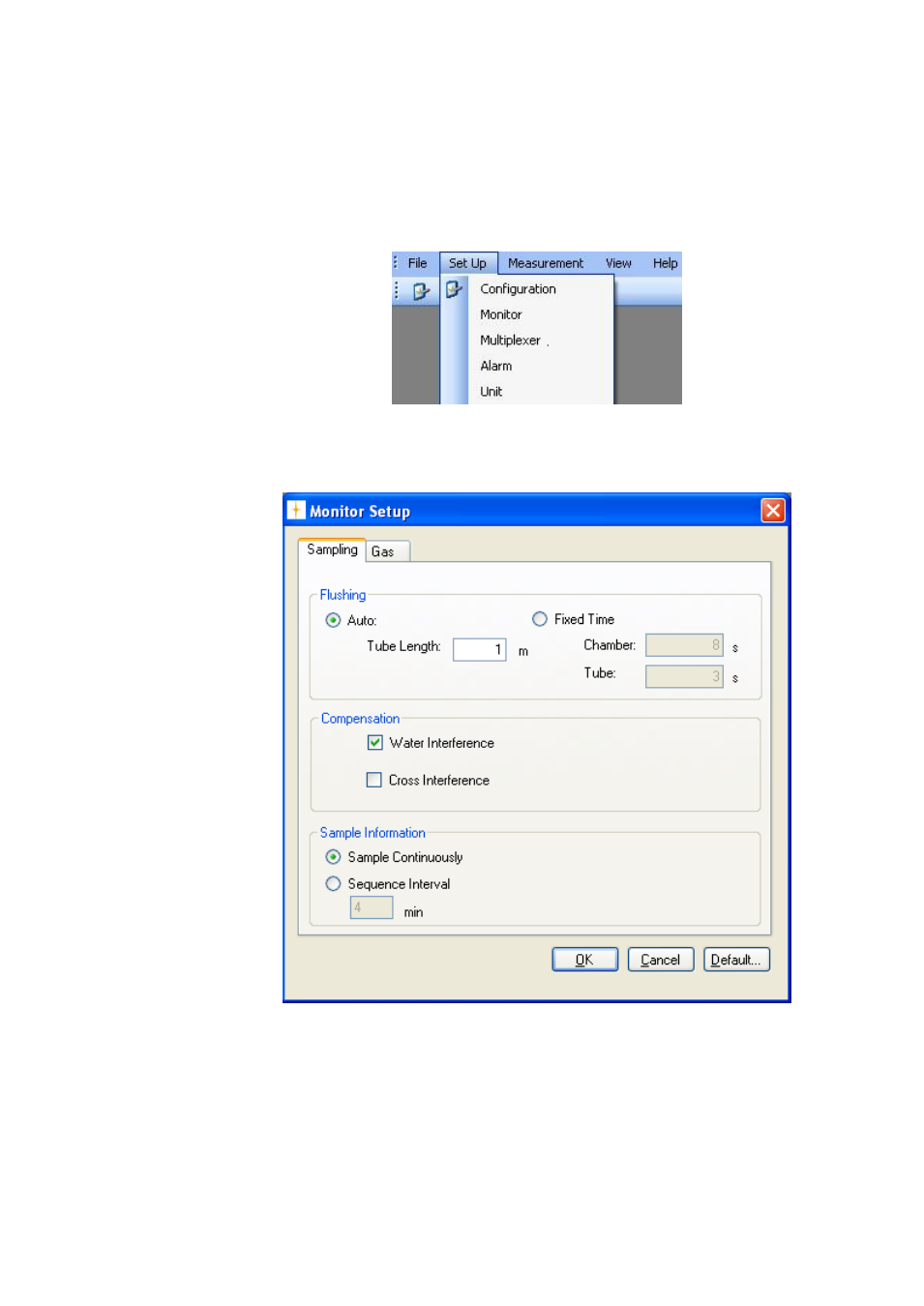

Figure 3.17 Set up pull-down: Monitor
The Monitor Setup will appear. (Figure 3.18)
Figure 3.18 Monitor Setup, Sampling
Sampling Index Card
In the Flushing group box select if the flushing of the instrument should
be Auto or Fixed Time.
