Chapter 4
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 101 of 194
appears here, but you want to edit the units, then you must remove the
existing parameter and add it again with the changed unit.
When all the parameters, which should be displayed in the numeric
window, have been selected, press OK to proceed.
The numeric window is shown, see Figure 4.73.

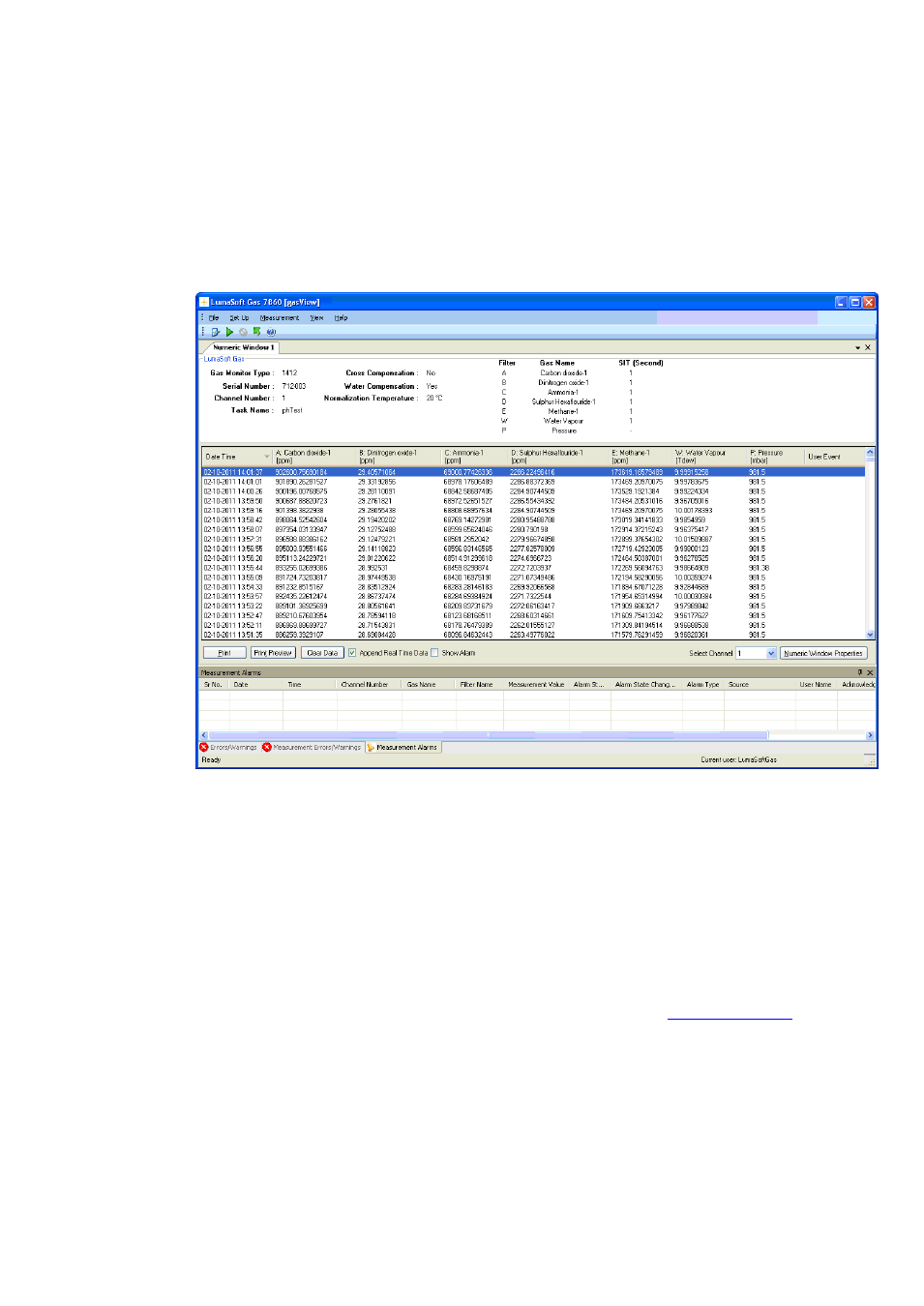

Figure 4.73 The numeric window
4.3.2 The Numeric Window
In the top of the numeric window the serial number for the Monitor and
other settings are shown.
This window can display all the measurement data, simultaneously. Gas
measurement data are displayed as instantaneous values. If any events
have been added during the monitoring task, these are also displayed
here. How to generate user events is explained in Section 4.3.3 .
The latest measurement results are always displayed at the bottom of
the column, previous measurement data roll upwards, disappearing from
the view at the top of the column when the defined interval is full.
The Error and Warnings window will register if any errors have occurred
while running the measurement. The window can be hidden by pressing
