PointStyle
It is possible to change the style of the plotted measuring points to
Square or Circle using the field selection in the Point Style column.

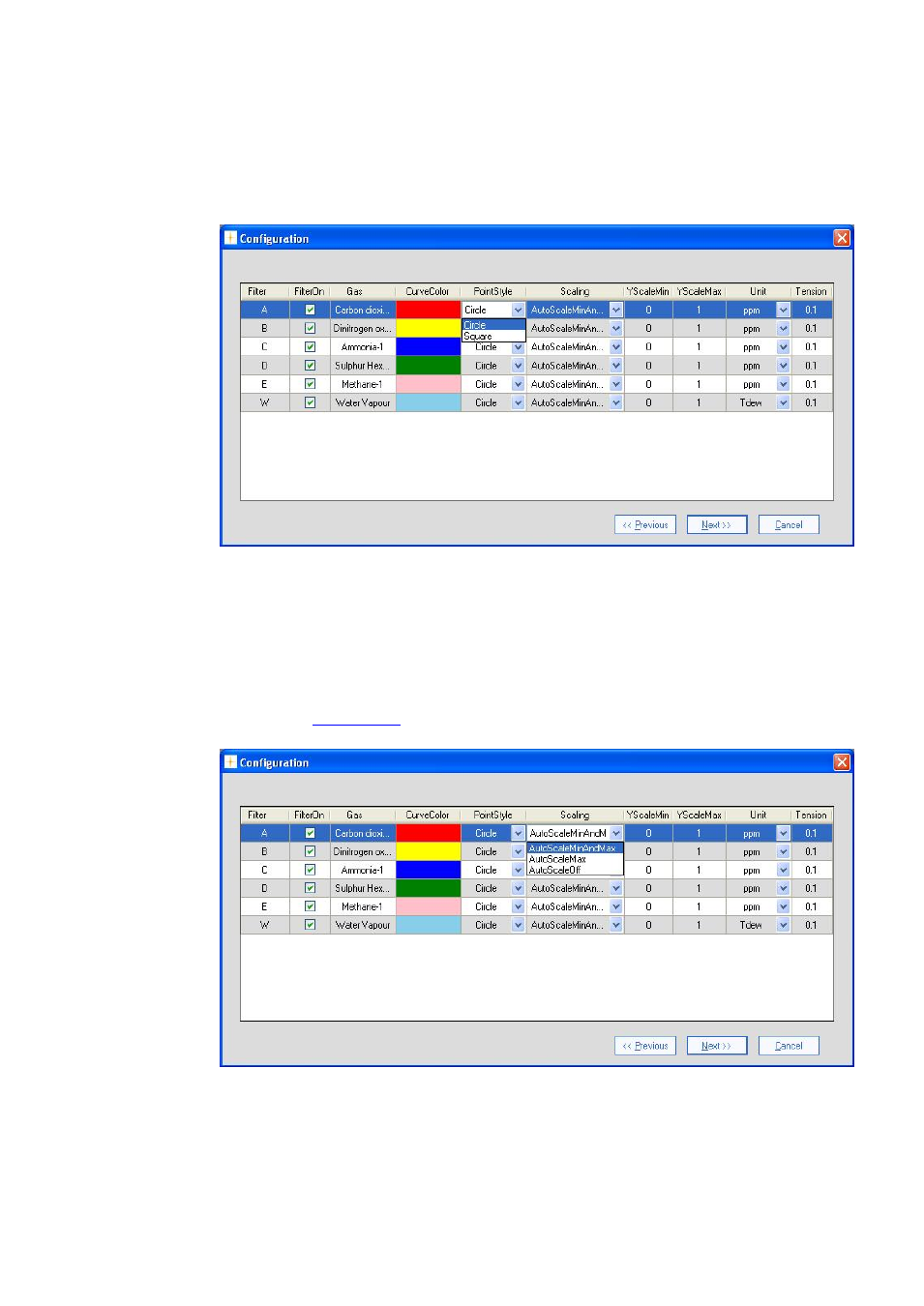

Figure 4.12 Change the style of the measurement points
Scaling
The scaling on the Y-axis can be set to AutoScaleMinAndMax,
AutoScaleMax or AutoScaleOff in the field selection individually for
each filter in the Scaling column. The possible scaling types are
described in Table 4.1 .
Figure 4.13 Setting the scaling of the axis
