A specific time interval can be selected by entering date and time in the
two fields: From Date and To Date, see Figure 4.35.

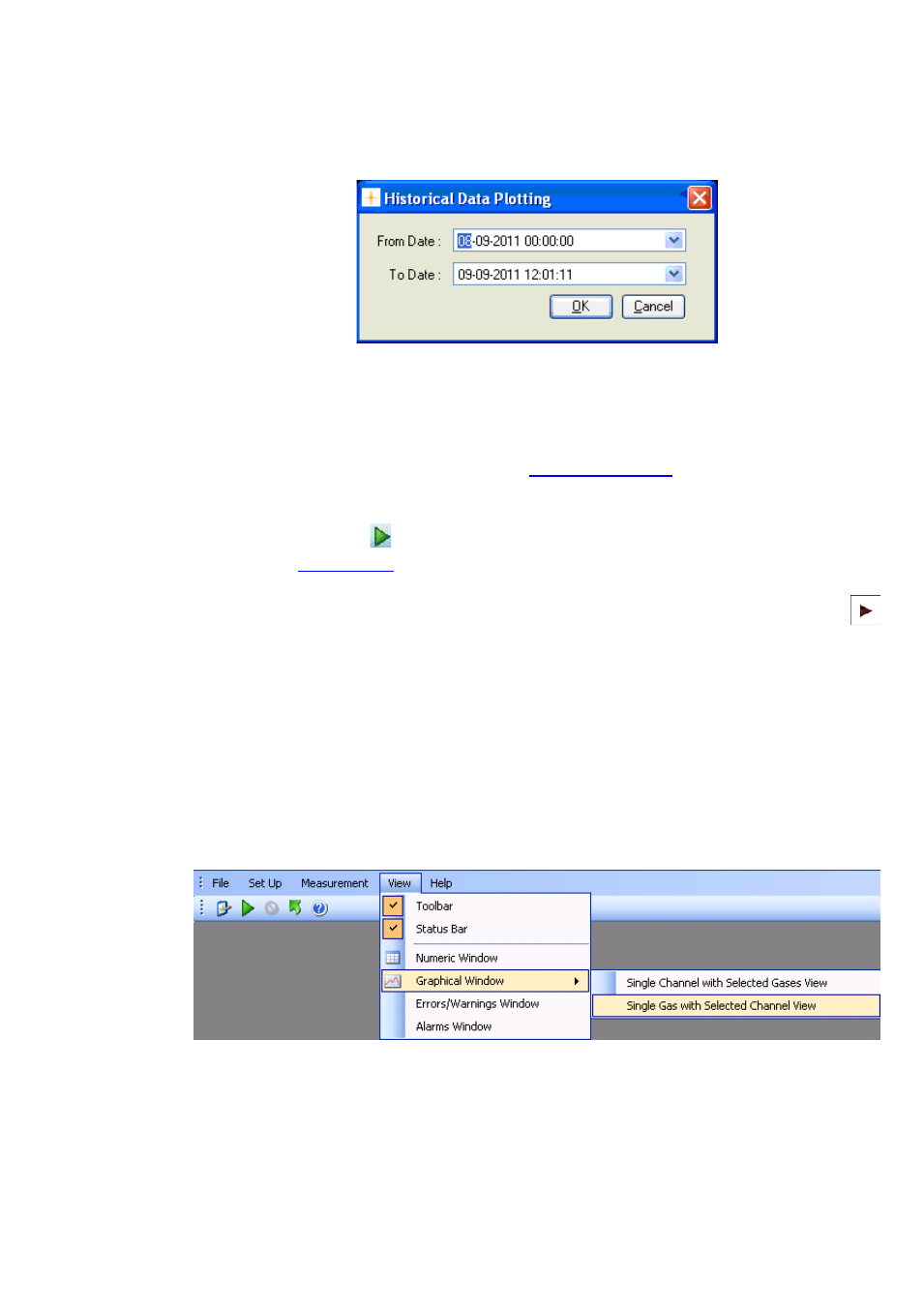

Figure 4.35 Select time interval for historic data plotting.
Click OK to display the historical data in a graph.
The functions of the icons in the historical window are the same as in
the Real Time Window described in Section 4.2.1.6 .
To continue the measurements performed in the specific task, press the
green arrow icon or select Start in the Measurement drop down
menu, see Figure 4.3 .
To display the incoming measuring data (real time data) select the
icon.
4.2.2 Presentation of Data in Graphical Window Gas-
View
To display measurement data graphically channel-wise select Graphical
Window>Single Gas with Selected Channel View in the View pull-
down menu. (See Figure 4.36)
Figure 4.36 View pull-down: Graphical Window>Single Gas with
Selected Channel View
