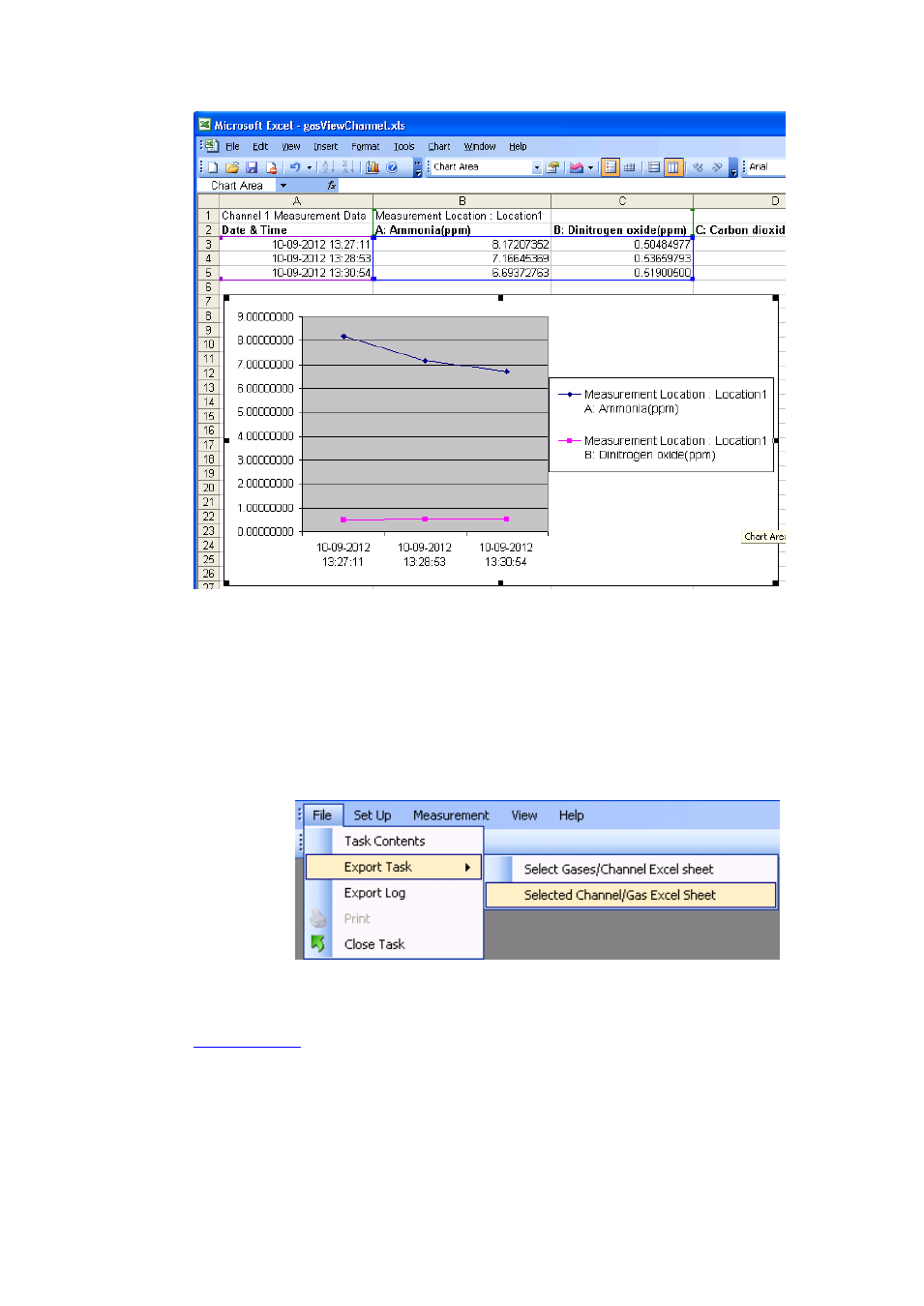

Figure 4.89 Channel measurement data in Excel with graph.
4.5.2 Export Task (Gas view)
The measurement data export can be initiated by using the File menu
pull-down Export Task>Select Channel/Gas Excel Sheet, see Figure
4.90.
Figure 4.90 File pull-down: Export Task>Select Channel/Gas Excel Sheet
Select the gases for which measurements data is to be exported, see
Figure 4.91 .
