4.2.2.8
User Events in the graphical window (Gas view)
If an event occurs or a changed condition happened during a
measurement task, it is possible to indicate this event by using the User
Event function.
To insert a user event press the right mouse button while placing the
cursor on the measurement point where the event should be added and
select Add UserEvent, see Figure 4.56.

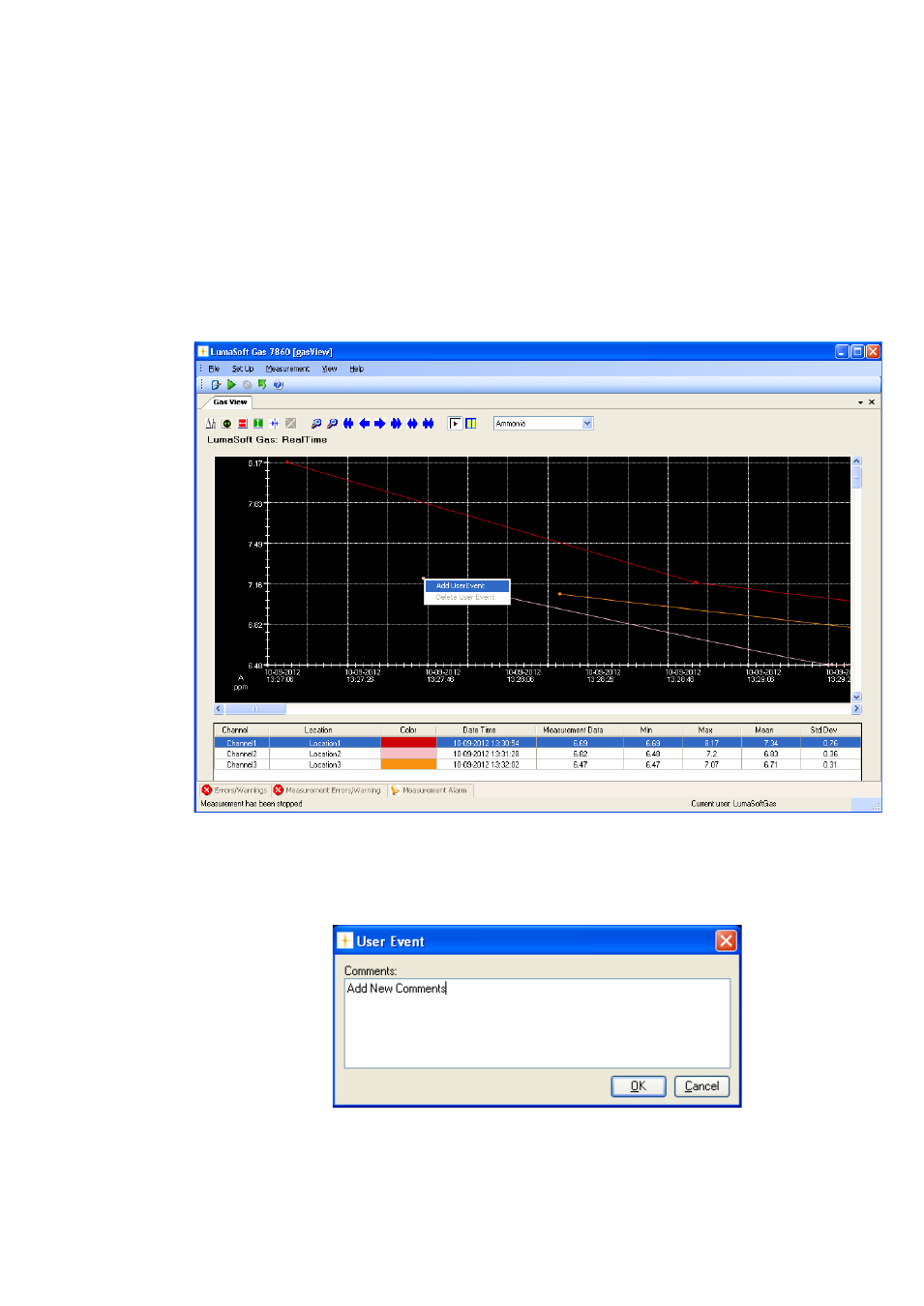

Figure 4.56 Insert User Event by pressing the right mouse button.
The following window, see Figure 4.57, will appear to add a comment to
be displayed for this specific user event.
Figure 4.57 Add a comment to be displayed for the user event
