Chapter 4
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 102 of 194
Auto Hide icon or by selecting Errors/Warnings Window in the
View drop down menu, see Figure 4.74.

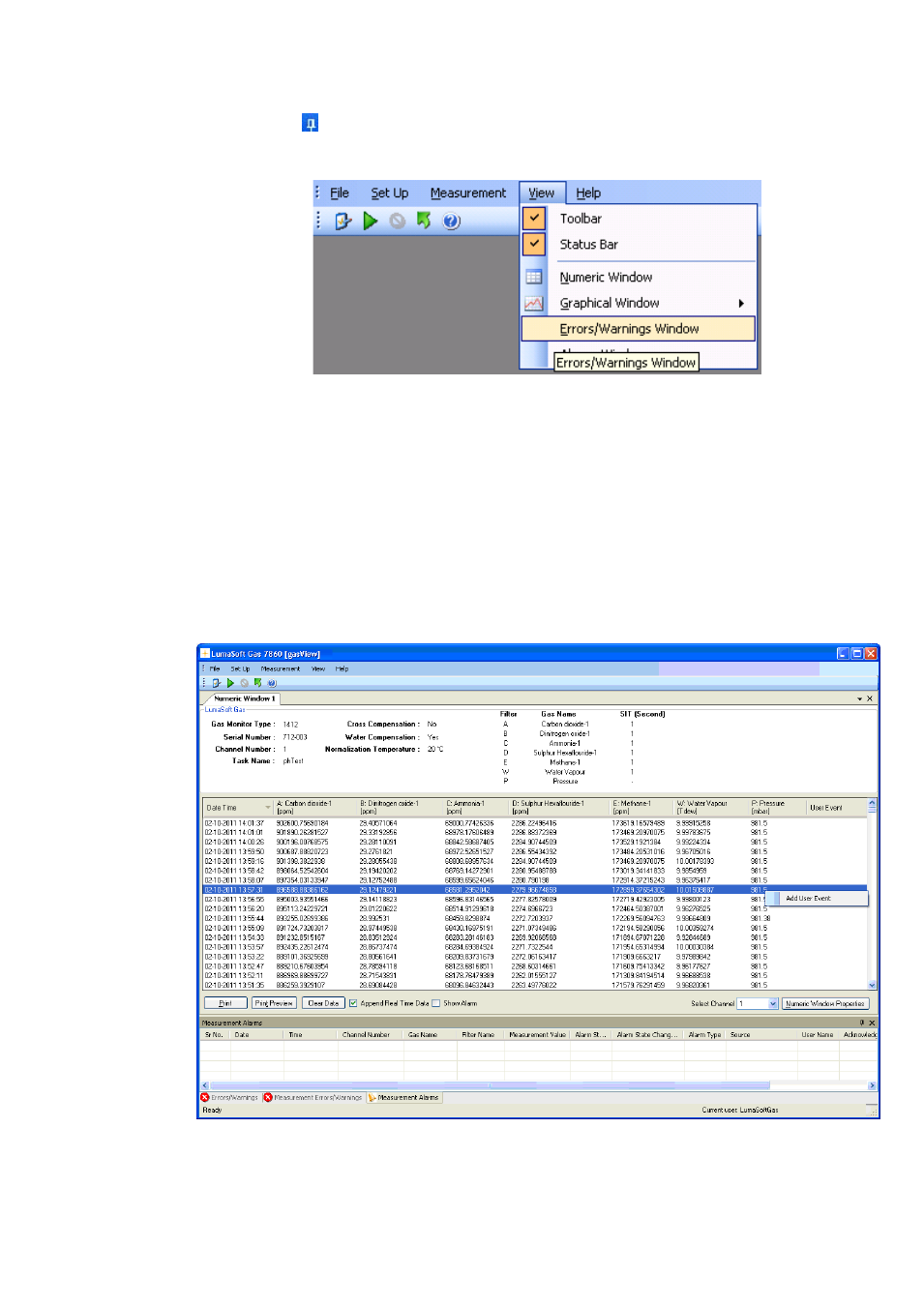

Figure 4.74 View menu: Errors/Warnings Window
4.3.3 User Events in the numeric window
If an event occurs or some conditions are changed during a
measurement task it is possible to indicate this event by using the User
Event function.
To insert a user event press the right mouse button while placing the
cursor on the measurement point where the event should be added and
then select Add User Event, see Figure 4.75.
Figure 4.75 To add a User Event
