Chapter 4
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 87 of 194

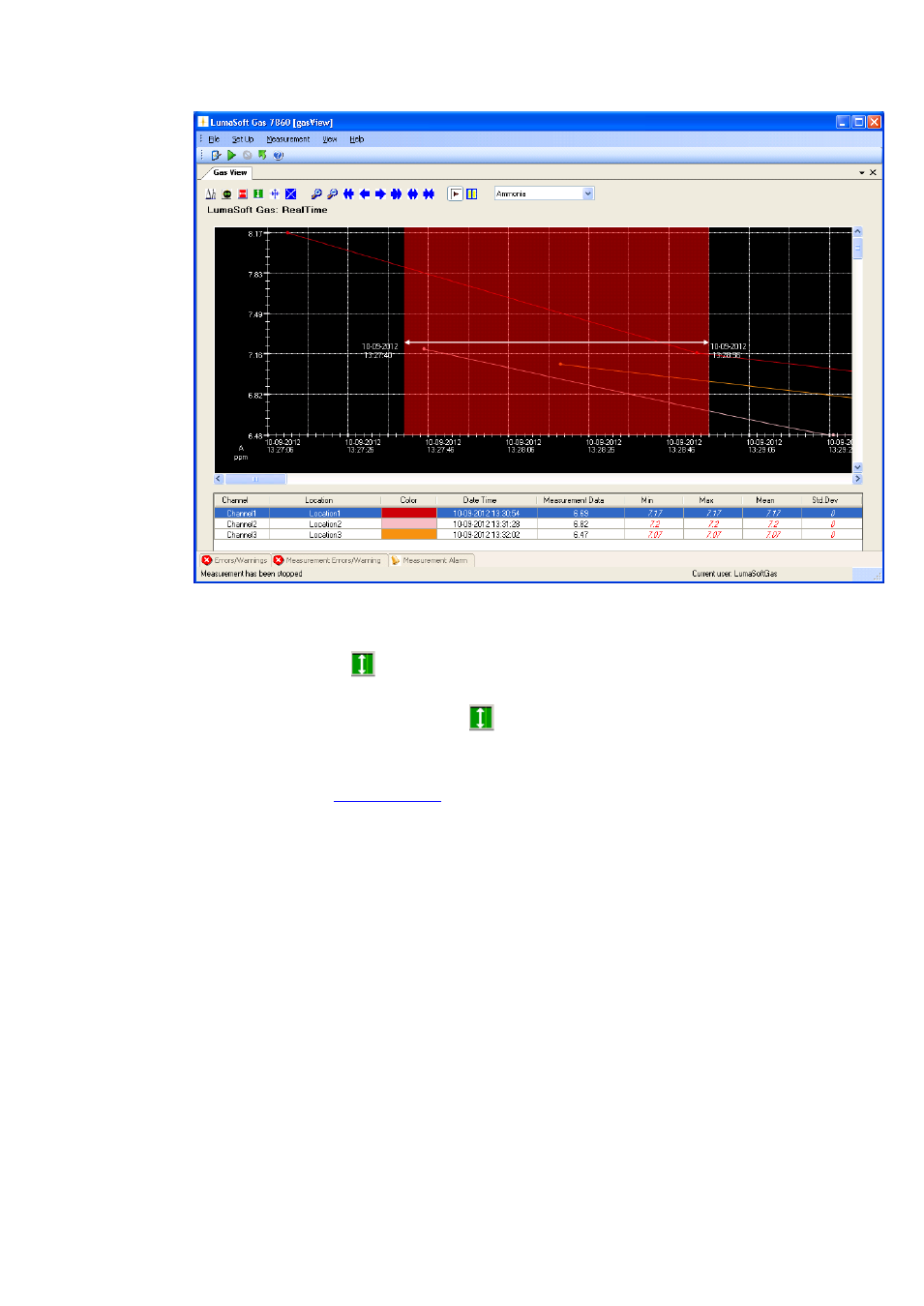

Figure 4.51 Select two measurement points in the graphic window to get
the difference in time
Y Delta Cursor
Press the Y Delta Cursor
icon and select two points where the
difference in concentration is needed. A green area will appear between
the two points and the min and max value in concentration will be
displayed, see Figure 4.52 .
By double-clicking on a Channel in the middle window it is selected for
which Gas the min and max concentrations is displayed.
