Chapter 5
_________________________________________________________________________
________________________________________________________________________
BE6027-12 LumaSoft Gas Software LumaSense Technologies A/S
7810 and 7860 Page 126 of 194
Search for a folder where the task should be stored, and type in a name
for the task in the field: File Name, see Figure 5.10 .
The default file name for the excel file is the name of the export task.
Press the Save soft-key to save the Excel file, see Figure 5.10 .
Press Close (see Figure 5.9) when the Excel file has been exported.
The exported task can be opened in Excel format from the above
selected folder.

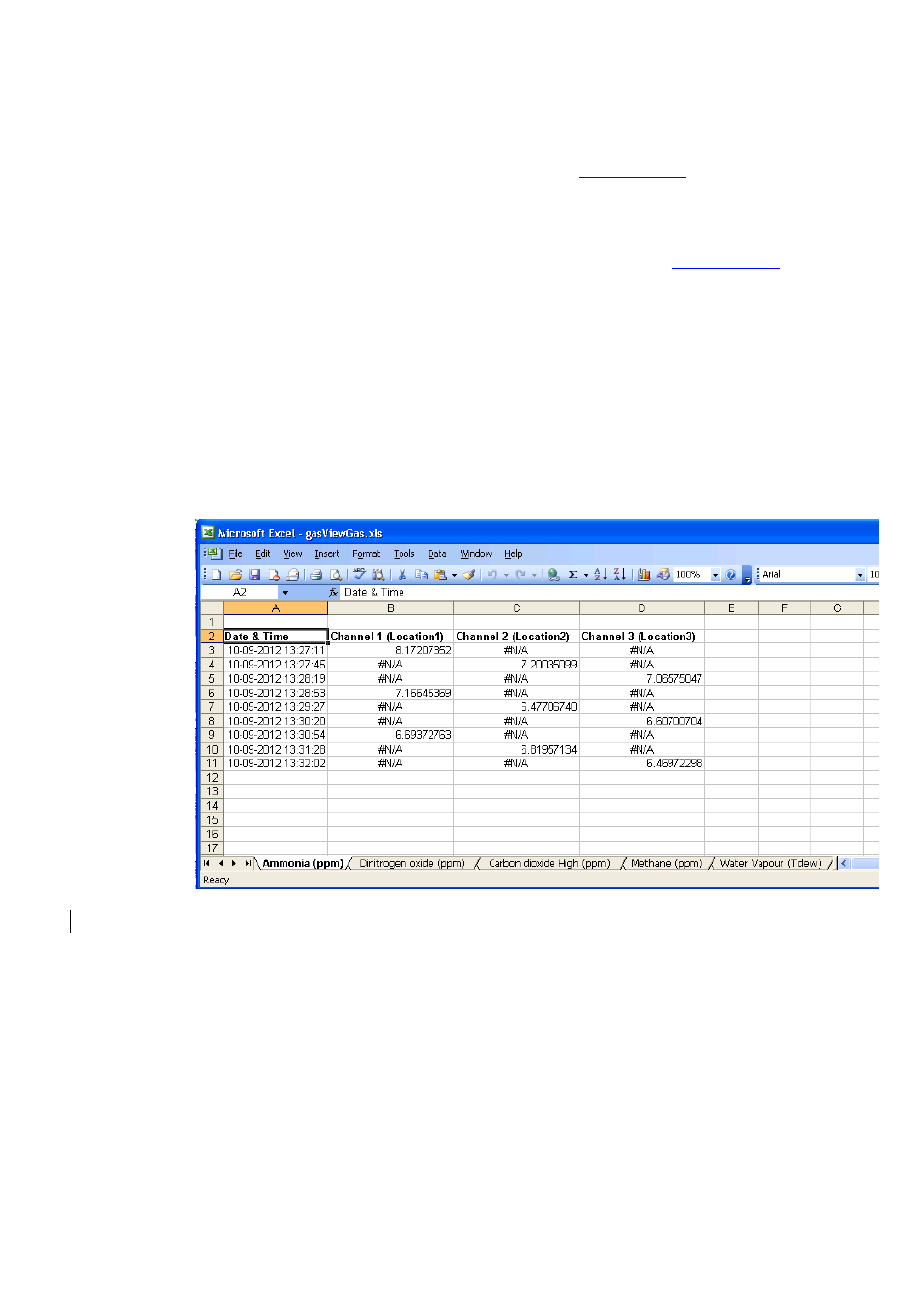

The export Excel workbook file consists of a tab for each gas, see Figure
5.11.
Each measurement is time stamped.
Figure 5.11 Excel file: Measurement data tab.
