LumaSense Technologies LumaSoft Gas Multi Point 7860 User Manual
Page 103
Chapter 4
_________________________________________________________________________
________________________________________________________________________
BE6027-12
LumaSoft Gas Software
LumaSense Technologies A/S
7810 and 7860
Page 103 of 194

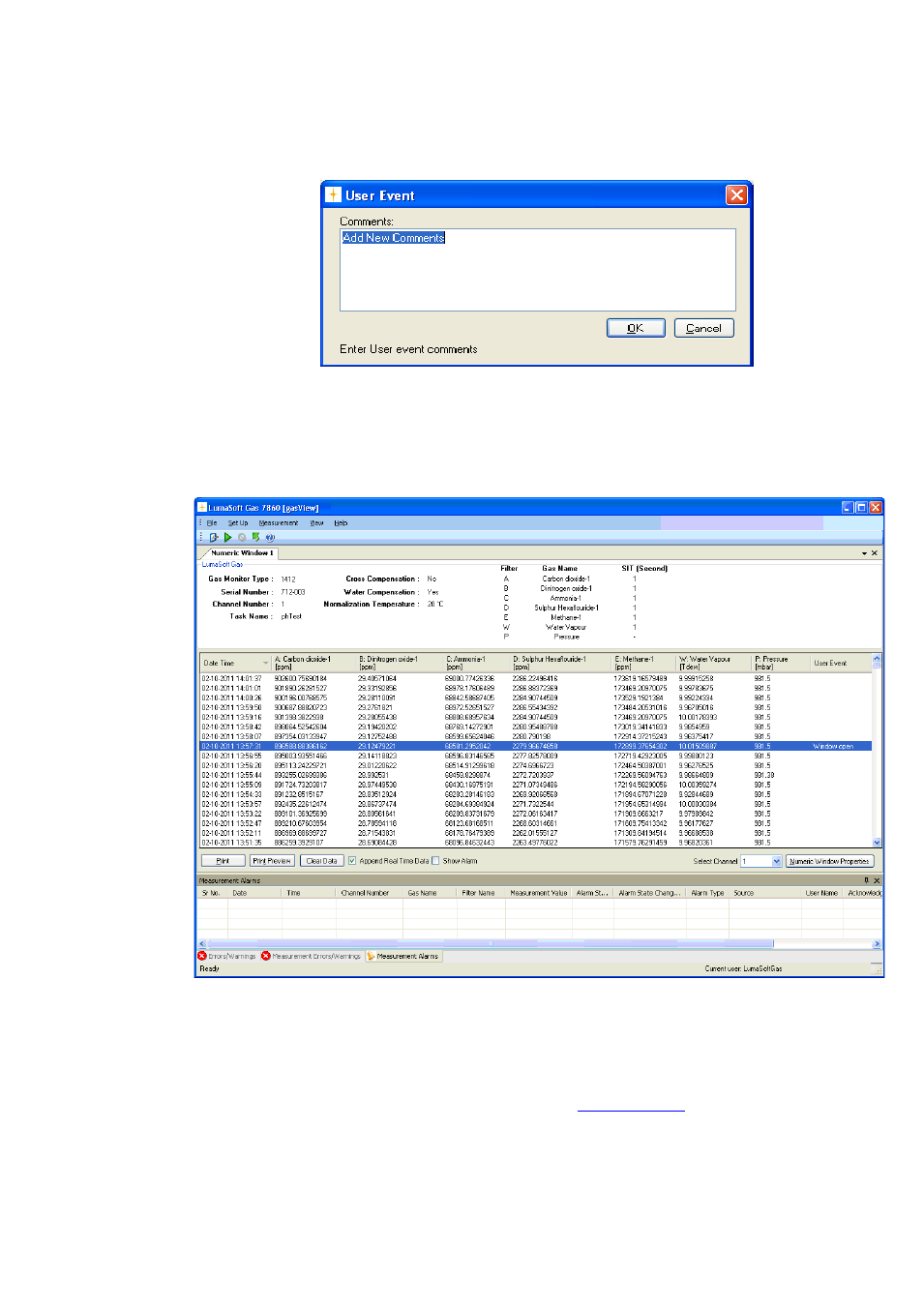

The following window will appear, see Figure 4.76. Add a comment
which will be displayed for this specific user event.
Figure 4.76 Add a comment to be displayed for the user event
Press OK to proceed. The user event which has been set up will be
shown next to the measurement point, to which it belongs (here the
user event “window open” has been added, see Figure 4.77.
Figure 4.77 The User Event “Window open” has been added to a
measurement point
An user event can be edited or deleted by pressing the right mouse
button while placing the cursor on the event and selecting either Edit
User Event or Delete User Event, see
