<7. Startup>
7-3
IM 11M12A01-02E
8th Edition : Jan.13,2012-00
7.4
Touchpanel Switch Operations
7.4.1
Basic Panel and Switch
The converter uses a touchpanel switch which can be operated by just touching the panel
display. Figure 7.3 shows the Basic panel display. The switches that appear in the switch display
area vary depending on the panel display, allowing all switch operations. Table 7.1 shows the
switch functions.
F7.3E.ai
Tag:
21.0
% O
2
17.43mA -Output1
17.43mA -Output2
Tag name display area
Primary value
Secondary value
Tertiary value
Switch display area
Alarm and error
display area

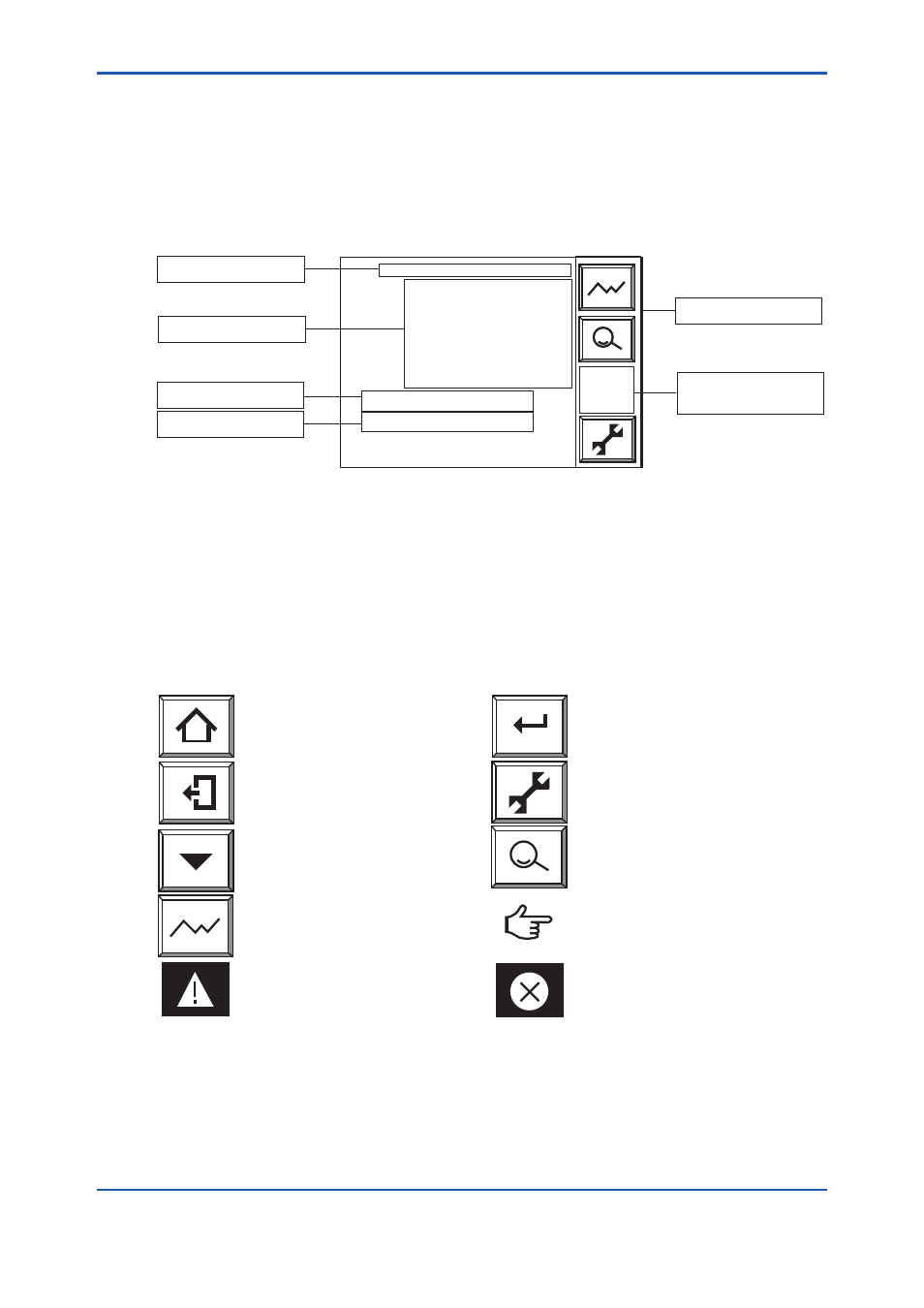

Figure 7.3 Basic Panel Display
Tag name display area: Displays the set tag name (Refer to Section 10.1.4, Entering Tag Name).
Primary to tertiary value display items: Displays the selected item. (Refer to Section 7.9, Setting
Display Item.)
Switch display area: Displays switches and functions selected according to the panel display.
Alarm and error display area: Displays an error if an alarm or error occurs. If you touch this area,
the details of the error or alarm are then displayed.
Table 7.1
Switches and Their Functions
Enter
T7-1E.ai
Home key:
Returns to the Execution/Setup display.
Enter key:
Enters the input value and sets up the
selected item.
Reject key:
Moves back to the previous display.
Setup key:
Used to enter the Execution/Setup display.
Cursor key:
Moves the cursor down.
Detailed-data key:
Displays the analog input value.
Graph display key:
Displays a trend graph.
Cursor:
Points the cursor at the currently
selected item.
Alarm:
Displayed if an alarm arises.
Error:
Displayed if an error occurs.
