<2. Specifications>
2-26
IM 11M12A01-02E
8th Edition : Jan.13,2012-00
2.7.7

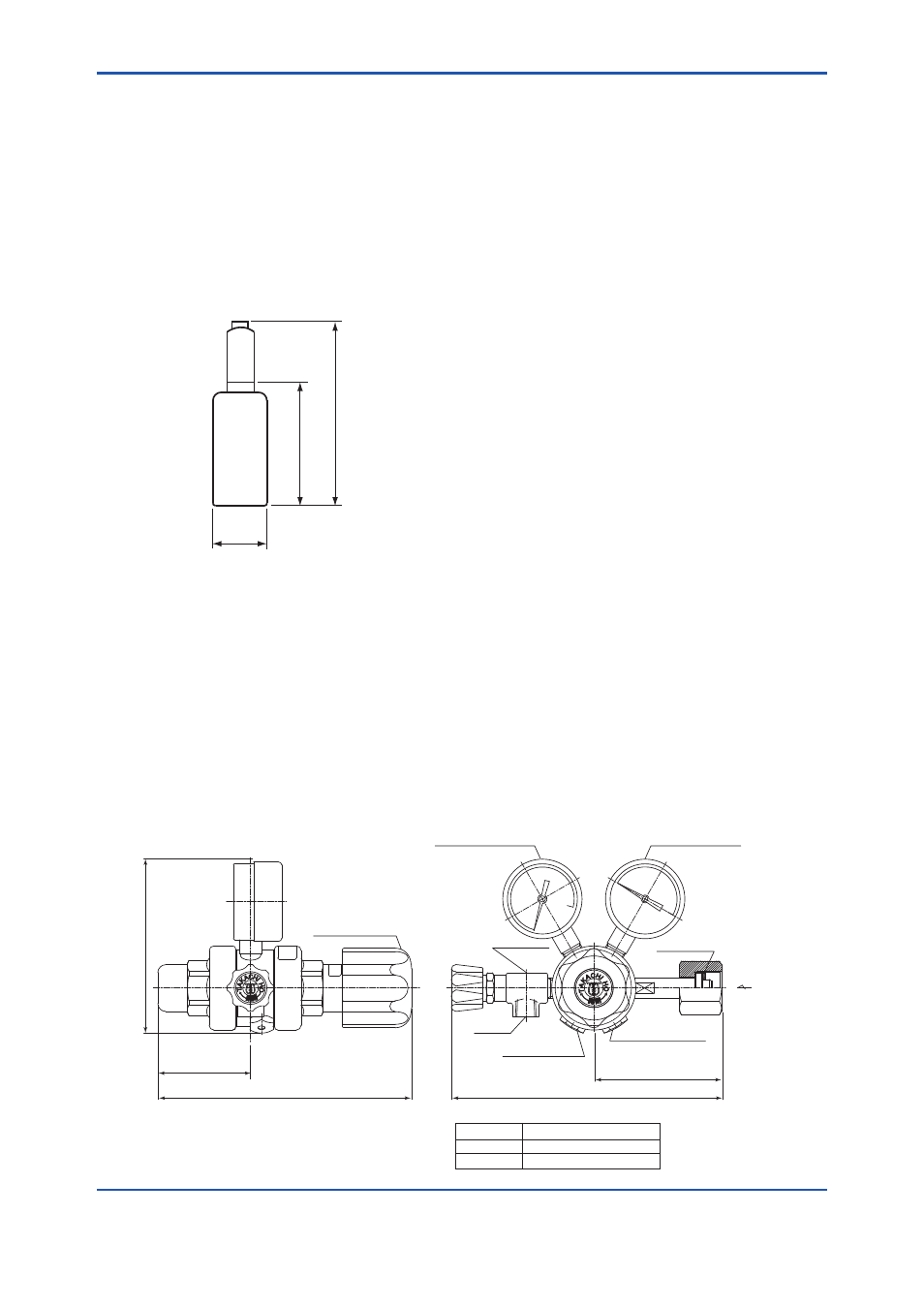

Zero Gas Cylinder (G7001ZC)
The gas from this cylinder is used as the calibration zero gas and detector purge gas.
Standard Specifications
Capacity:
3.4 l
Filled pressure:
9.8 to 12 MPa G
Composition:
0.95 to 1.0 vol% O
2
in N
2
Weight:
Approx. 6 kg
(Note) Export of such high pressure filled gas cylinder to most countries is prohibited or restricted.
485
325
Φ140
Unit : mm
F2-13E.ai
2.7.8
Cylinder Pressure Reducing Valve
(G7013XF, G7014XF)
This pressure reducing valve is used with the zero gas cylinders.
Standard Specifications
Primary Pressure:
Max. 14.8 MPa G
Secondary Pressure: 0 to 0.4 MPa G
Connection:
Inlet; W22 14 threads, right hand screw
Outlet; Rc1/4 or 1/4FNPT
Material:
Brass body
HI H
AC
AKT
O
Reducing valve handle
W22 (Righthand screw)
Stop valve
Approx.1
12
IN
* Outlet
Part No.
G7013XF
G7014XF
* Outlet
Rc1/4
1/4 NPT female screw
Secondary pressure gauge
Primary pressure gauge
Secondary safety valve
Primary safety valve
Approx. 82
Approx. 59
Approx. 163
Approx. 174
