Page 48: Caution

<3. Installation>
3-2
IM 11M12A01-02E
8th Edition : Jan.13,2012-00
(1) Do not mount the probe with the tip higher than the probe base.
(2) If the probe length is 2.5 meters or more, the detector should be mounted vertically
(no more than a 5° tilt).
(3) The detector probe should be mounted at right angles to the sample gas flow or the probe
tip should point downstream.
100 mm
100 mm
F3-1E.ai
(vertical)
Bounds of the probe
insertion hole location
Flange matches
the detector size
(horizontal)
Note
Type
Outside diameter of detector
Standard
50.8 mm in diameter (Note)
With dust filter
51 mm in diameter (Note)
With probe protector 60.5 mm in diameter (Note)
Four-hole flange Eight-hole flange
*1
*1
(Note)
When using the detector with pressure compensation, ensure that the flange gasket does not block the reference gas outlet on
the detector flange. If the flange gasket blocks the outlet, the detector cannot perform pressure compensation.
Where necessary, make a notch in the flange gasket. Confirm the outside dimensions of the detector in Section 2.2 before
installation.

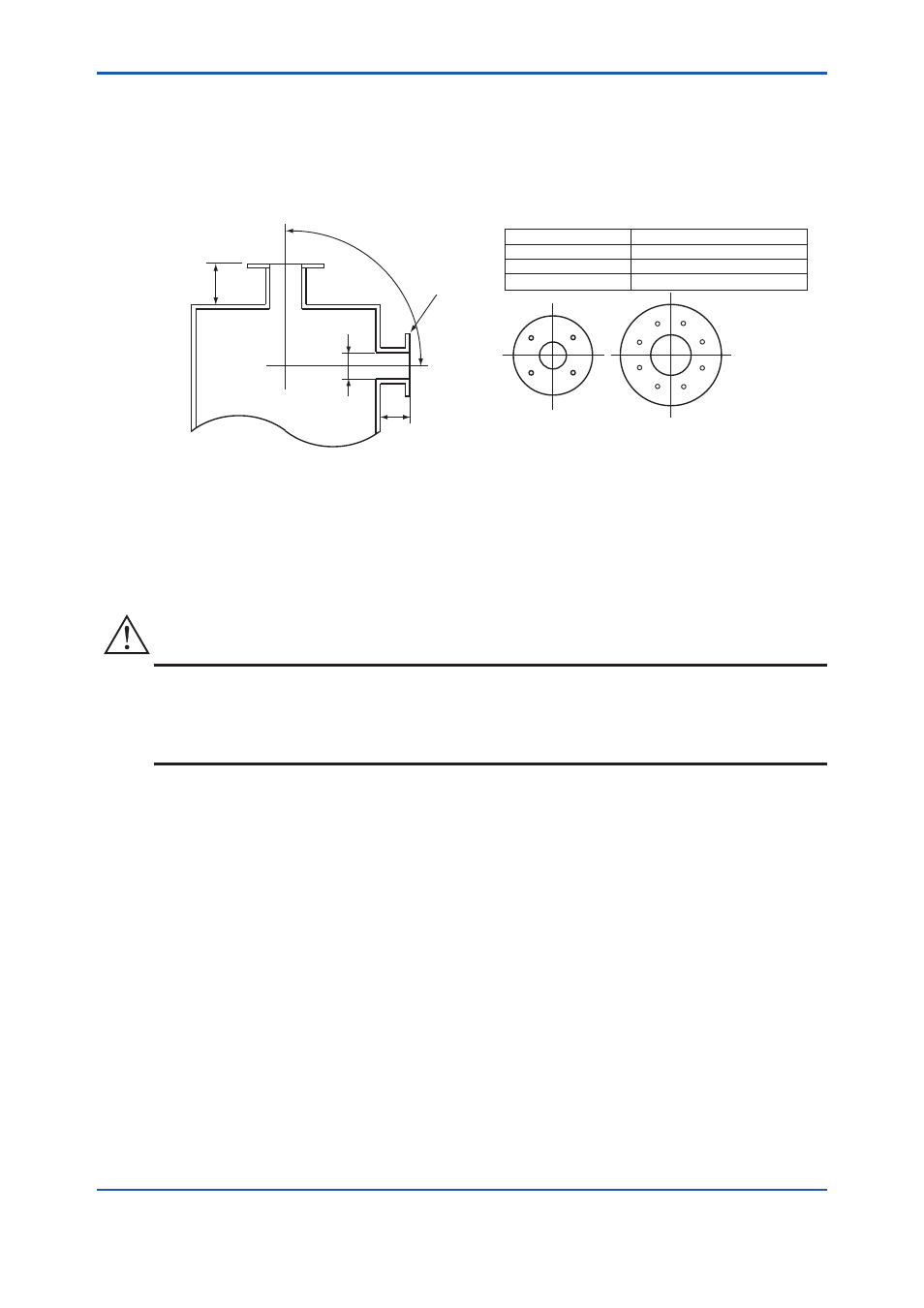

Figure 3.1 illustrates an example of the probe insertion hole.
3.1.3
Installation of the Detector
CAUTION
• The cell (sensor) at the tip of the detector is made of ceramic (zirconia). Do not drop the
detector, as impact will damage it.
• A gasket should be used between the flanges to prevent gas leakage. The gasket material
should be heatproof and corrosion-proof, suited to the characteristics of the sample gas.
The following should be taken into consideration when mounting the general use detector:
If a dust filter (see Section 2.7.1) is used, make sure it is properly attached to the detector.
Refer to Section 3.1.4 for installation of the dust filter.
(2) Where the detector is mounted horizontally, the calibration gas inlet and the reference gas
inlet should face downward.
3.1.4
Installation of the Dust Filter (K9471UA), Dust Guard
Protector (K9471UC), Probe Protector ZO21R
