<2. Specifications>
2-27
IM 11M12A01-02E
8th Edition : Jan.13,2012-00
2.7.9

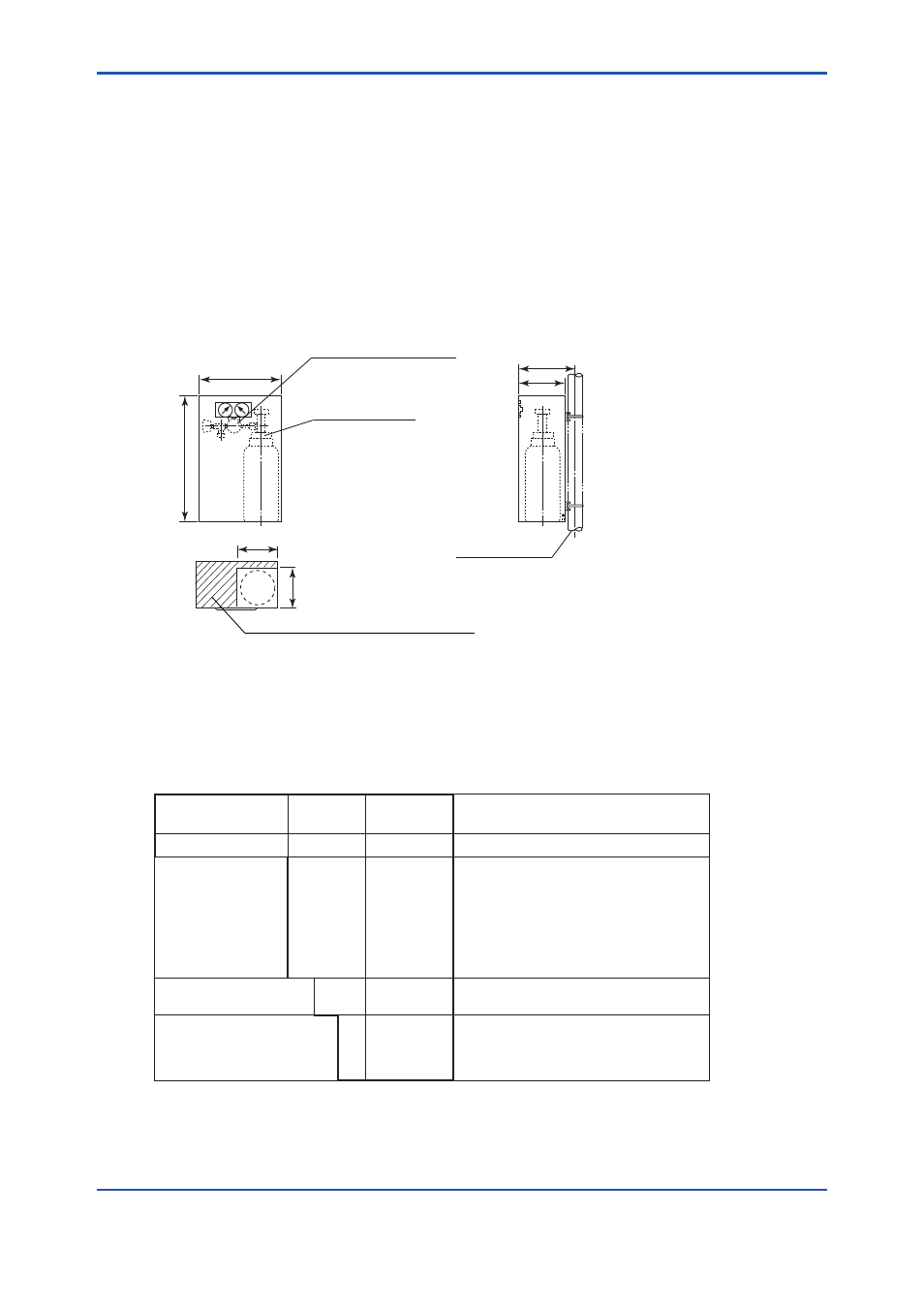

Case Assembly for Calibration Gas Cylinder
(E7044KF)
This case assembly is used to store the zero gas cylinders.
Standard Specifications
Installation:
2B pipe mounting
Material:
SPCC (Cold rolled steel sheet)
Case Paint:
Baked epoxy resin, Jade green (Munsell 7.5 BG 4/1.5)
Weight:
Approx. 10 kg with gas cylinder
(Note) Export of such high pressure filled gas cylinder to most countries prohibited or restricted.
324
496
225
180
Pressure reducing valve
Zero gas cylinder
2B mounting pipe
( Ø60.5 )
(G7001ZC)
( G7013XF / G7014XF )
F2-15E.ai
(Note)The zero gas cylinder and the reducing valve are not included in the E7044KF (case assembly)
(158.3)
(160)
The oblique line is an opening portion.
2.7.10 ZR22A Heater Assembly
Model and Codes
Style: S2
Model
Suffix code Option code
Description
ZR22A
- - - - - - - - - - - - - - - - - - - - Heater Assembly for ZR22G
Length (*1)
-015
-040
-070
-100
-150
-200
-250
-300
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
0.15 m
0.4 m
0.7 m
1 m
1.5 m
2 m
2.5 m
3 m
Jig for change
-A
-N
- - - - - - - - - - -
- - - - - - - - - - -
with Jig (*2)
None
Reference gas (*3)
-A
-B
-C
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
Reference gas Natural convention,
External connection (Instrument air)
Pressure compensated (for ZR22G S2)
Pressure compensated (for ZR22G S1)
*1 Suffix code of length should be selected as same as ZR22G installed.
*2 Jig part no. is K9470BX to order as a parts after purchase.
*3 Select appropriately among “-A”, “-B”, “-C” according to the reference gas supply method and style.
(Note) The heater is made of ceramic, do not drop or subject it to pressure stress.
