<2. Specifications>
2-25
IM 11M12A01-02E
8th Edition : Jan.13,2012-00
2.7.6
Air Set
This set is used to lower the pressure when instrument air is used as the reference and span
gases.
Standard Specifications
• G7003XF, K9473XK
Primary Pressure:
Max. 1 MPa G
Secondary Pressure: 0.02 to 0.2 MPa G
Connection:
Rc1/4 or 1/4FNPT with joint adapter
Weight:
Approx.1 kg
Part No.
Description
G7003XF
Joint: Rc 1/4, Material: Zinc alloy
K9473XK
Joint: 1/4 FNPT with adapter, Material: Zinc alloy, Adapter: SUS 316
• G7004XF, K9473XG
Primary Pressure:
Max. 1 MPa G
Secondary Pressure: 0.02 to 0.5 MPa G
Connection:
Rc1/4 or 1/4FNPT with joint adapter
Weight:
Approx. 1 kg
Part No.
Description
G7004XF
Joint: Rc 1/4, Material: Zinc alloy
K9473XG
Joint: 1/4 FNPT with adapter, Material: Zinc alloy, Adapter: SUS 316
l

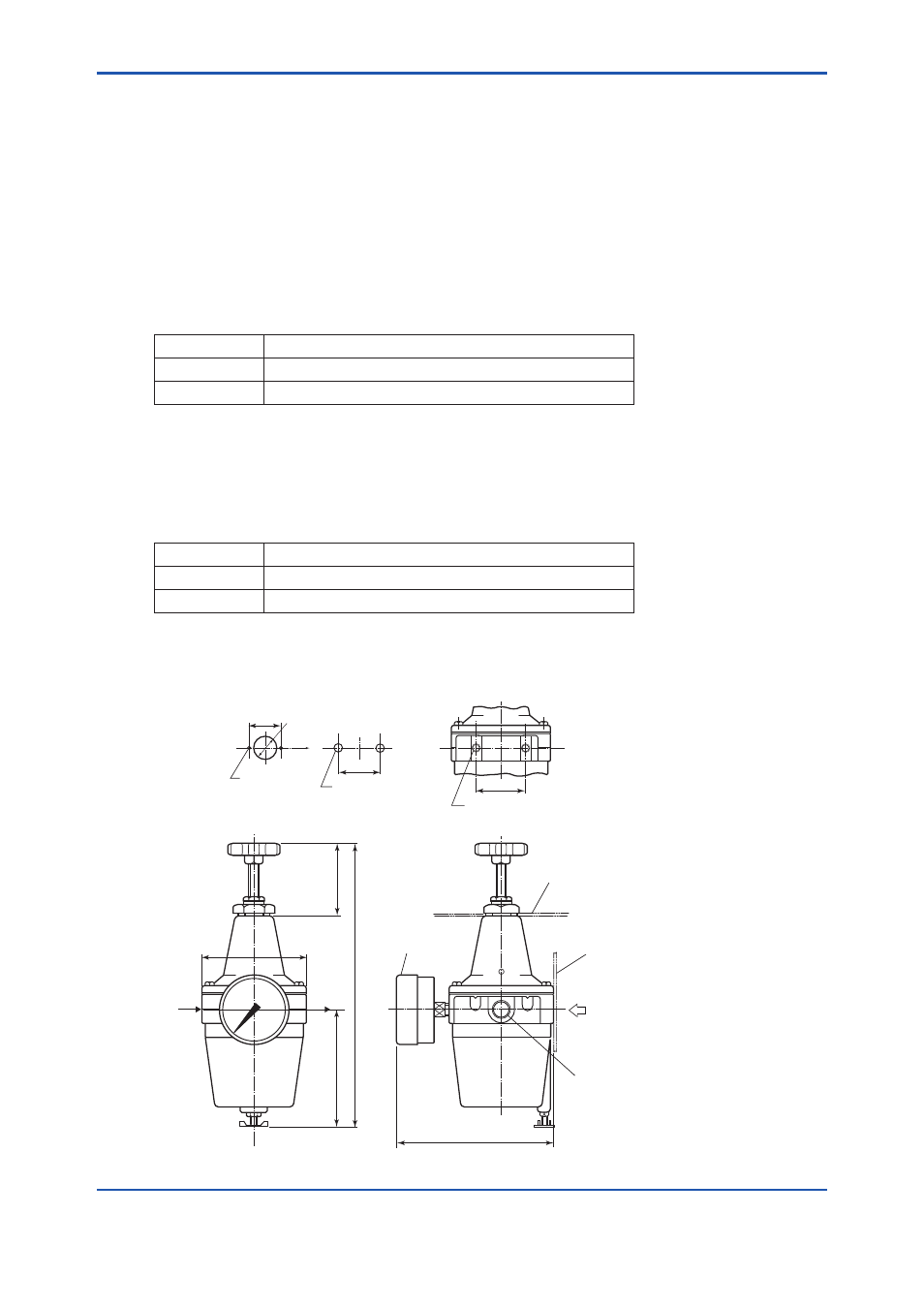

External Dimensions
Ø74
Primary
Secondary
88
Max. 210
max. 55
Approx. 122
Secondary
pressure
gauge
Panel (Horizontal mounting)
Panel (Vertical mounting)
G7003XF, G7004XF: Rc 1/4
K9473XK, K9473XG: 1/4NPT connector
airset.ai
A
22
ш15
2-ш2.2
+0.5
-0
2-ш6.5
40
2-ш6 screw depth 8
40
Horizontal
mounting
Vertical
mounting
Panel cut dimensions
View A
Unit : mm
