<3. Installation>
3-9
IM 11M12A01-02E 8th Edition : Jan.13,2012-00

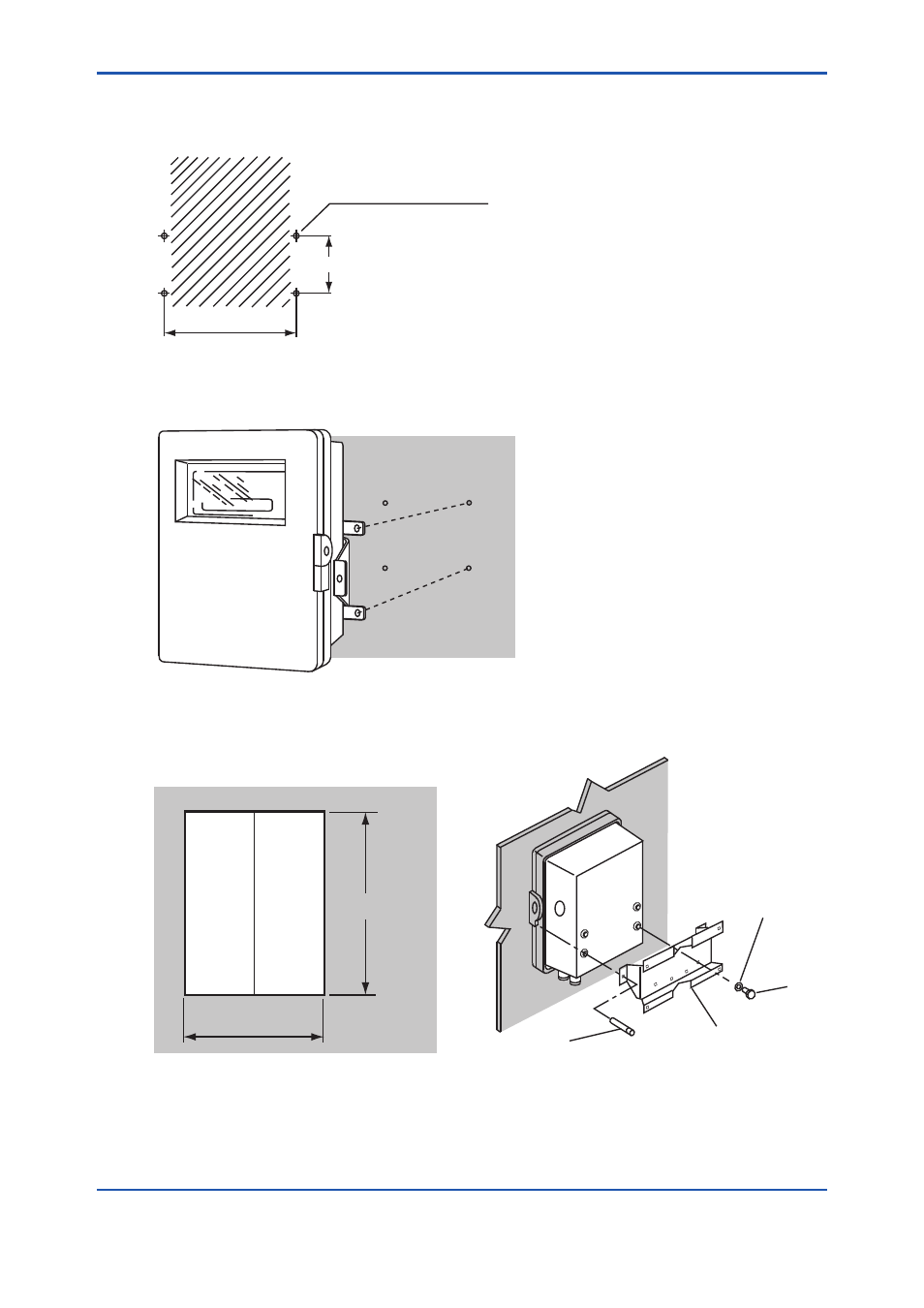

(1) Drill mounting holes through the wall as shown in Figure 3.8.
190
126.5
Four holes 6 mm in diameter
for M5 screws
Unit: mm
F3-8E.ai
Figure 3.8 Mounting holes
(2) Mount the converter. Secure the converter on the wall using four screws.
Note: For wall mounting, the bracket and bolts are not used.
F3-9E.ai
Figure 3.9 Wall Mounting
(1) Cut out the panel according to Figure 3.10.
274+2
0
183
+2
0
F3-10E.ai
Unit: mm
Clamp screw
Washer
Bolt
Fitting
F3-11E.ai Figure 3.10 Panel cutout sizes Figure 3.11 Panel mounting
(2) Remove the fitting from the converter by loosening the four screws.
(3) Insert the converter case into the cutout hole of the panel.
(4) Attach the mounting fitting which is once removed in step (2) again to the converter.
(5) Firmly fix the converter to the panel. Fully tighten the two clamp screws to hold the panel with
the fitting.
