ICE Module
Page 44
L1 COMCHOKE_8_USB
1
4
2
3
USB7- 3
USB7+ 3
+V3.3
R71 8.2K_4
+V3.3_DUAL
TP40 1
R70 0_4 1 2
PCIE_WAKE_UP# 3,6,10,16
+V3.3
TP38 1
SMB_DAT
SMB_CK
+V1.5
MINICARD_DISABLE# 13
TP96 1
TP97 1
CLK33M_MINICARD 4
CLK100M_PCIEx1_SLOT4- 4
CLK100M_PCIEx1_SLOT4+ 4
R72 0_4 1 2
TP39 1
+V1.5
R122 0_4 1 2
R123 0_4 1 2
+V3.3
PCIE_WAKE_UP#
CN1
MINI PCIE CON_9MM_0.8
3.3V_1
2
WAKE#
1 GND0
4
RESERVED_1
3 1.5V_1
6
RESERVED_2
5
UIM_PWR
8
CLKREQ#
7 UIM_DATA
10
GND1
9 UIM_CLK
12
REFCLK-
11
UIM_RESET
14
REFCLK+
13
UIM_VPP
16
GND2
15
GND3
18
UIM_C8
17
W_DISABLE#
20
UIM_C4
19
PERST#
22
GND4
21
3.3VAUX1
24
PERn0
23 GND5
26
PERp0
25 1.5V_2
28
GND6
27 SMB_CLK
30
GND7
29 SMB_DATA
32
PETn0
31 GND8
34
PETp0
33 USB_D-
36
GND9
35 USB_D+
38
RESERVED_3
37 GND10
40
RESERVED_4
39 LED_WWAN#
42
RESERVED_5
41 LED_WLAN#
44
RESERVED_6
43 LED_WPAN#
46
RESERVED_7
45 1.5V_3
48
RESERVED_8
47 GND11
50
RESERVED_9
49 3.3V_2
52
RESERVED_10
51
G
1
5
3
G
2
5
4
+V1.5
LPC_AD1 3,11,13,14,20
LPC_FRAME# 3,11,13,14,20
LPC_AD0 3,11,13,14,20
LPC_AD2 3,11,13,14,20
LPC_AD3 3,11,13,14,20
PCIE_RX3- 3
PCIE_RX3+ 3
PCIE_TX3- 3
PCIE_TX3+ 3
CN1(LATCH)1
MINI PCIE LATCH_DIP
CB_RESET# 3,6,10,11,14,20
CB_RESET#

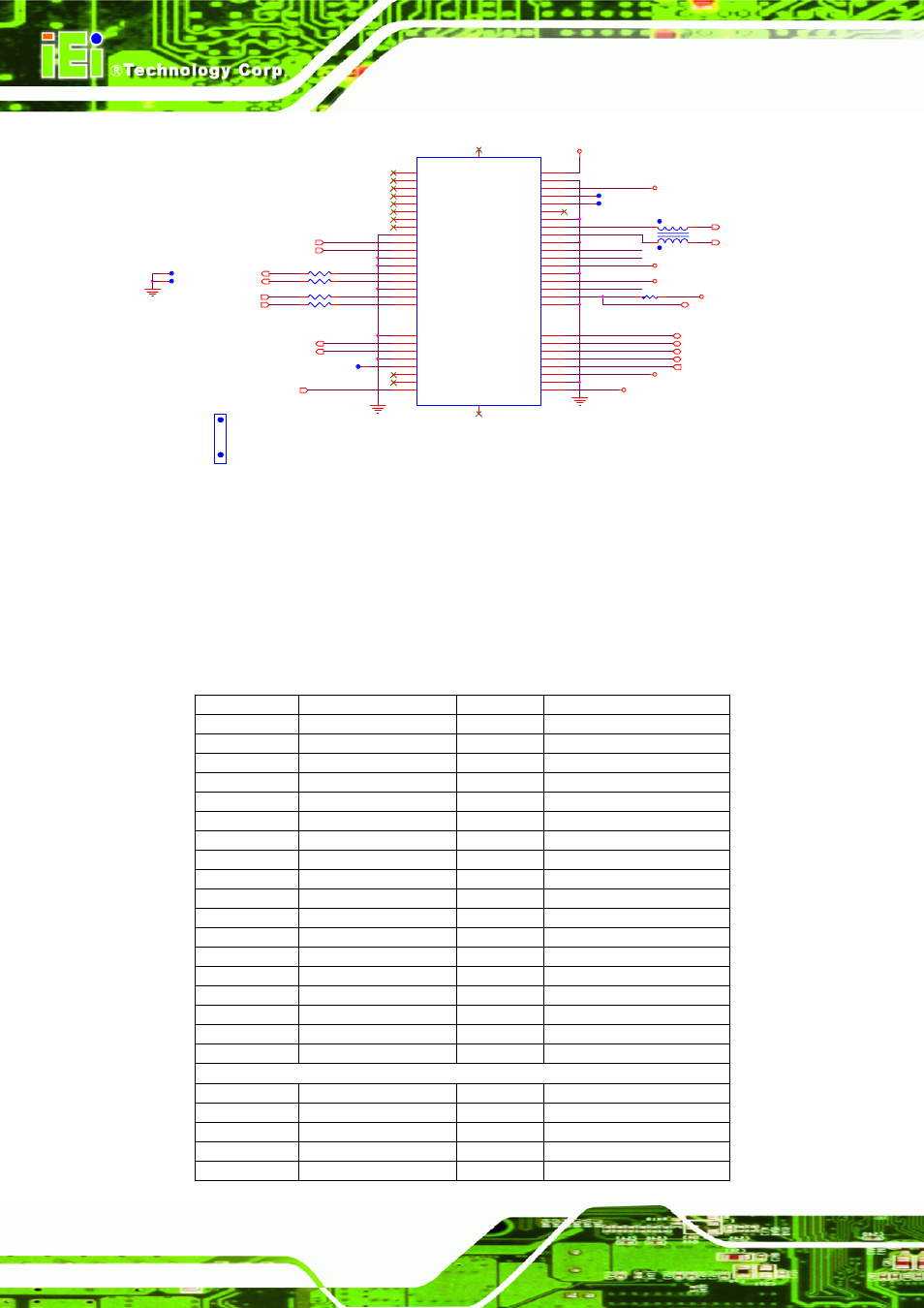

Figure 4-9: Express Card Slot Example
The following sections illustrate signal pin-outs for the system connector. Table 4-7
lists the pin-out for the system connector.
Table 4-7: Mini Card Pin-out
Pin # Signal Pin # Signal
51 Reserved* 52 +3.3V
49 Reserved* 50 GND
47 Reserved* 48 +1.5V
45 Reserved* 46 LED_WPAN#
43 Reserved* 44 LED_WLAN#
41 Reserved* 42 LED_WWAN#
39 Reserved* 40 GND
37 Reserved* 38 USB_D+
35 GND 36 USB_D-
33 PETp0 34 GND
31 PETn0 32 SMB_DATA
29 GND 30 SMB_CLK
27 GND 28 +1.5V
25 PERp0 26 GND
23 PERn0 24 +3.3Vaux
21 GND 22 PERST#
19 Reserved 20 Reserved***
17 Reserved 18 GND
Mechanical Key
15 GND 16 Reserved**
13 REFCLK+ 14 Reserved**
11 REFCLK- 12 Reserved**
9 GND 10 Reserved**
7 CLKREQ# 8 Reserved**
