2.2.2 ICE-9102-1GZ-R10
The ICE-9102-1GZ is shown in Figure 2-3 and the specifications are listed in Table
2-3.

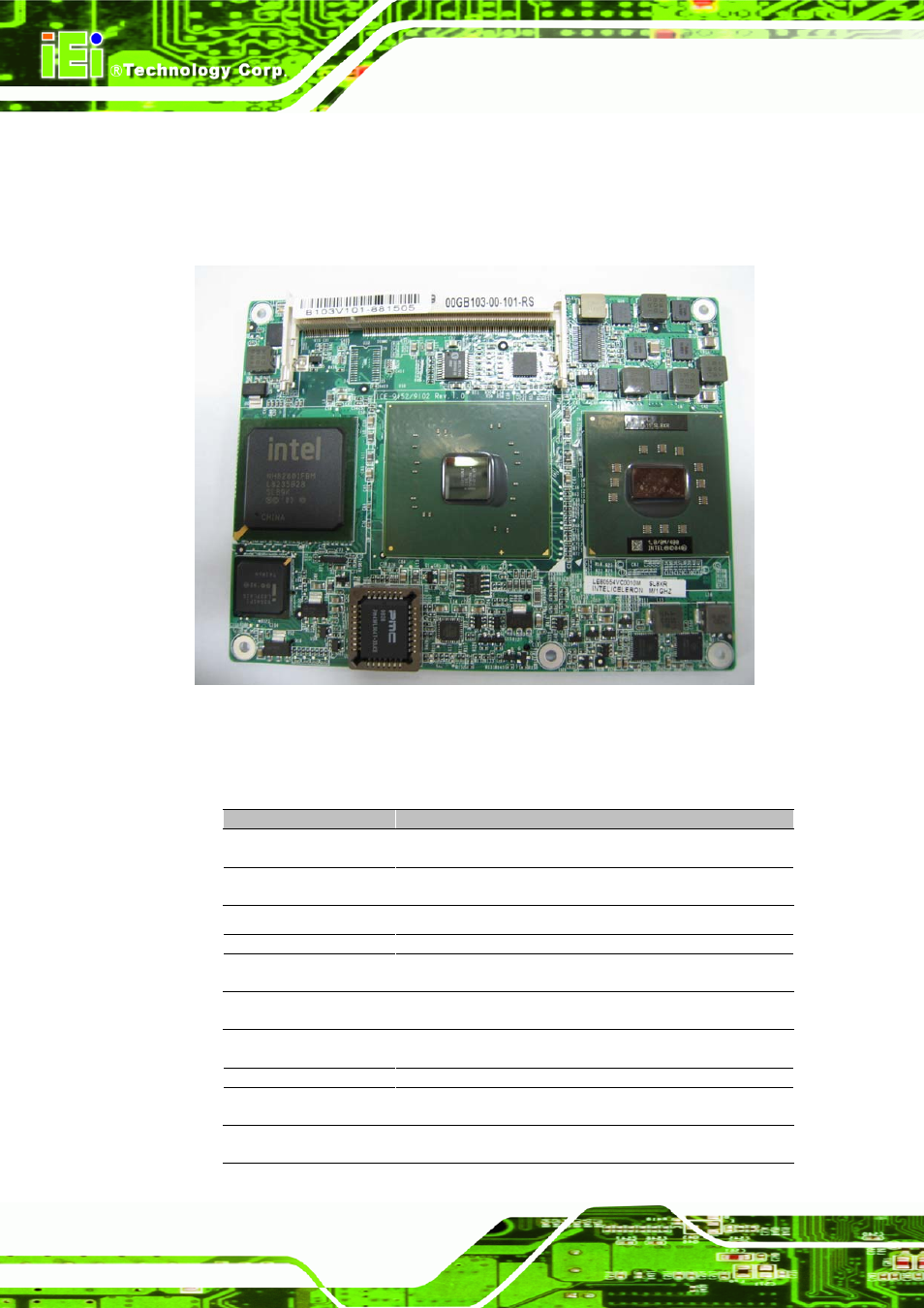

Figure 2-3: ICE-9102-1GZ-R10
Table 2-3: ICE-9102-1GZ-R10 Specification
Item Description
CPU On board Intel® Celeron® M 1GHz zero cache
processor
System Memory One 200-pin 400MHz DDR2 SDRAM SO-DIMM
supported (system max. 2GB)
System Chipset
Intel® 910GMLE + ICH6-M
BIOS AMI Flash BIOS
WatchDog Timer
Software programmable supports 1 ~255 sec. System
reset
Expansion Interface
2 x SATA (Signal to Base Board)
1 x IDE channel (Signal to Base Board)
MIO
4 x PCIe x1 Signal to Base Board
4 x PCI , 32 bit / 33 MHz PCI bus Signal to Base Board
USB 8 x USB 2.0 (Signal to Base Board)
Audio
AC’97 Audio Signal to Base Board (Audio Codec on
Base Board)
Ethernet
One Intel® 82541PI GbE Chipset (co-layout Intel®
82551ER 10/100Mbps Ethernet chipset)
