2.2.4 ICE-ATOM-R10
The ICE-ATOM is shown in Figure 2-5 and the specifications are listed in Table 2-5.

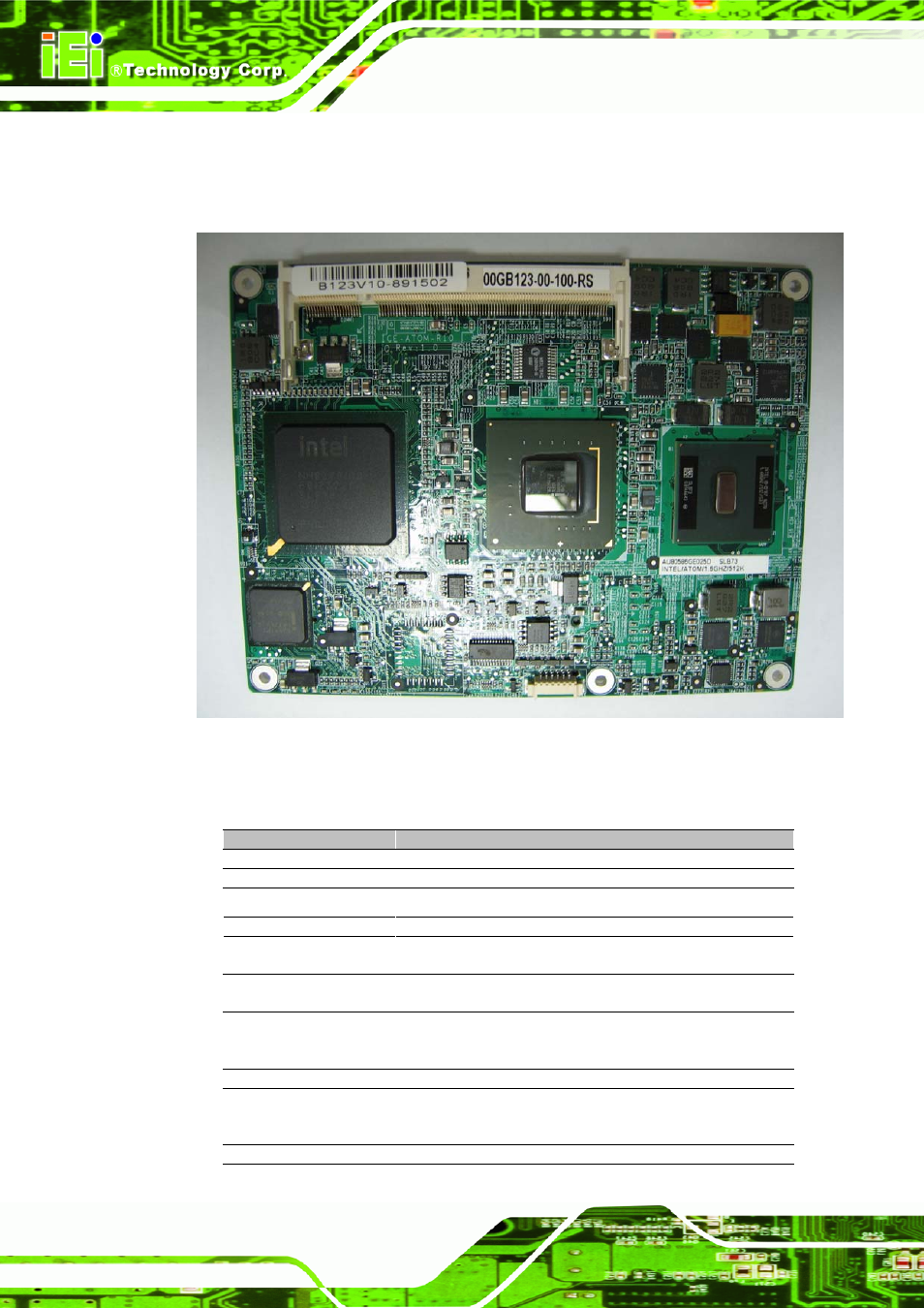

Figure 2-5: ICE-ATOM-R10
Table 2-5: ICE-ATOM-R10 Specification
Item Description
CPU Intel Diamondville-SC support at FSB 533Mhz
System Memory 1x DDR2 SO-DIMM 400/533MHz support up to 2GB
System Chipset
Intel 945GSE + ICH7M
BIOS AMI BIOS
WatchDog Timer
Sofware Programmable support 1~255 sec. System
reset
Audio
HD Audio Signal to Base Board (Audio Codec on Base
Board)
MIO
2 x SATA II (Signal to Base Board)
1 x IDE channel (Signal to Base Board)
USB 8 USB ports, USB 2.0 (Signal to Base Board)
Ethernet
1 x Intel® 82541PI GbE Chipset (co-layout Intel®
82551ER 10/100Mbps Ethernet chipset) (Signal to
Base Board)
Display Analog CRT(VGA) Integrated in Intel® 945GSE (Signal
