2.2.6 ICE-DB-9S-R10
The ICE-DB-9S is a full function carrier board for customers to apply or test the COM
Express module. The carrier board can be used for any combination, including
software and hardware. Using the carrier board to develop and test the ICE module
also can achieve a quicker time to market. The ICE-DB-9S is shown in Figure 2-6 and
the specifications are listed in Table 2-7.

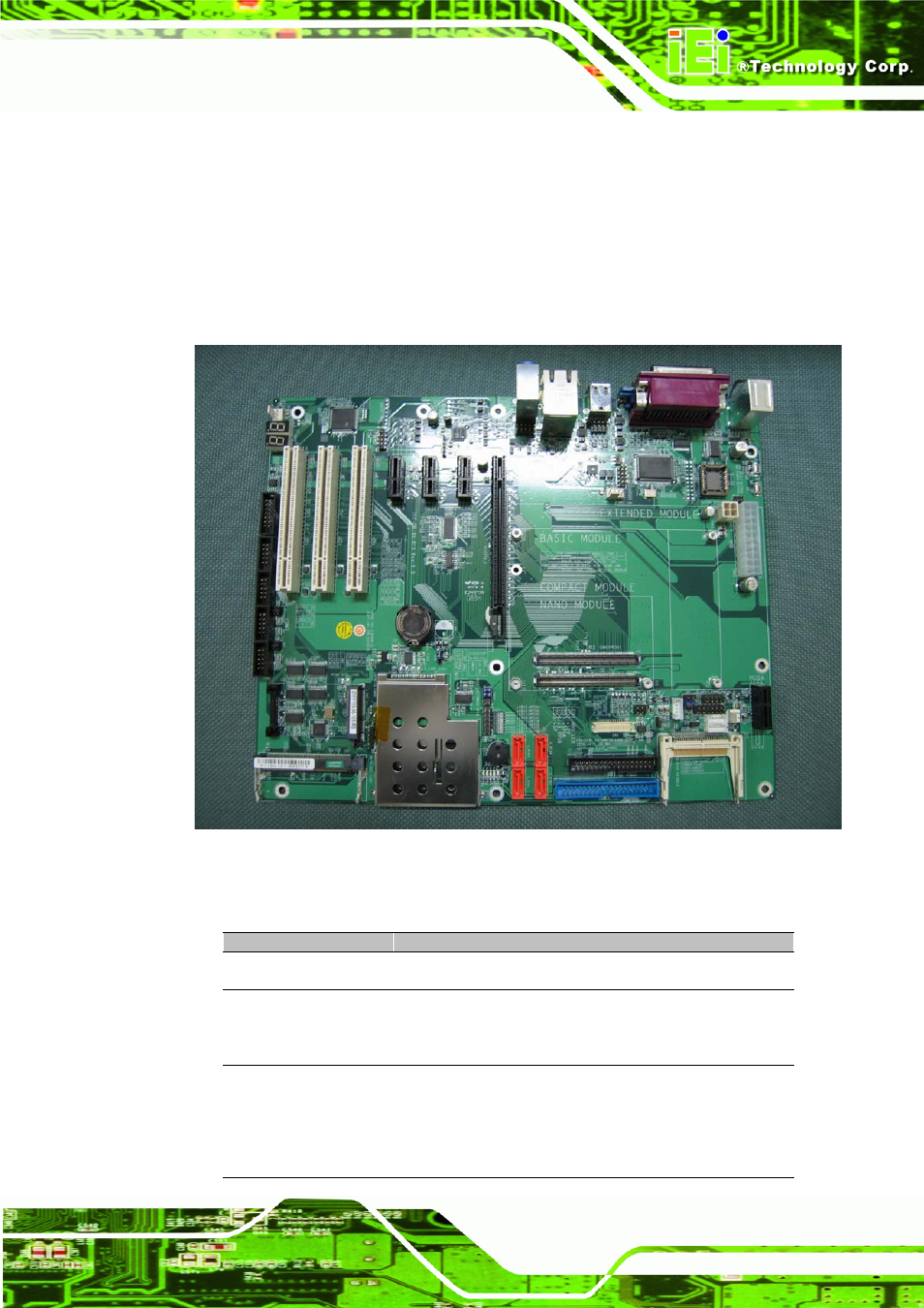

Figure 2-6: ICE-DB-9S-R10
Table 2-7: ICE-DB-9S-R10 Specification
Item Description
CPU module interface Supports COM Express Compact/Basic/Extended
modules using connector pin out Type 2
Audio
Realtek ALC888 7.1 channels HD audio codec
Front Audio by pin-header(Line in, Line out, Mic in)
SPDIF by pin-header
CD-IN by pin-header
MIO
1 x PCIe by 16 Slot
4 x PCIe by 1 Slot
3 x PCI Slot
1 x PCIe Mini card Slot
1 x Express Card Slot
1 x Mini PCI Card Slot
