Page 37
ICE Module
ICE Module
PEG SLOT or SDVO Device
TX+
TX-
RX+
RX-
AC Coupling Cap

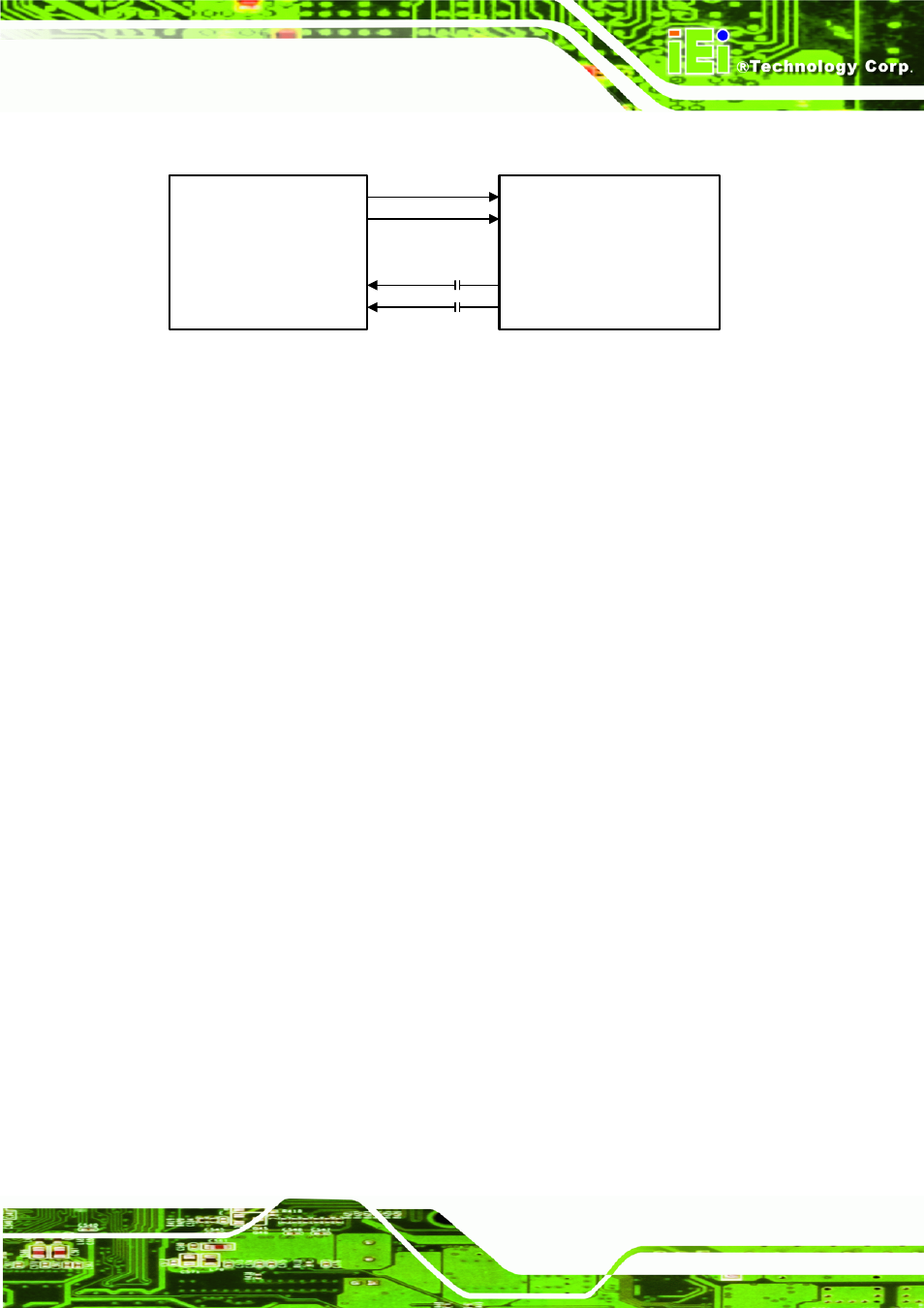

Figure 4-3: PEG Lane Connection Topology Example
4.1.6.3 Routing Notices
Each signal and its complement in a differential pair should be length
matched whenever possible on a segment-by-segment basis at the point
of discontinuity. Examples of segments might include breakout areas,
routes to connect vias, routes to connect an AC coupling capacitor, routes
to connect a connector, and so forth.
When trace length matching occurs, it should be made as close as
possible to the point where the length variation occurs, as shown in Figure
4-4. For example, length matching in a chipset breakout area or connector
pin field should occur within the first 125 mils (3.175 mm) of the structure
that causes the length mismatch.
When serpentining is needed to match lengths, the trace spacing should
not become greater than two times the original spacing. The length of the
increased spacing should not be greater than three times the trace width.
See Figure 4-4. In determining the overall length of a given signal in a
differential pair, use pad or pin edge-to-edge distances rather than the
total etch present, unless the amount of trace routing inside each pad is
identical. The amount of etch within a given pad is electrically part of the
pad itself. In other words, only the etch outside of the pad edge is relevant
to the overall length of a differential pair.
