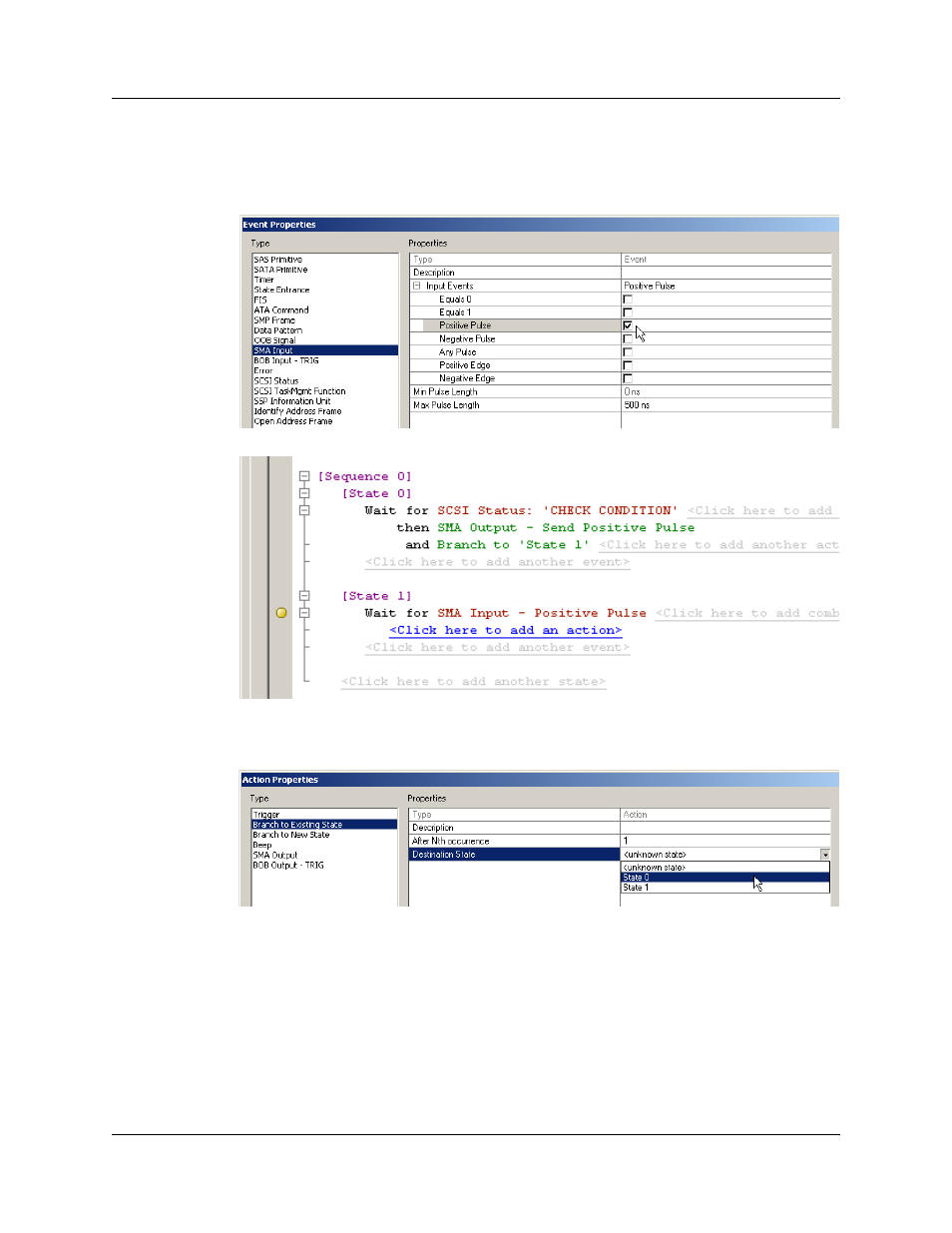

A new state, State 1, has automatically been added, and now we are ready to tell the
State 1 what to do when the external device is ready to process another SCSI "Check
Condition" status. So first click on "" (under State 1), and
select "SMA Input" and click on the checkbox next to "Positive Pulse", as follows:
Click OK, and the sequence now reads:
To complete State 1, click on "" and select "Branch to
Existing State", and then select State 0 from the drop-down list of available states, as
follows:
