Version 6.25 SASSuite User Manual
40
LeCroy Corporation

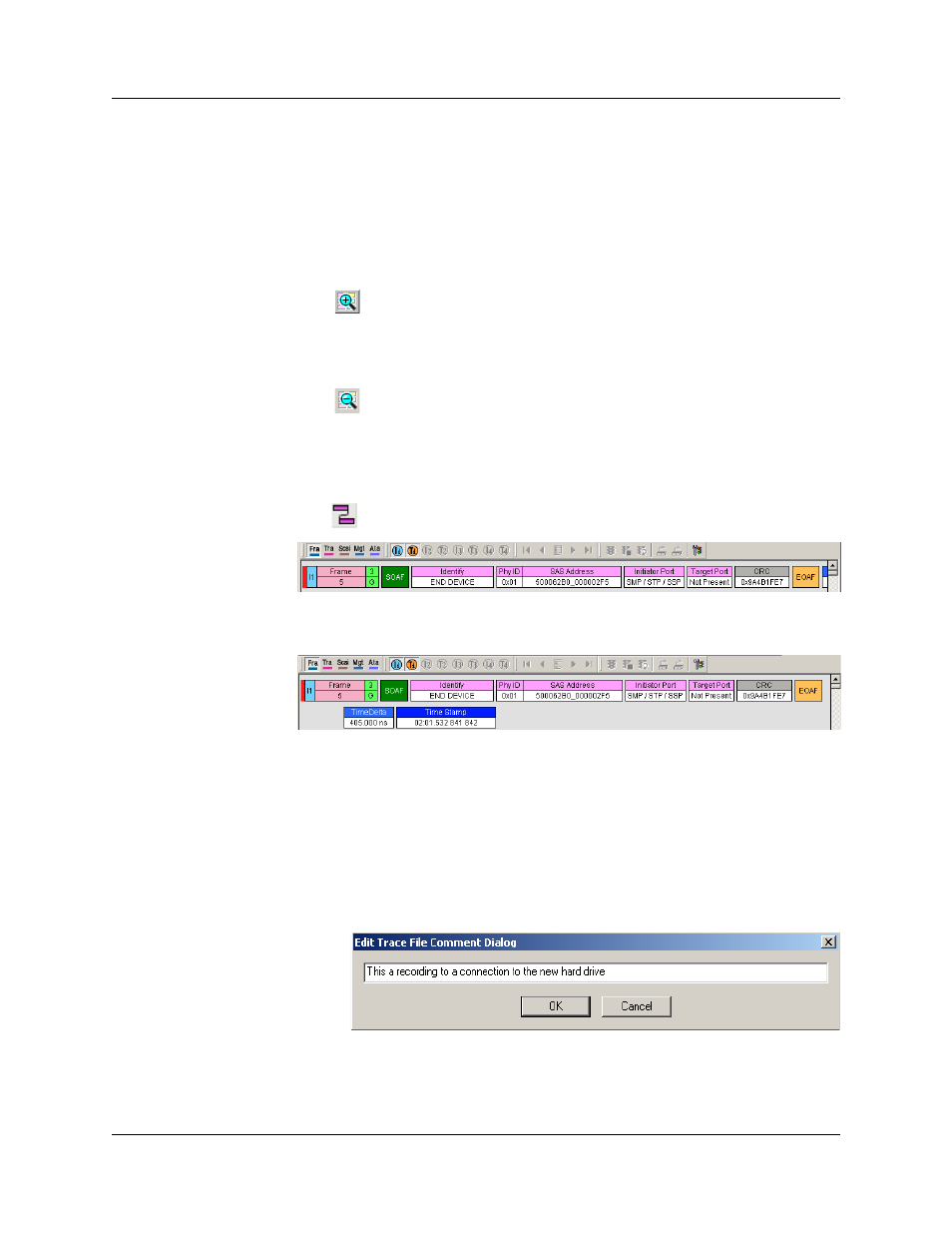

Navigation Tools
You can zoom in and out, and wrap the recording to fit within the screen by using the
following buttons:
Zoom In Increases the size of the displayed elements, allowing fewer (but larger) Frame fields per
screen.
Click on the Tool Bar.
Zoom Out Decreases the size of the displayed elements, allowing more (but smaller) Frame fields
per screen.
Click on the Tool Bar.
Wrap Adjusts the Trace View so that Frames fit onto the next line if they are longer than the size
of the window. Without Wrap, you can use the horizontal scroll bar to see the hidden part
of a Frame.
Click on the Tool Bar.
Adding Comments to the Recording
You can create, view, or edit the 100-character comment field associated with each data
file.
Step 1 From the File menu, select Edit Comment.
The Edit Trace Comment Dialog window appears.
Step 2 Create, view, or edit the comment.
Step 3 Click OK.
Trace with Wrap turned off. In this example, the Time Stamp extends
Trace with Wrap turned on. Entire Frame displays in window.
off the right edge of the screen.
